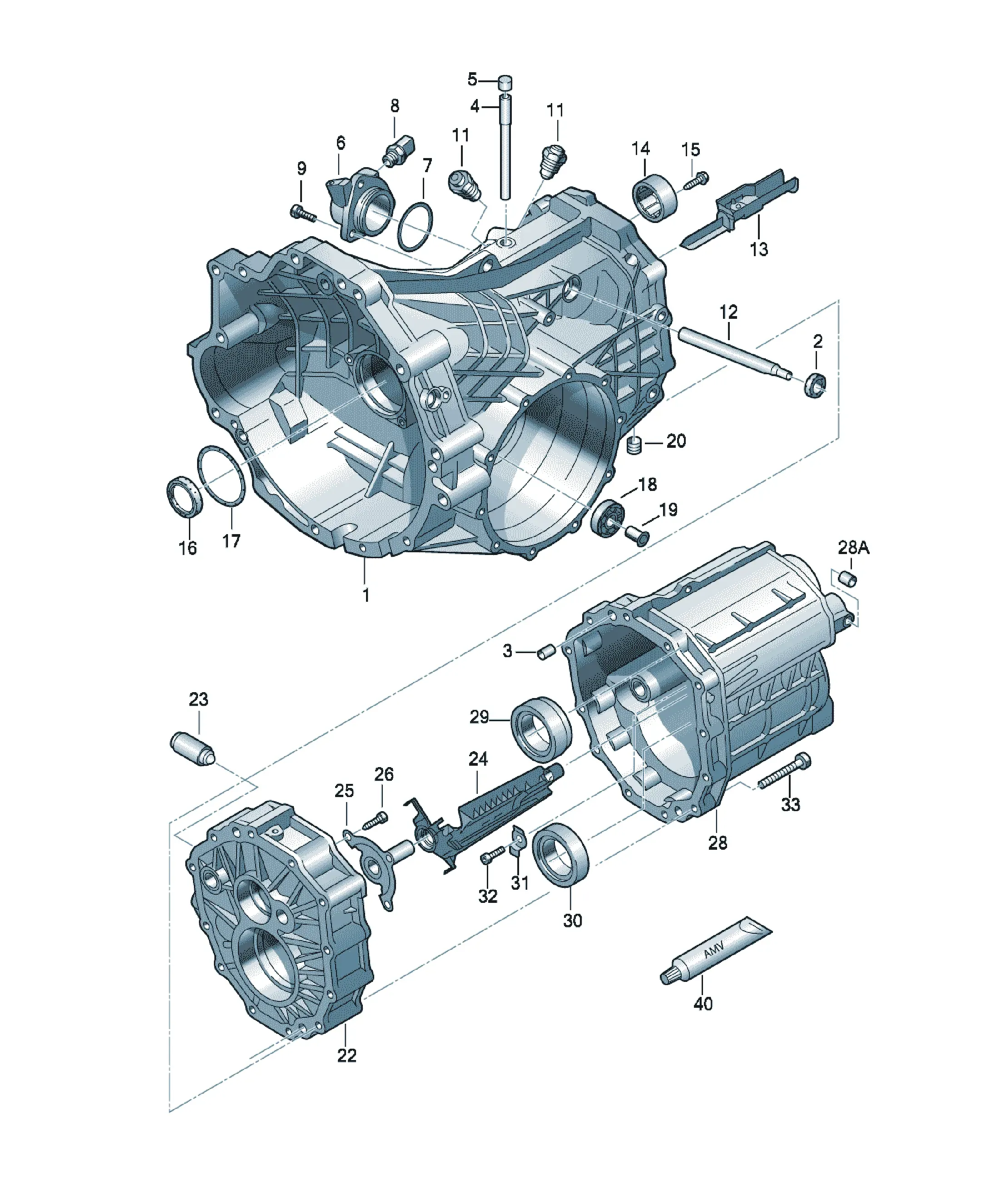

Transmission housing

[Name] [QTY]

Gear housing

G 01 10 7>> 1

Replacements: 01X301103S

[Name] [Note] [QTY]

Gear housing

also use: >>G 01 034

01X 301 242 D 1

G >> 29 09 7 1

Accompanying details: 01X301242D

Replacements: 01X301103Q

[Name] [QTY]

locking screw 2

[Name] [Note]

Selector shaft with sel. cyl.

see illustration: 311-090

[Name] [Note] [QTY]

oil drip tray 1./2.gear 1

[Name] [Note]

Needle bush

see illustration: 311-035

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X48 1

[Name] [QTY]

radial shaft seal 1

[Name] [Note]

O-ring

see illustration: 141-050

[Name] [QTY]

Magnet 1

[Name] [QTY]

bush 1

[Name] [Note] [QTY]

Shaft oil seal 16X24X6 1

[Name] [Note] [QTY]

sealing plug M22X1,5 1

[Name] [QTY]

Bearing housing 1

[Name] [QTY]

locking sleeve 4

[Name] [Note] [QTY]

oil drip tray 3.-6 GANG 1

[Name] [Note]

Support with reverse shaft

see illustration: 311-035

[Name] [Note]

Hex socket oval head collared

see illustration: 311-035

[Name] [Note] [QTY]

Gearbox cover

also use: 012 301 115 1

Accompanying details: 012301115

[Name] [Note] [QTY]

Bungs 8,15X10 1

[Name] [Note]

Mounting

see illustration: 311-035

[Name] [Note] [QTY]

Sleeve 12X30 4

[Name] [Note]

Mounting

see illustration: 311-040

[Name] [QTY]

Retaining plate 1

[Name] [Note] [QTY]

Hexagon socket head bolt M8X25 1

[Name] [Note] [QTY]

round hd. screw M8X94X80 12

[Name] [QTY]

Breather line 1

[Name] [Note] [QTY]

sealing grease for radial shaft oil seal 50G 1

Replacements: G 055128A1

[Name] [QTY]

Cap for venting the gearbox 1

[Name] [QTY]

Cover for selector shaft 1

[Name] [QTY]

O-ring 1

[Name] [Note] [QTY]

switch for reversing light M14X1,5 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M8X22 3
