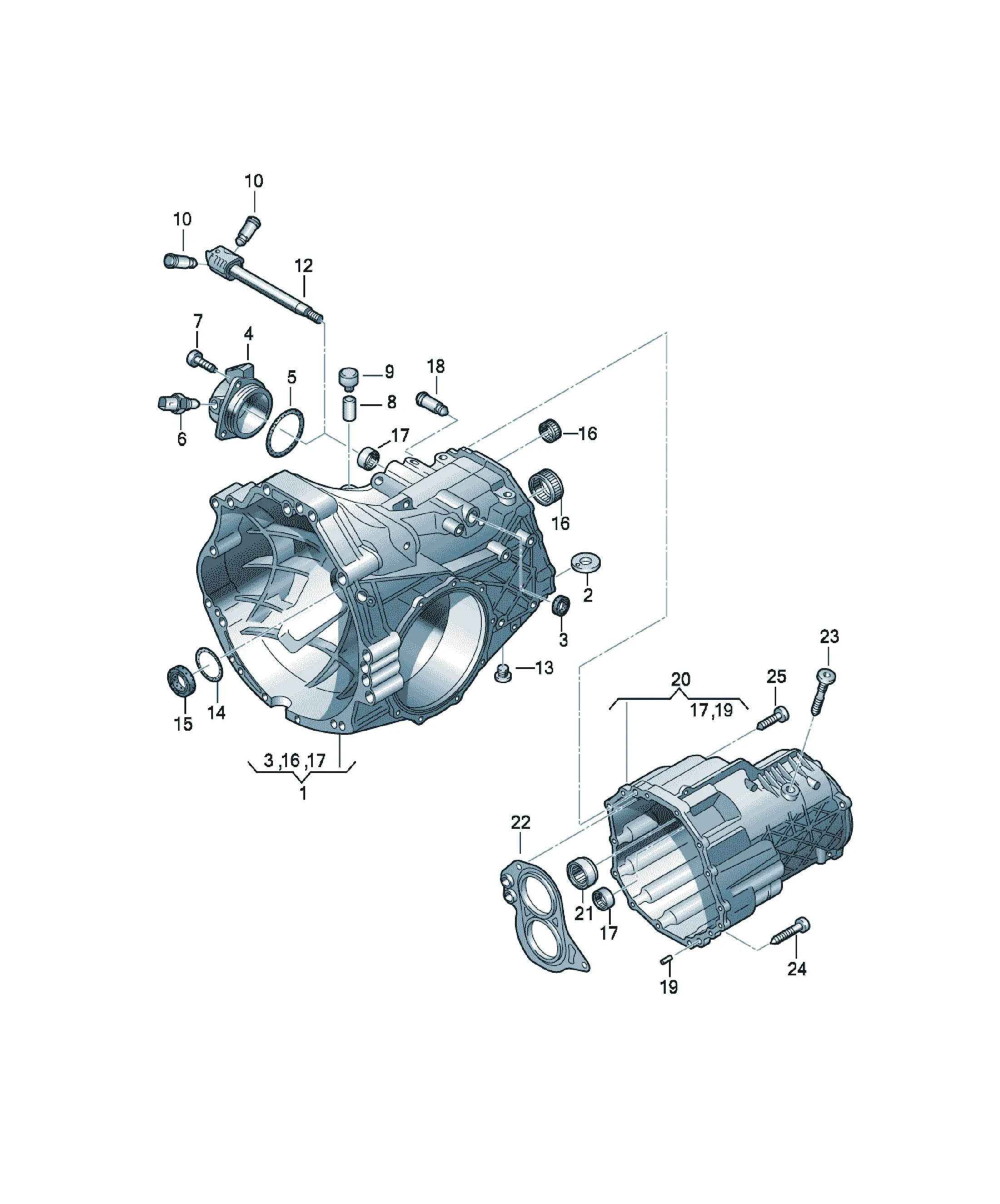

Gearbox housing

[Name] [Note] [QTY]

Sealing compound paste 100G X

to be used for item: 1,20

WWW.DREIBOND.DE TYP 1110

[Name] [Note] [QTY]

Cylinder pin 12X50 1

[Name] [Note] [QTY]

Gear housing 1

use if required: WHT 000 338 1

Accompanying details: WHT000338

[Name] [Note] [QTY]

locking sleeve silver 2

[Name] [Note]

Selector shaft with sel. cyl.

see illustration: 311-095

[Name] [Note] [QTY]

sealing plug M22X1,5 1

[Name] [Note]

O-ring

see illustration: 141-055

[Name] [QTY]

radial shaft seal 1

[Name] [Note] [QTY]

Needle bush 1

see illustration: 311-092

[Name] [Note] [QTY]

Ball sleeve 4

see illustration: 311-092

[Name] [Note] [QTY]

locking sleeve silver 2

[Name] [Note] [QTY]

Cylinder pin 10X23,5 1

[Name] [QTY]

Magnet 1

[Name] [QTY]

Gearbox cover 1

[Name] [Note] [QTY]

roller sleeve 1

see illustration: 311-045

[Name] [QTY]

Side member 1

[Name] [Note] [QTY]

Hex socket head locating bolt M8X56 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M8X48 13

[Name] [Note] [QTY]

Oval hexagon socket head bolt M8X30 2

[Name] [Note] [QTY]

Shaft oil seal 16X24X6 1

[Name] [QTY]

Cover for selector shaft 1

[Name] [QTY]

O-ring 1

[Name] [Note] [QTY]

switch for reversing light M14X1,5 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M8X22 3

[Name] [Note] [QTY]

Sleeve 12X30 1

[Name] [QTY]

Cap for venting the gearbox 1
