Seals

Cylinder head

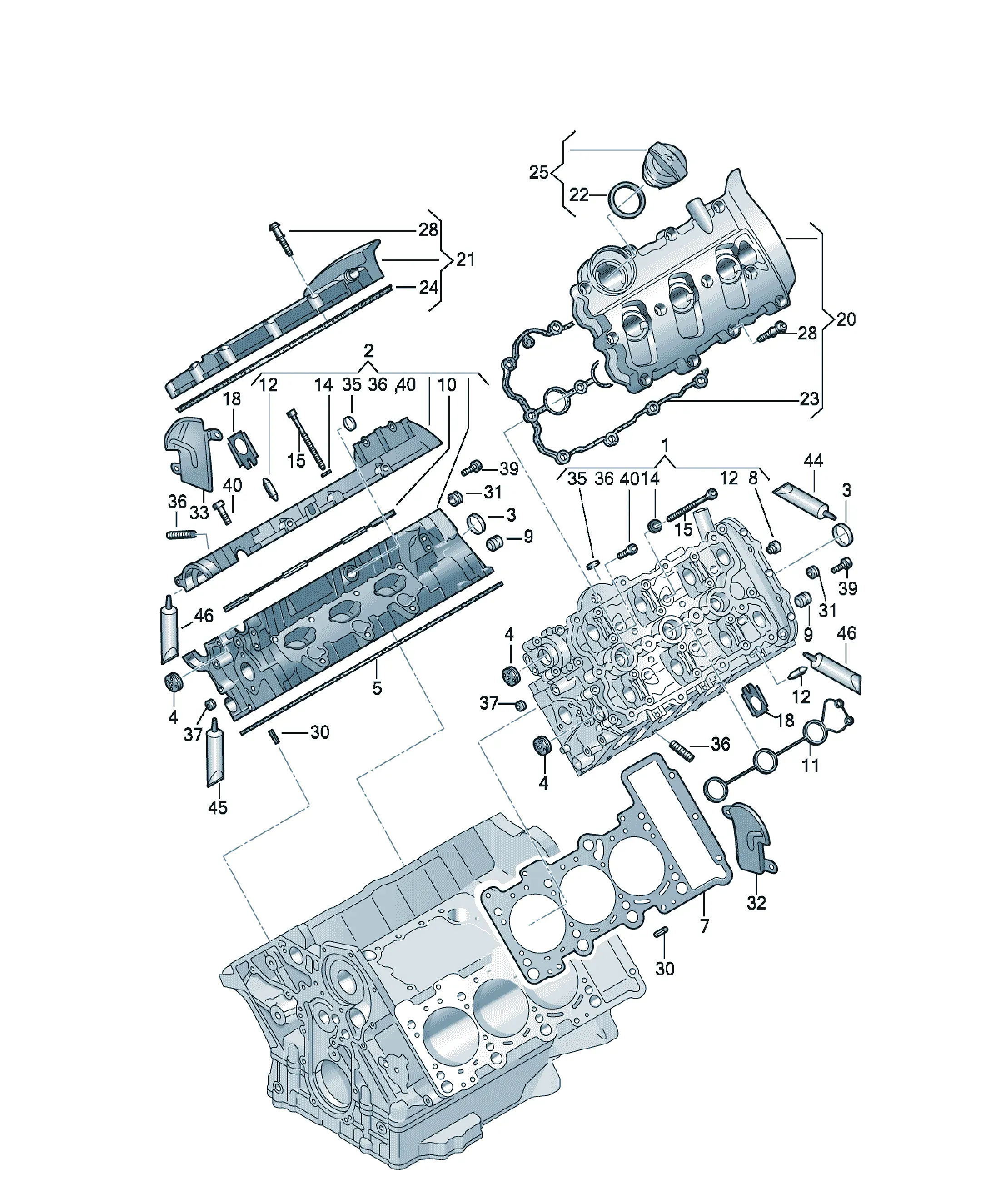

Assembly diagrams

7 diagrams

Parts

66 parts

Силиконовый клей-герметик
D176501A1 Offers

[Name] [Note] [QTY]
Silicon sealant 50ML 1
adhesives and sealing compound
Suspension lug
06E103390P Offers

[Name] [QTY]
Suspension lug 1
Camshaft
06E109102AD Offers

[Name] [Note] [QTY]
Camshaft Outlet 1
Camshaft
06E109101AK Offers

[Name] [Note] [QTY]
Camshaft Inlet 1
Camshaft
06E109102AE Offers

[Name] [Note] [QTY]
Camshaft Outlet 1
Camshaft
06E109101AL Offers

[Name] [Note] [QTY]
Camshaft Inlet 1
Винт с цилиндр. скруглённой головкой Torx
N10632003 Offers

[Name] [Note] [QTY]
Oval socket head bolt with hex drive M6X16 3
06E103067LX Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 4-6
F >> 4F-6-192 000* 1
Replacements: 06E103065EX; 06E109101AL; 06E109102AE
Old part
06E103067L Cylinder head with valves and camshaft 1
Cylinder head cast no.: 06E 103 373 D
06E103067KX Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 4-6
D >> - 29.05.2006 1
Replacements: 06E103065GX; 06E109101BB; 06E109102AL; 06E109345A; 06E109257J; N 91068201; 06E905163; N 10124306
Old part
06E103067K Cylinder head with valves and camshaft 1
Cylinder head cast no.: 06E 103 373 E
06E103067K Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 4-6
D >> - 29.05.2006 1
Replacements: 06E103065G; 06E109101BB; 06E109102AL; 06E109345A; 06E109257J; N 91068201; 06E905163; N 10124306
06E103903X Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 4-6
D - 29.05.2006>> 1
Replacements: 06E103065FX; 06E109101BB; 06E109102AL; 06E109257J; N 91068201; 06E109345A; 07L905163B; N 10451405; 101905621
Old part
06E103067AL Cylinder head with valves and camshaft 1
06E103903 X Cylinder head with valves and camshaft 1
Cylinder head cast no.: 06E 103 373 E
06E103067AL Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 4-6
D - 29.05.2006>> 1
Replacements: 06E103065F; 06E109101BB; 06E109102AL; 06E109257J; N 91068201; 06E109345A; 07L905163B; N 10451405; 101905621
06E103067AM Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 4-6
F 4F-6-192 001>>*4F-8-185 474* 1
Replacements: 06E103065E; 06E109101AL; 06E109102AE
06E103903AX Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 4-6
F 4F-6-192 001>>*4F-8-185 474* 1
Replacements: 06E103065EX; 06E109101AL; 06E109102AE
Old part
06E103067AM Cylinder head with valves and camshaft 1
06E103903AX Cylinder head with valves and camshaft 1
Cylinder head cast no.: 06E 103 373 D
06E103067L Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 4-6
F >> 4F-6-192 000* 1
Replacements: 06E103065E; 06E109101AL; 06E109102AE
06E103650A Offers

[Name] [QTY]
Seal
F 4F-5-038 001>>* 1
06E103649A Offers

[Name] [QTY]
Seal
F 4F-5-038 001>>* 1
06D103251 Offers

[Name] [QTY]
dowel pin 4
06D103377 Offers

[Name] [QTY]
Washer 16
06E103385 Offers

[Name] [QTY]
Torx socket head bolt 16
06E103411B Offers

[Name] [QTY]
partition 6
06E103904AX Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 1-3
F 4F-6-192 001>>*4F-8-185 474* 1
Replacements: 06E103066FX; 06E109101AK; 06E109102AD
Old part
06E103068AM Cylinder head with valves and camshaft 1
06E103904AX Cylinder head with valves and camshaft 1
Cylinder head cast no.: 06E 103 374 A
06E103068AM Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 1-3
F 4F-6-192 001>>*4F-8-185 474* 1
Replacements: 06E103066F; 06E109101AK; 06E109102AD
06E103068AL Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 1-3
D - 29.05.2006>> 1
Replacements: 06E103066G; 06E109101AM; 06E109102AK; 06E109345A; 06E109257J; N 91068201; 07L905163B; N 10451405; 101905621
06E103068K Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 1-3
D >> - 29.05.2006 1
Replacements: 06E103066H; 06E109101AM; 06E109102AK; 06E109345A; 06E109257J; N 91068201; 06E905163; N 10124306
06E103068L Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 1-3
F >> 4F-6-192 000* 1
Replacements: 06E103066F; 06E109101AK; 06E109102AD
06E103068LX Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 1-3
F >> 4F-6-192 000* 1
Replacements: 06E103066FX; 06E109101AK; 06E109102AD
Old part
06E103068L Cylinder head with valves and camshaft 1
Cylinder head cast no.: 06E 103 374 A
06E103066FX Offers

[Name] [Note] [QTY]
Complete cylinder head (without camshaft) cylinders 1-3
also use: 06E 109 101 AK 1
06E 109 102 AD 1
F 4F-6-192 001>>* 1
Accompanying details: 06E109101AK; 06E109102AD
Items supplied
06E103064BN Complete cylinder head (without camshaft) cylinders 1-3 1
06E103390AF Suspension lug 1
06E103390S Suspension lug 1
N 91048802 Screw with int. serrations M8X20 4
06E109417P roller rocker arm 12
06E109345A seal ring 2
06E109257J control valve 1
N 91068201 Hexagon socket flat head bolt M4X10 1
06B103113C End cap 26MM 1
WHT005739 Socket head bolt with inner multipoint head M10X170 8
022109423D equalizing element, hydraulic 12
N 10470705 round hd. screw M6X50 4
06E103066F Offers

[Name] [Note] [QTY]
Complete cylinder head (without camshaft) cylinders 1-3
also use: 06E 109 101 AK 1
06E 109 102 AD 1
F 4F-6-192 001>>* 1
Accompanying details: 06E109101AK; 06E109102AD
Replacements: 06E103066FX
Items supplied
06E103068CA Complete cylinder head (without camshaft) cylinders 1-3 1
06E103390AF Suspension lug 1
06E103390S Suspension lug 1
N 91048802 Screw with int. serrations M8X20 4
06E109417P roller rocker arm 12
06B103113C End cap 26MM 1
WHT005739 Socket head bolt with inner multipoint head M10X170 8
022109423D equalizing element, hydraulic 12
N 10470705 round hd. screw M6X50 4
06E103068KX Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 1-3
D >> - 29.05.2006 1
Replacements: 06E103066HX; 06E109101AM; 06E109102AK; 06E109345A; 06E109257J; N 91068201; 06E905163; N 10124306
Old part
06E103068K Cylinder head with valves and camshaft 1
Cylinder head cast no.: 06E 103 374 B
06E103904X Offers

[Name] [Note] [QTY]
Cylinder head with valves and camshaft cylinders 1-3
D - 29.05.2006>> 1
Replacements: 06E103066GX; 06E109101AM; 06E109102AK; 06E109345A; 06E109257J; N 91068201; 07L905163B; N 10451405; 101905621
Old part
06E103068AL Cylinder head with valves and camshaft 1
06E103904 X Cylinder head with valves and camshaft 1
Cylinder head cast no.: 06E 103 374 B
06E103471G Offers

[Name] [Note] [QTY]
cylinder head cover cylinders 4-6 1
06E103472L Offers

[Name] [Note] [QTY]
cylinder head cover cylinders 1-3 1
036115111B Offers

[Name] [QTY]
Seal 1
06E103483G Offers

[Name] [Note] [QTY]
Seal cylinders 4-6 1
06E103484G Offers

[Name] [Note] [QTY]
Seal cylinders 1-3 1
06C103485N Offers

[Name] [QTY]
End cap 1
06B103831J Offers

[Name] [QTY]
Hexagon socket flat head bolt with guide sleeve 24
036103113A Offers

[Name] [Note] [QTY]
End cap 36,6 2
055105277 Offers

[Name] [Note] [QTY]
spring pin 6,2X22 4
07L109291 Offers

[Name] [QTY]
Bungs 6
[Name] [Note]
Cover plate
see illustration: 253-010
Use item: 9
[Name] [Note]
Cover
see illustration: 253-010
Use item: 8
[Name] [Note]
Cover plate
see illustration: 253-010
Use item: 8
N0119017 Offers

[Name] [Note] [QTY]
End cap 20 2
N0145555 Offers

[Name] [Note] [QTY]
Threaded pin M8X44 18
N0294542 Offers

[Name] [Note] [QTY]
sealing plug M10X1 2
Replacements: N 10630302
N10470703 Offers

[Name] [Note] [QTY]
round hd. screw M6X50
F >> 4F-6-097 000* 7
N10470705 Offers

[Name] [Note] [QTY]
round hd. screw M6X50
F 4F-6-097 001>>* 7
06E103113A Offers

[Name] [Note] [QTY]
End cap 26MM 3
Replacements: 06B103113C
06E103113A Offers

[Name] [Note] [QTY]
End cap 26MM 2
Replacements: 06B103113C
N10554005 Offers

[Name] [Note] [QTY]
round hd. screw M6X35
F >> 4F-6-250 000 42
D000600A2 Offers

[Name] [Note] [QTY]
Locking fluid 18ML 1
Replacements: D 200005A2
D000600A2 Offers

[Name] [Note] [QTY]
Locking fluid 18ML 1
adhesives and sealing compound
Replacements: D 200005A2
AMV17400401 Offers

[Name] [Note] [QTY]
sealant 83ML X
Replacements: D 174003A2
AMV17400401 Offers

[Name] [Note] [QTY]
sealant 83ML X
Service fluid
Replacements: D 174003A2
D154103A1 Offers

[Name] [Note] [QTY]
sealant 100G X
D154103A1 Offers

[Name] [Note] [QTY]
sealant 100G X
Service fluid
06E103148P Offers

[Name] [Note] [QTY]
Cylinder head gasket cylinders 1-3 1
Replacements: 06E103148AT
06E103148AL Offers

[Name] [Note] [QTY]
Cylinder head gasket cylinders 1-3 1
only to be used for: 06E 103 011 DE
06E103148M Offers

[Name] [Note] [QTY]
Cylinder head gasket cylinders 1-3 1
Replacements: 06E103148AS
06E103149AL Offers

[Name] [Note] [QTY]
Cylinder head gasket cylinders 4-6 1
only to be used for: 06E 103 011 DE
06E103149M Offers

[Name] [Note] [QTY]
Cylinder head gasket cylinders 4-6 1
Replacements: 06E103149AS
06E103149P Offers

[Name] [Note] [QTY]
Cylinder head gasket cylinders 4-6 1
Replacements: 06E103149AT
06E103154C Offers

[Name] [QTY]
Water jet 1
Replacements: 06E103154D
06E103175B Offers

[Name] [QTY]
Non-return valve 4
Replacements: 06E103175C
