Seals

Oil pan

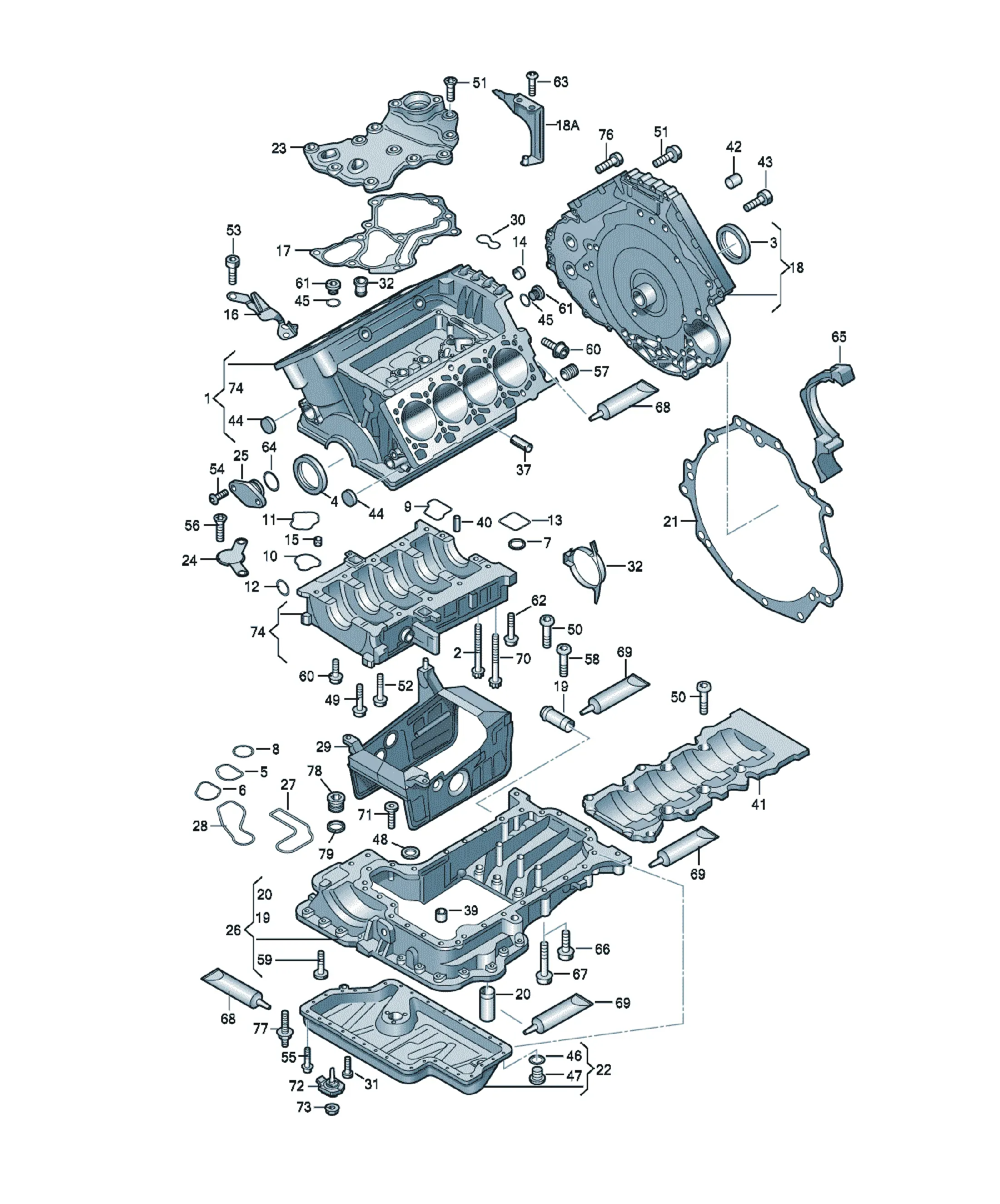

Assembly diagrams

7 diagrams

Parts

68 parts
  • Spark plug
    N10170201 Offers

    [Name] [QTY]

    threaded insert 4

  • 079103011FL Offers

    [Name] [Note] [QTY]

    Crankcase housing 1

    also use: 079 105 561 G 4

    079 105 591 G 4

    079 105 561 AJ 1

    In corresponding colour

    079 105 591 AJ 1

    In corresponding colour

    N 101 702 01 4

    Accompanying details: 079105561G; 079105591G; 079105561AJ; 079105591AJ; N 10170201

  • 079103121AM Offers

    [Name] [QTY]

    Seal 1

  • 079103121BK Offers

    [Name] [QTY]

    Seal 1

  • 07L103121D Offers

    [Name] [Note] [QTY]

    Seal 33X4 1

  • 079103121AT Offers

    [Name] [QTY]

    Seal 1

  • 022103139B Offers

    [Name] [Note] [QTY]

    dowel sleeve 16X13,5 1

  • 058103139 Offers

    [Name] [Note] [QTY]

    dowel sleeve 8,2X6,5 2

  • 07L103158A Offers

    [Name] [QTY]

    jet

    F >> 4F-7-155 000* 4

    Replacements: 07L103158G

  • 079103161J Offers

    [Name] [QTY]

    Seal 1

  • 079103171AH Offers

    [Name] [Note] [QTY]

    Sealing flange rear 1

  • [Name]

    Not for this model

  • 079103499P Offers

    [Name] [QTY]

    Pipe union 1

  • 079103039A Offers

    [Name] [Note] [QTY]

    Hexagon head bolt M10X1,5X125 10

  • 07L103499F Offers

    [Name] [QTY]

    Pipe union

    F >> 4F-8-082 000* 3

  • 079103602AT Offers

    [Name] [QTY]

    Engine oil sump lower part 1

  • 079103704E Offers

    [Name] [QTY]

    Cover 1

  • 079103648C Offers

    [Name] [QTY]

    Cover 2

  • [Name]

    Not for this model

  • 079103803BF Offers

    [Name] [QTY]

    oil sump-upper part 1

  • [Name] [Note]

    see illustration: 115-041

    Use item: 10

  • [Name] [Note]

    see illustration: 115-041

    Use item: 7

  • [Name]

    Not for this model

  • 079103051F Offers

    [Name] [QTY]

    Shaft oil seal 1

  • [Name] [Note]

    see illustration: 115-041

    Use item: 13

  • 057103665 Offers

    [Name] [QTY]

    Securing pin 3

  • 055105277 Offers

    [Name] [Note] [QTY]

    spring pin 6,2X22 4

  • 077115143D Offers

    [Name] [Note] [QTY]

    Centre sleeve 10,4X12X12 2

  • 079103051G Offers

    [Name] [QTY]

    Shaft oil seal 1

  • 077115143B Offers

    [Name] [Note] [QTY]

    Centre sleeve 6,15X18 3

  • 079115289C Offers

    [Name] [QTY]

    Insert 1

  • 022103139B Offers

    [Name] [Note] [QTY]

    dowel sleeve 16X13,5 1

  • N91068601 Offers

    [Name] [Note] [QTY]

    Socket head bolt with inner multipoint head M8X32 9

  • N0119085 Offers

    [Name] [Note] [QTY]

    End cap 28 2

  • N0138063 Offers

    [Name] [Note] [QTY]

    seal ring 10X14 2

  • N0138157 Offers

    [Name] [Note] [QTY]

    seal ring 14X20 1

  • N0160276 Offers

    [Name] [Note] [QTY]

    sealing plug M14X1,50 1

  • N0138272 Offers

    [Name] [Note] [QTY]

    seal ring 22X27 1

  • N10582103 Offers

    [Name] [Note] [QTY]

    oval head countersunk bolt with multi-point socket head M6X40 15

  • 079103121J Offers

    [Name] [QTY]

    Seal 1

  • N10124304 Offers

    [Name] [Note] [QTY]

    Oval hexagon socket head bolt M6X20 17

  • N10124306 Offers

    [Name] [Note] [QTY]

    Hexagon socket flat head bolt M6X20 18

  • N91089601 Offers

    [Name] [Note] [QTY]

    Hexagon socket flat head bolt M6X60 2

  • N10682101 Offers

    [Name] [Note] [QTY]

    Socket head bolt with inner multipoint head M6X15 12

  • N10196103 Offers

    [Name] [Note] [QTY]

    Oval socket head bolt with hex drive M6X18 4

  • N10340703 Offers

    [Name] [Note] [QTY]

    hexagon head bolt (combi) M6X20 29

  • N10456004 Offers

    [Name] [Note] [QTY]

    Hexagon socket head bolt, self-locking M6X12 4

  • N10682001 Offers

    [Name] [Note] [QTY]

    threaded pin M8X12

    F >> 4F-8-155 000* 4

  • N10037104 Offers

    [Name] [Note] [QTY]

    sealing plug M22X1,5 1

  • 079103121AA Offers

    [Name] [QTY]

    Seal 1

  • N10124306 Offers

    [Name] [Note] [QTY]

    Hexagon socket flat head bolt M6X20 18

  • N91119401 Offers

    [Name] [Note] [QTY]

    sealing plug M10X1X10 2

  • N91097501 Offers

    [Name] [Note] [QTY]

    Hexagon socket flat head bolt M6X85 2

  • N10451405 Offers

    [Name] [Note] [QTY]

    Oval hexagon socket head bolt M6X16 2

  • N90853802 Offers

    [Name] [Note] [QTY]

    Socket head bolt with inner multipoint head M7X20 24

  • N90853903 Offers

    [Name] [Note] [QTY]

    Socket head bolt with inner multipoint head M7X50 6

  • D176501A1 Offers

    [Name] [Note] [QTY]

    Silicon sealant 50ML X

  • D000600A2 Offers

    [Name] [Note] [QTY]

    Locking fluid 18ML X

    Replacements: D 200005A2

  • 079103121AC Offers

    [Name] [Note] [QTY]

    Seal 11,25X4 1

  • WHT002690 Offers

    [Name] [Note] [QTY]

    Hexagon head bolt M8X110 10

  • N10037104 Offers

    [Name] [Note] [QTY]

    sealing plug M22X1,5 1

  • [Name] [Note]

    see illustration: 919-080

    Use item: 1

  • [Name] [Note]

    see illustration: 919-080

    Use item: 2

  • [Name]

    Not for this model

  • N10470705 Offers

    [Name] [Note] [QTY]

    round hd. screw M6X50 X

  • N10156206 Offers

    [Name] [Note] [QTY]

    Oval hexagon socket head bolt M6X30 13

    to be used for item: 18

  • 079103121AD Offers

    [Name] [Note] [QTY]

    O-ring 24X2,SK 2

  • 079103121AL Offers

    [Name] [Note] [QTY]

    Seal 30X2,5 1
