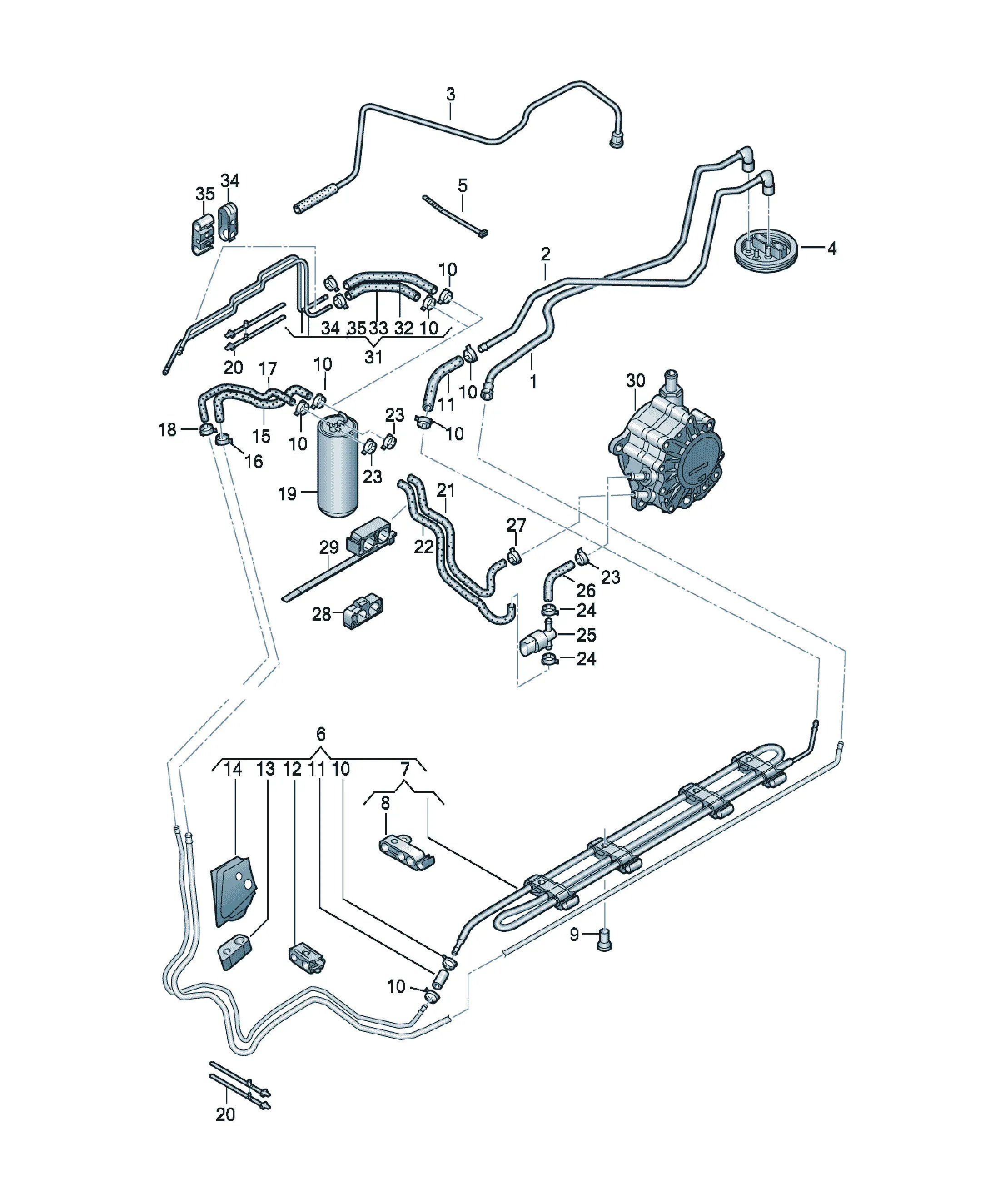

Fuel line

[Name] [Note] [QTY]

hose in coils of 5m 'order unit 5' 9,5X3 *

[Name] [Note] [Model info] [QTY]

Fuel line feed fr.wheel drv 1

[Name] [Note] [Model info] [QTY]

Fuel line feed quattro 1

[Name] [Note] [QTY]

Spring band clamp 16X12 X

[Name] [Note] [Model info] [QTY]

Spring band clamp 14X12 4-cylinder 1

[Name] [Note] [QTY]

shorten to: 60MM 2

[Name] [Note] [QTY]

Clip 2 point 4

[Name] [Note] [QTY]

Seal lower 1

[Name] [QTY]

Seal 1

[Name] [Note] [Model info] [QTY]

Fuel hose feed 4-cylinder 1

[Name] [Note] [Model info] [QTY]

Fuel hose feed 6-cylinder 1

[Name] [Note] [QTY]

Spring band clamp 19X12 1

[Name] [Note] [Model info] [QTY]

Fuel hose return 4-cylinder 1

[Name] [Note] [Model info] [QTY]

Fuel hose return 6-cylinder 1

[Name] [Note] [QTY]

Spring band clamp 14X12 1

[Name] [Note]

see illustration: 127-050

[Name] [Note] [Model info] [QTY]

Fuel line return quattro 1

[Name] [Note] [Model info] [QTY]

Fuel line return fr.wheel drv 1

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [Model info]

see illustration: 130-070 6-cylinder

Use item: 5

[Name] [Note] [Model info] [QTY]

Fuel hose feed 4-cylinder 1

[Name] [Note] [Model info] [QTY]

Fuel hose return 4-cylinder 1

[Name] [Note] [Model info] [QTY]

Spring band clamp 14X12 4-cylinder 1

[Name] [Note] [Model info] [QTY]

Spring band clamp 14X12 4-cylinder 1

[Name] [Note] [Model info]

Temperature sensor 6-cylinder

see illustration, item: 130-070,6

[Name] [Model info] [QTY]

Temperature sensor 4-cylinder 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

Possible single wire: 000 979 125 1,0 X

000 979 125 A 1,0 X

matching contact housing: 1J0 973 802

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

Grey

000 979 125 1,0 X

Possible single wire: 000 979 125 A 1,0 X

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

Possible single wire: 000 979 025 0,5 X

000 979 025 A 0,5 X

000 979 150 1,0 X

000 979 150 A 1,0 X

matching contact housing: 1J0 973 802

[Name] [Note] [Model info] [QTY]

Fuel hose return 4-cylinder 1

[Name] [Note] [Model info] [QTY]

Spring band clamp 16X12 4-cylinder 1

[Name] [Note] [Model info] [QTY]

Bracket 2 point 4-cylinder 1

[Name] [Note] [Model info] [QTY]

Securing clip 2 point 4-cylinder 1

[Name] [Note]

see illustration: 261-050

[Name] [Note] [Model info]

see illustration, item: 130-030,1 6-cylinder

[Name] [Note] [Model info]

see illustration, item: 145-010,1 4-cylinder

[Name] [Note] [Model info] [QTY]

1 set fuel pipes feed/return 4-cylinder 1

[Name] [Note] [Model info] [QTY]

Fuel hose feed 4-cylinder 1

[Name] [Note] [Model info] [QTY]

Fuel hose return 4-cylinder 1

[Name] [Model info] [QTY]

Protective profile 4-cylinder 2

[Name] [Model info] [QTY]

Securing clip 4-cylinder 2

[Name] [Note] [Model info]

see illustration: 919-030 fr.wheel drv

[Name] [Note] [Model info]

see illustration: 919-035 quattro

[Name] [Note] [QTY]

Cable ties 3,6X246 X

Replacements: N 10647801

[Name] [Note] [QTY]

1 set fuel pipes feed/return 1

for vehicles with fuel cooling

Items supplied

4F0203572E heat dissipator 1

4F0201449 Securing clip 4 point 4

4B0422379 Spring band clamp 16X12 2

4F0201543B Fuel hose 1

4F0201196C Seal 1

4F0201196E Seal 1

4F0201545P Fuel line feed 1

4F0201547J Fuel line return 1

4F0201190A Clip 2 point 3

[Name] [QTY]

heat dissipator 1

[Name] [Note] [QTY]

Securing clip 4 point 4

[Name] [QTY]

Cover cap 4
