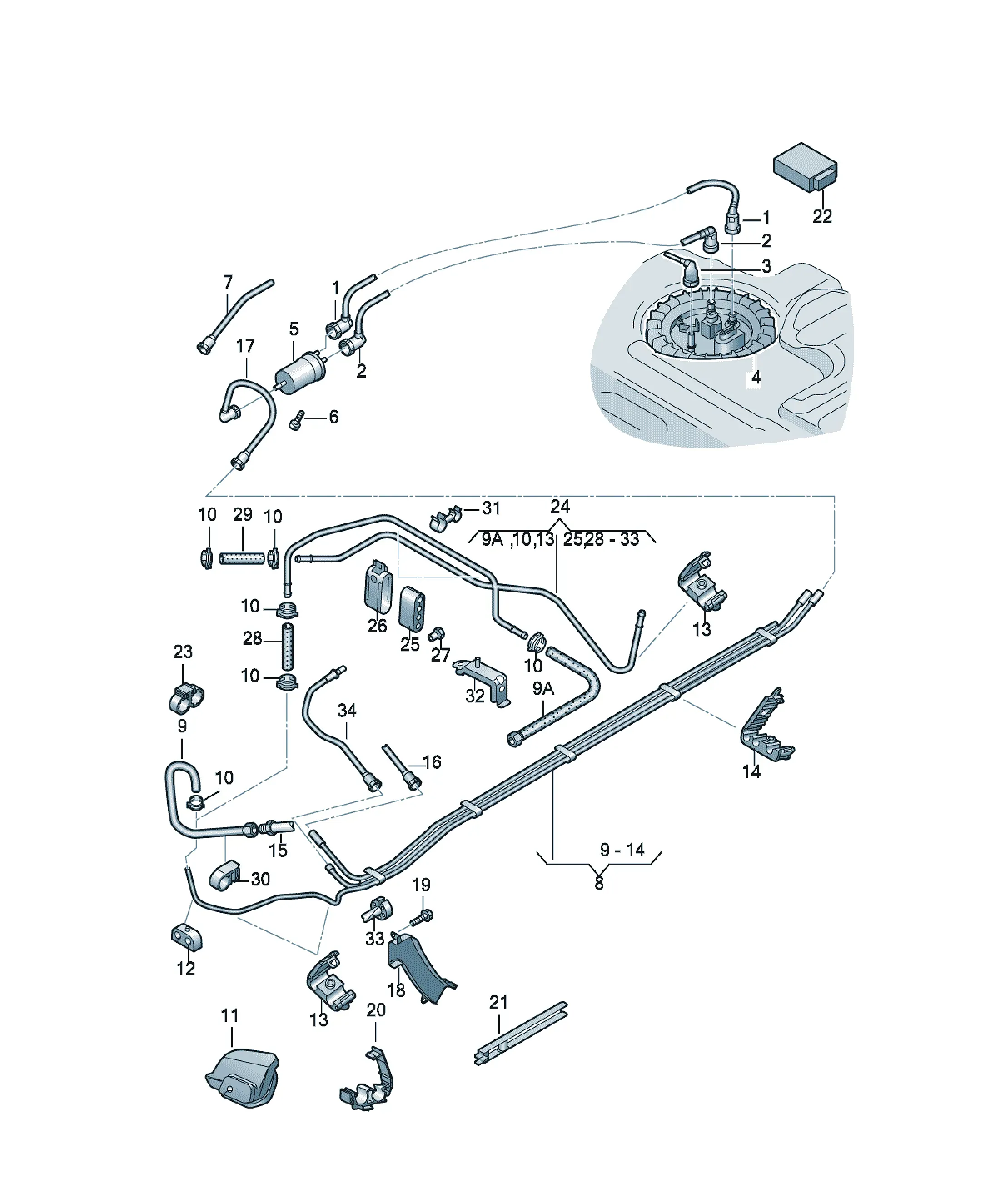

Fuel line

Fuel line

Assembly diagrams

7 diagrams

Parts

73 parts

Шланг в бухтах по 5 м 'заказ по 5'
N10303504 Offers

[Name] [Note] [QTY]
hose in coils of 5m 'order unit 5' 7,3X3,5 *
4F0201220D Offers

[Name] [Note] [Model info] [QTY]
Fuel line feed quattro 1
4F0201220A Offers

[Name] [Note] [Model info] [QTY]
Fuel line feed fr.wheel drv 1
N90986501 Offers

[Name] [Note] [QTY]
Spring band clamp 14,5X12 X
4F0201196G Offers

[Name] [QTY]
Seal 1
4F0201196H Offers

[Name] [Model info] [QTY]
Seal "ROK"+BPJ, 1
BYK
4F0201196L Offers

[Name] [Model info] [QTY]
Seal BXA 1
4F0201196D Offers

[Name] [QTY]
Seal 1
4F0201196J Offers

[Name] [Model info] [QTY]
Seal BXA 1
4F0201190G Offers

[Name] [Note] [Model info] [QTY]
Clip 2 point "ROK"+BPJ, 8
Protective profile BYK
4F0201190G Offers

[Name] [Note] [QTY]
Clip 2 point 3
Protective profile
8E0201190C Offers

[Name] [Note] [QTY]
Clip 3 point 5
Protective profile
Replacements: 8J0201190A
4F0201190D Offers

[Name] [Note] [QTY]
Clip 4 point 4
Protective profile
[Name] [Note] [Model info]
see illustration: 133-044 BDW
[Name] [Note] [Model info]
see illustration: 133-092 BXA
[Name] [Note] [Model info]
see illustration: 133-064 BBJ
[Name] [Note] [Model info]
see illustration: 133-073 BDX
[Name] [Note] [Model info]
see illustration: 133-074 AUK,BKH
[Name] [Note] [Model info]
see illustration: 133-084 BAT
[Name] [Note] [Model info]
see illustration: 133-024 BPJ,BYK
[Name] [Note] [Model info]
see illustration: 133-088 BVJ
[Name] [Note]
see illustration: 201-090
4F0201218E Offers

[Name] [QTY]
Fuel hose 1
4F0201192A Offers

[Name] [Model info] [QTY]
Cover BXA 1
4F0201192 Offers

[Name] [QTY]
Cover 1
N91140301 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X16 3
4F0201227A Offers

[Name] [Note] [Model info] [QTY]
Fuel line return fr.wheel drv 1
4F0201227D Offers

[Name] [Note] [Model info] [QTY]
Fuel line return quattro 1
8E0201449T Offers

[Name] [Note] [Model info] [QTY]
Bracket 2 point BPJ,BYK 1
4F0201449K Offers

[Name] [Note] [QTY]
Securing clip 2 point 1
4A0820199 Offers

[Name] [Note] [QTY]
double cable tie 7X213/140MM X
[Name] [Note] [Model info]
Control unit for fuel pump quattro
see illustration: 919-035
[Name] [Note] [Model info]
Control unit for fuel pump fr.wheel drv
see illustration: 919-030
8Z0130722 Offers

[Name] [QTY]
protective ring 2
4F0201528E Offers

[Name] [Model info] [QTY]
Fuel line with breather pipe BPJ 1
4F0201528K Offers

[Name] [Model info] [QTY]
Fuel line with breather pipe "ROK"+BPJ, 1
BYK
4F0201528G Offers

[Name] [Model info] [QTY]
Fuel line with breather pipe BXA 1
4D0201245E Offers

[Name] [Model info] [QTY]
Protective profile BPJ,BYK 2
4D0201449D Offers

[Name] [Model info] [QTY]
Securing clip BPJ,BYK 2
4E0201834 Offers

[Name] [Model info] [QTY]
Cover cap BPJ,BYK 2
[Name] [Note] [Model info] [QTY]
shorten to: 55MM BPJ 1
[Name] [Note] [Model info] [QTY]
shorten to: 75MM BXA 1
[Name] [Note] [Model info] [QTY]
shorten to: 55MM "ROK"+BYK 2
[Name] [Note] [Model info]
Activated charcoal container BXA
see illustration: 201-090
4F0201994AG Offers

[Name] [Note] [Model info] [QTY]
Reducing hose 7,5X9,5MM BPJ,BYK 1
[Name] [Note]
Fuel line
for vehicles with auxiliary heater
see illustration: 261-050
4F0201449G Offers

[Name] [Note] [Model info] [QTY]
Securing clip 2 point BDW,AUK,BVJ, 1
Cable ties BKH,BDX
N10452502 Offers

[Name] [Note] [Model info] [QTY]
Clip 8X9,5 BXA 1
4F0201687A Offers

[Name] [Model info] [QTY]
Bracket BXA 1
1J0611853 Offers

[Name] [Model info] [QTY]
Bracket BXA 1
for vehicles with auxiliary heater
4F0201994AL Offers

[Name] [Model info] [QTY]
Breather line BXA 1
[Name] [Note] [Model info]
Fuel delivery unit and sender for fuel gauge fr.wheel drv
see illustration: 919-030
[Name] [Note] [Model info]
Fuel delivery unit and sender for fuel gauge quattro
see illustration: 919-035
4F0201511D Offers

[Name] [Model info] [QTY]
Fuel filter with pressure regulator PR:1A1 1
4F0201511E Offers

[Name] [Model info] [QTY]
Fuel filter with pressure regulator PR:1A2 1
N10285402 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt M6X15 1
[Name] [Note] [Model info]
Breather line fr.wheel drv
see illustration: 201-000
[Name] [Note] [Model info]
Breather line quattro
see illustration: 201-010
4F0201544AJ Offers

[Name] [Note] [Model info] [QTY]
Fuel line with breather pipe feed BAT,BPJ,BVJ, 1
BDX
Replacements: 4F0201544BH
4F0201544AR Offers

[Name] [Note] [Model info] [QTY]
Fuel line with breather pipe feed BXA 1
for vehicles with auxiliary heater
4F0201544AD Offers

[Name] [Note] [Model info] [QTY]
Fuel line with breather pipe feed "ROK"+ 1
BKH
Replacements: 4F0201544BG
4F0201544AL Offers

[Name] [Note] [Model info] [QTY]
Fuel line with breather pipe feed "ROK"+BPJ, 1
BYK
Replacements: 4F0201544BJ
4F0201544AS Offers

[Name] [Note] [Model info] [QTY]
Fuel line with breather pipe feed BXA 1
4F0201544AG Offers

[Name] [Note] [Model info] [QTY]
Fuel line with breather pipe feed AUK,BDW 1
Replacements: 4F0201544BF
4F0201544AH Offers

[Name] [Note] [Model info] [QTY]
Fuel line with breather pipe feed BBJ 1
4F0201215AF Offers

[Name] [Note] [Model info] [QTY]
Fuel hose feed BDX 1
Replacements: 4F0201215AQ
4F0201215Q Offers

[Name] [Note] [Model info] [QTY]
Fuel hose feed BAT 1
4F0201215T Offers

[Name] [Note] [Model info] [QTY]
Fuel hose feed BVJ 1
4F0201215L Offers

[Name] [Note] [Model info] [QTY]
Fuel hose feed BDW 1
4F0201215L Offers

[Name] [Note] [Model info] [QTY]
Fuel hose feed AUK,BKH 1
4F0201215K Offers

[Name] [Note] [Model info] [QTY]
Fuel hose feed BBJ 1
8E0201215AA Offers

[Name] [Note] [Model info] [QTY]
Fuel line feed BPJ,BYK 1
4F0201215S Offers

[Name] [Note] [Model info] [QTY]
Fuel hose feed BXA 1
