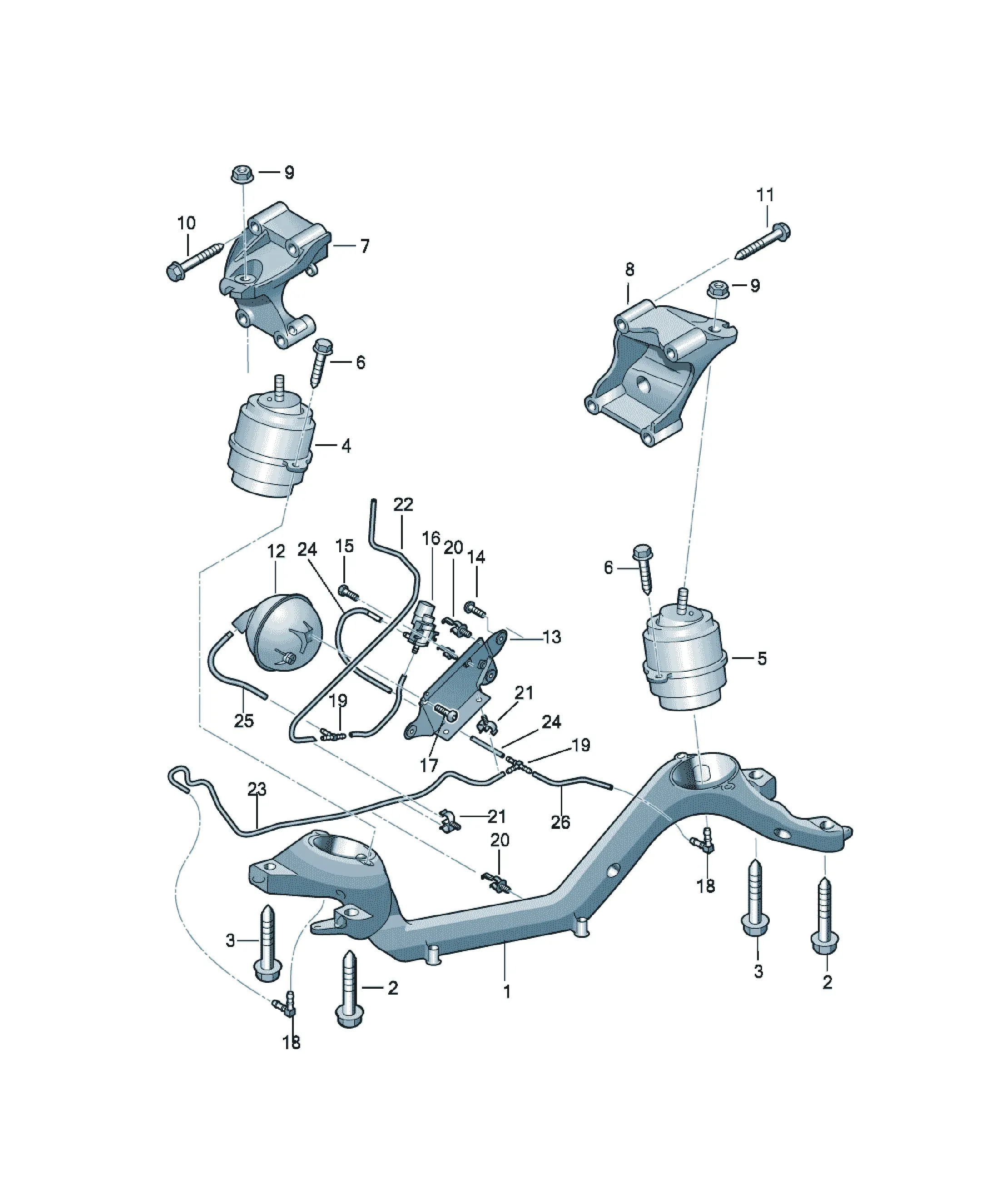

Engine vacuum system

[Name] [Note] [QTY]

hose in coils of 5m 'order unit 5' 3,5X2 *

[Name] [QTY]

Engine brackets 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M10X32 4

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M10X32 4

[Name] [Model info] [QTY]

Damper AJM 1

[Name] [QTY]

Retaining plate 1

[Name] [Note] [QTY]

Round-head screw with inner hexagon socket head M6X20 3

[Name] [Note] [QTY]

Hexagon bolt M5X12 2

[Name] [QTY]

Solenoid valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

Possible single wire: 000 979 133 X

000 979 133 A X

000 979 225 X

000 979 225 A X

matching contact housing: 8D0 973 822

[Name] [Note] [QTY]

Hexagon socket oval head bolt 4,8X13 2

[Name] [Note] [Model info] [QTY]

Elbow fitting 4MM 2H 2

[Name] [Note] [QTY]

t-piece 4-4-4 2

[Name] [Note] [QTY]

hexagon head bolt (combi) M14X1,5X100 2

[Name] [QTY]

Clip 8

[Name] [QTY]

Double clip 2

[Name] [Note] [QTY]

shorten to: 500MM 1

[Name] [Note] [QTY]

shorten to: 770MM 1

[Name] [Note] [QTY]

shorten to: 170MM 2

[Name] [Note]

shorten to: 150MM

[Name] [Note]

shorten to: 90MM

[Name] [Note] [QTY]

bolt,hex.hd.with shoul.(combi) M14X1,5X150 2

[Name] [QTY]

engine mounting 1

[Name] [QTY]

engine mounting 1

[Name] [Note] [QTY]

bolt, hex. hd. with shoulder, self-locking M10X55 4

[Name] [Note] [QTY]

Engine support left 1

[Name] [Note] [QTY]

Engine support right 1

[Name] [Note] [QTY]

Hexagon collar nut M12X1,5 2
