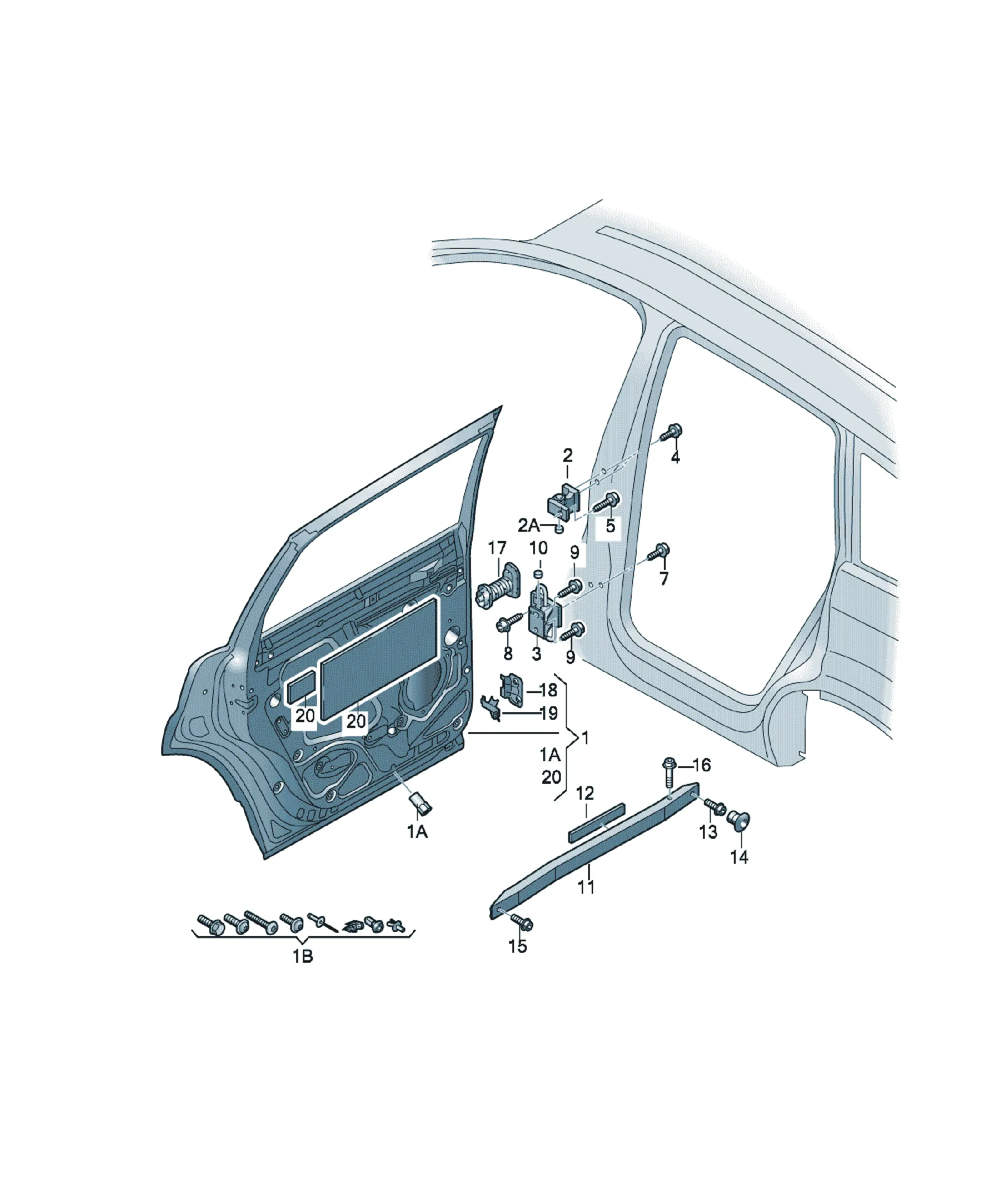

Door

[Name] [Note] [QTY]

Door left 1

also use: 4L0 839 911 1

use if required: 7N0 827 417 1

(5AP)

Accompanying details: 4L0839911; 7N0827417 5AP

[Name] [Note] [QTY]

Door right 1

also use: 4L0 839 912 1

use if required: 7N0 827 417 1

(5AP)

Accompanying details: 4L0839912; 7N0827417 5AP

[Name] [Note] [QTY]

Cover cap lower 2

Hinge pin

[Name] [Note] [QTY]

side reinforcement left a. right 2

[Name] [Note] [QTY]

Insulation strip (self-adhesive) 500X20X12 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X20 2

[Name]

Not for this model

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M8X20 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X50 2

[Name] [Note]

Bellows

see illustration: 972-037

[Name] [Note] [QTY]

Threaded plate left lower 1

also use: 4L0 833 133 1

Accompanying details: 4L0833133

[Name] [Note] [QTY]

Threaded plate right lower 1

also use: 4L0 833 134 1

Accompanying details: 4L0833134

[Name] [Note] [QTY]

Retaining plate left lower 1

also use: 8E0 831 445 E 1

Accompanying details: 8E0831445E

[Name] [Note] [QTY]

Retaining plate right lower 1

also use: 8E0 831 446 E 1

Accompanying details: 8E0831446E

[Name] [Note] [QTY]

rivetted cap nut M5/0,5-3 8

door panel

(for repairs only)

[Name] [QTY]

1 set of attachment parts for door 1

repair set

WHT000042A Hex socket head collared bolt M8X36 1

8E0837453A Hexalobular flange screw M8X27 2

N 90403004 Cover cap 13X14 1

8L3837947 Cover cap lower 1

Hinge pin

N 91133101 Socket head bolt with inner multipoint head M8X20 1

N 91128801 Socket head bolt with inner multipoint head (Kombi) M8X20 1

N 10682501 Socket head bolt with inner multipoint head M8X50 1

7L6868307 Spreader rivet 5,8X10,8 3

4L0837995C Clip 2

Window aperture seal

N 90963202 fillister hd. bolt 5X12 1

N 90800503 Oval head screw w/ internal serration (Combi), self-lockin M8X14 2

N 90488001 hex. nut with washer M6 4

8Z0837691C Hexagon socket head panel bolt 5X22 3

N 90829803 Hexagon socket head panel bolt 5X14,5 2

8P0837111B Bungs 1

4L0837111 Cover cap rear 1

357971908 Bungs 60 1

[Name] [Note] [QTY]

Door hinge left upper 1

[Name] [Note] [QTY]

Door hinge right upper 1

[Name] [Note] [QTY]

sound absorber (self-adhesive) 'order unit 6' 550X250X2 2

center

[Name] [Note] [QTY]

Insulation strip (self-adhesive) 1050X142 2

upper

Replacements: 4L0837818D

[Name] [Note] [QTY]

Cover cap 13X14 2

Door hinge upper

[Name] [Note] [QTY]

Door hinge left lower 1

Replacements: 4L0833411B

[Name] [Note] [QTY]

Door hinge right lower 1

Replacements: 4L0833412B

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X22 4

[Name] [Note] [QTY]

Hex socket head collared bolt M8X36 2

[Name] [Note] [QTY]

Hexagon bolt M8X30 2

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X25 2

[Name] [Note] [QTY]

Hexalobular flange screw M8X27 4
