Catalytic converter

Exhaust pipe with catalyst

Assembly diagrams

7 diagrams

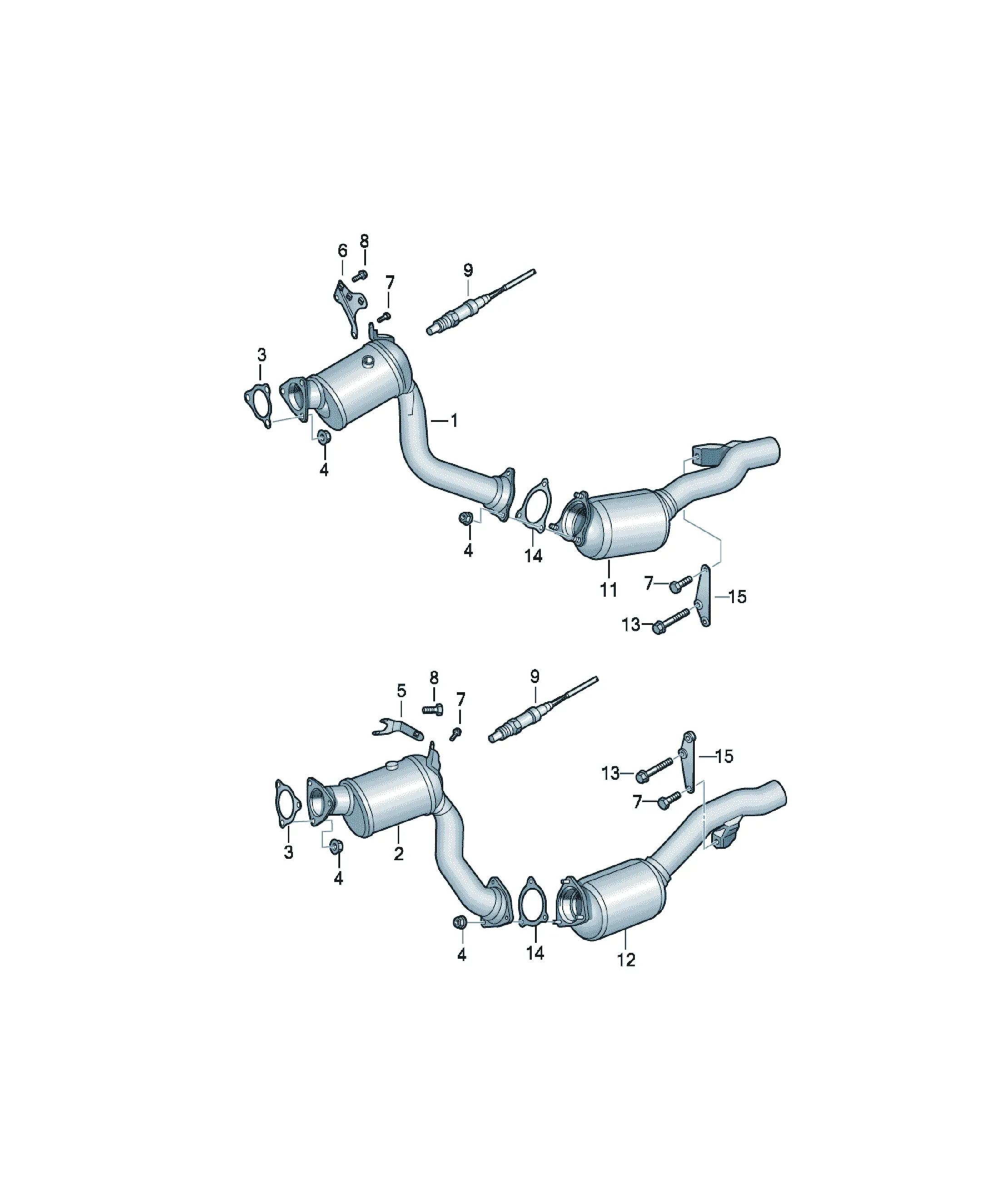

Exhaust pipe with catalyst diagram

Parts

19 parts

7L8254350SX Offers

[Name] [Note] [QTY]
Exhaust pipe with catalyst right 1
7P0253209G Offers

[Name] [Note] [QTY]
Front silencer right 1
D - 05.11.2012>>
7P0253209A Offers

[Name] [Note] [QTY]
Front silencer right 1
D >> - 05.11.2012
Replacements: 7P0253209G
7P0253209 Offers

[Name] [Note] [QTY]
Front silencer left 1
D >> - 05.11.2012
Replacements: 7P0253209F
7P0253209F Offers

[Name] [Note] [QTY]
Front silencer left 1
D - 05.11.2012>>
N10570302 Offers

[Name] [Note] [QTY]
Hex collared bolt M8X40 4
7P0253115 Offers

[Name] [QTY]
Seal 2
7P0253047D Offers

[Name] [QTY]
Support 1
7L8254301QX Offers

[Name] [Note] [QTY]
Exhaust pipe with catalyst left 1
8K0253115A Offers

[Name] [QTY]
Seal 2
N91130801 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M8 12
7L8253047H Offers

[Name] [QTY]
Support 1
7L8253047G Offers

[Name] [QTY]
Support 1
N10653102 Offers

[Name] [Note] [QTY]
Hexagon bolt M8X20 4
D >> - 02.04.2012
N90921002 Offers

[Name] [Note] [QTY]
Hexagon bolt M8X22 2
D - 02.04.2012>>
to be used for item: 7
N10653102 Offers

[Name] [Note] [QTY]
Hexagon bolt M8X20 2
D - 02.04.2012>>
to be used for item: 6
[Name] [Note]
12-point head bolt right
see illustration: 300-088
N91108701 Offers

[Name] [Note] [QTY]
Hexagon collared bolt with multi-point socket head (duo) M6X25 3
left
[Name] [Note]
Lambda probe
see illustration: 906-010
