Catalytic converter

Exhaust pipe with catalyst

Assembly diagrams

7 diagrams

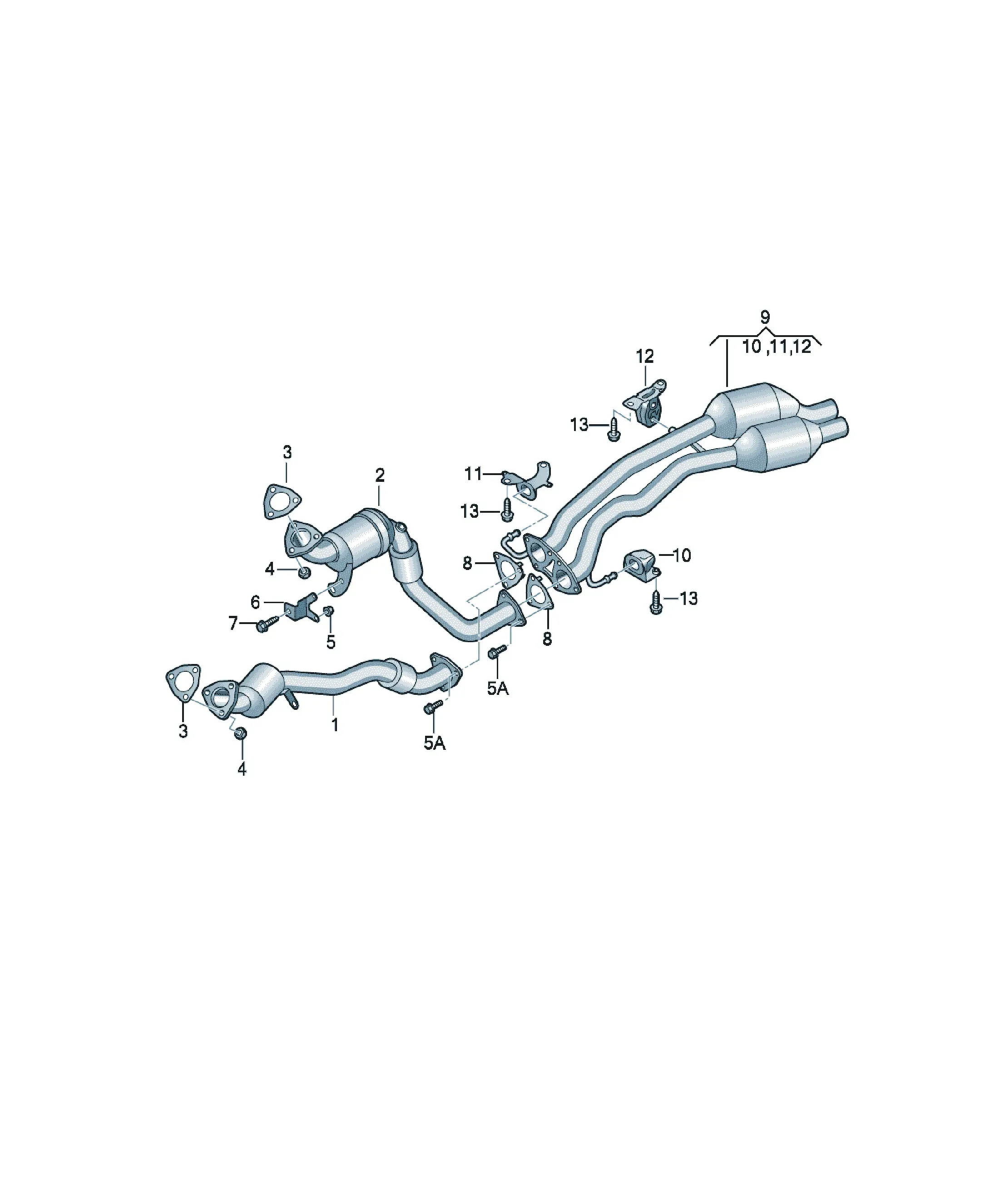

Exhaust pipe with catalyst diagram

Parts

18 parts

7L6254301RX Offers

[Name] [Note] [Model info] [QTY]
Exhaust pipe with pre-catalyst cylinders 1-3 PR:7GB 1
7L0254301FX Offers

[Name] [Note] [Model info] [QTY]
Exhaust pipe with pre-catalyst cylinders 1-3 PR:0GU,0GV, 1
0GG,7MH
7L0254301HX Offers

[Name] [Note] [Model info] [QTY]
Exhaust pipe with pre-catalyst cylinders 1-3 PR:7GA,7MA 1
7L0253144B Offers

[Name] [QTY]
Bracket 1
7L0253144 Offers

[Name] [QTY]
Bracket 1
7L8253144B Offers

[Name] [QTY]
Bracket 1
N90879702 Offers

[Name] [Note] [QTY]
Hexagon bolt M8X25 6
Replacements: N 90921002
7L0254301JX Offers

[Name] [Note] [Model info] [QTY]
Exhaust pipe with pre-catalyst cylinders 4-6 PR:7GA,7MA 1
7L6254301SX Offers

[Name] [Note] [Model info] [QTY]
Exhaust pipe with pre-catalyst cylinders 4-6 PR:7GB 1
7L0254301GX Offers

[Name] [Note] [Model info] [QTY]
Exhaust pipe with pre-catalyst cylinders 4-6 PR:0GU,0GV, 1
0GG,7MH
7L6253115E Offers

[Name] [QTY]
Seal 2
N10209007 Offers

[Name] [Note] [QTY]
hexagon nut, self-locking M10 6
N91130801 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M8 2
N10128110 Offers

[Name] [Note] [QTY]
Hexagon bolt M8X30 6
7L0253047F Offers

[Name] [QTY]
Support 1
N0195306 Offers

[Name] [Note] [QTY]
bolt, hex. hd. with shoulder, self-locking M8X25 2
7L6253115F Offers

[Name] [QTY]
Seal 2
7L8254400PX Offers

[Name]
Catalytic converter
