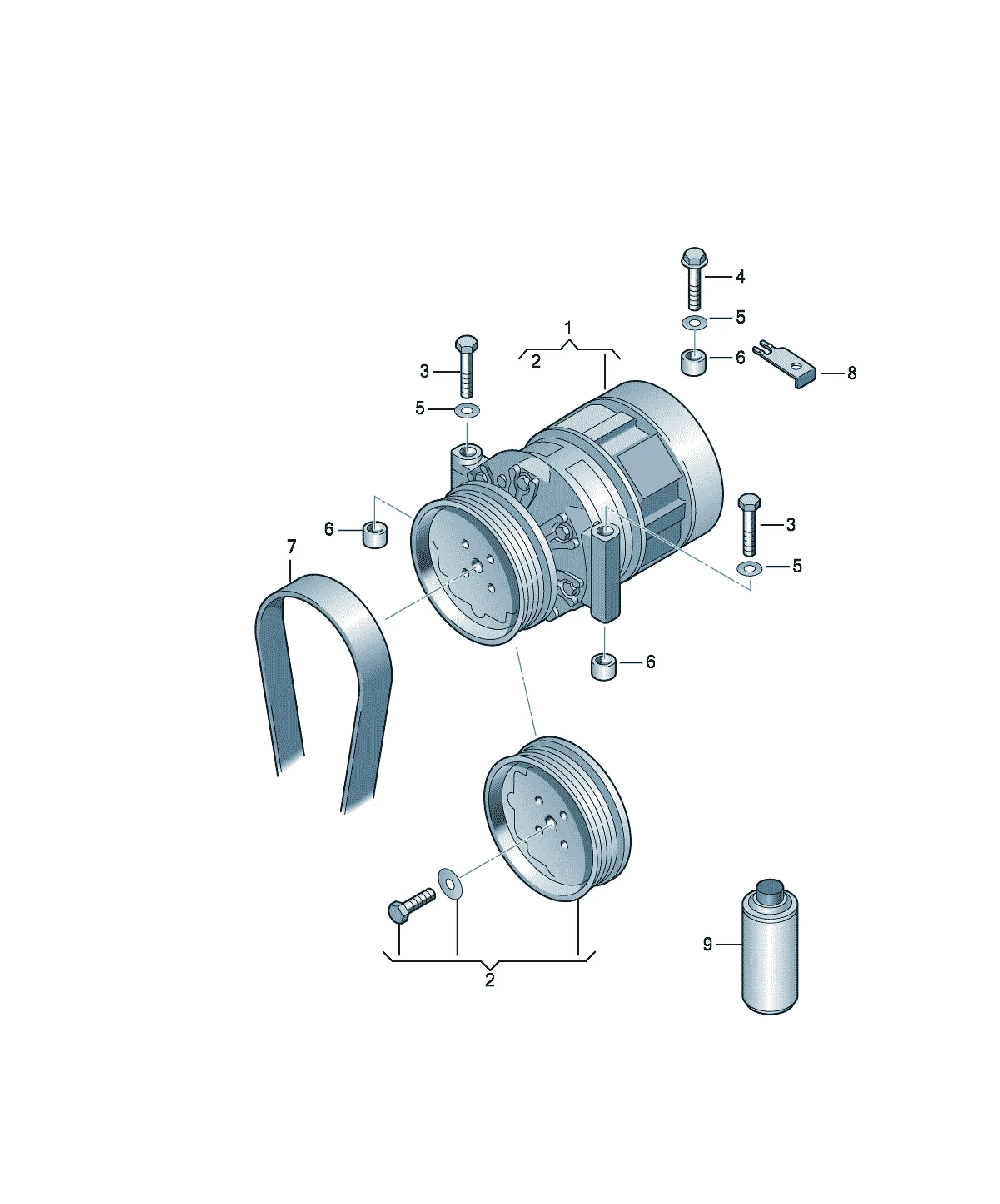

A/C compressor

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

black

matching contact housing: 1J0 973 702

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

A/C compressor DENSO 1

[Name] [QTY]

pulley 1

For A/C compressor

[Name] [Note] [QTY]

Flat head multi-point socket bolt M8X95 2

[Name] [Note] [QTY]

Flat head multi-point socket bolt M8X115X80 1

[Name] [Note] [QTY]

Washer 8,4X17X4 3

[Name] [Note] [QTY]

Centre sleeve 11,15X6,5 3

[Name] [Note] [QTY]

v-belt 1

see illustration: 903-095

[Name] [QTY]

bracket for connector housing 1

[Name] [Note] [QTY]

Coolant compressor oil 250ml 1

R134A

DENSO
