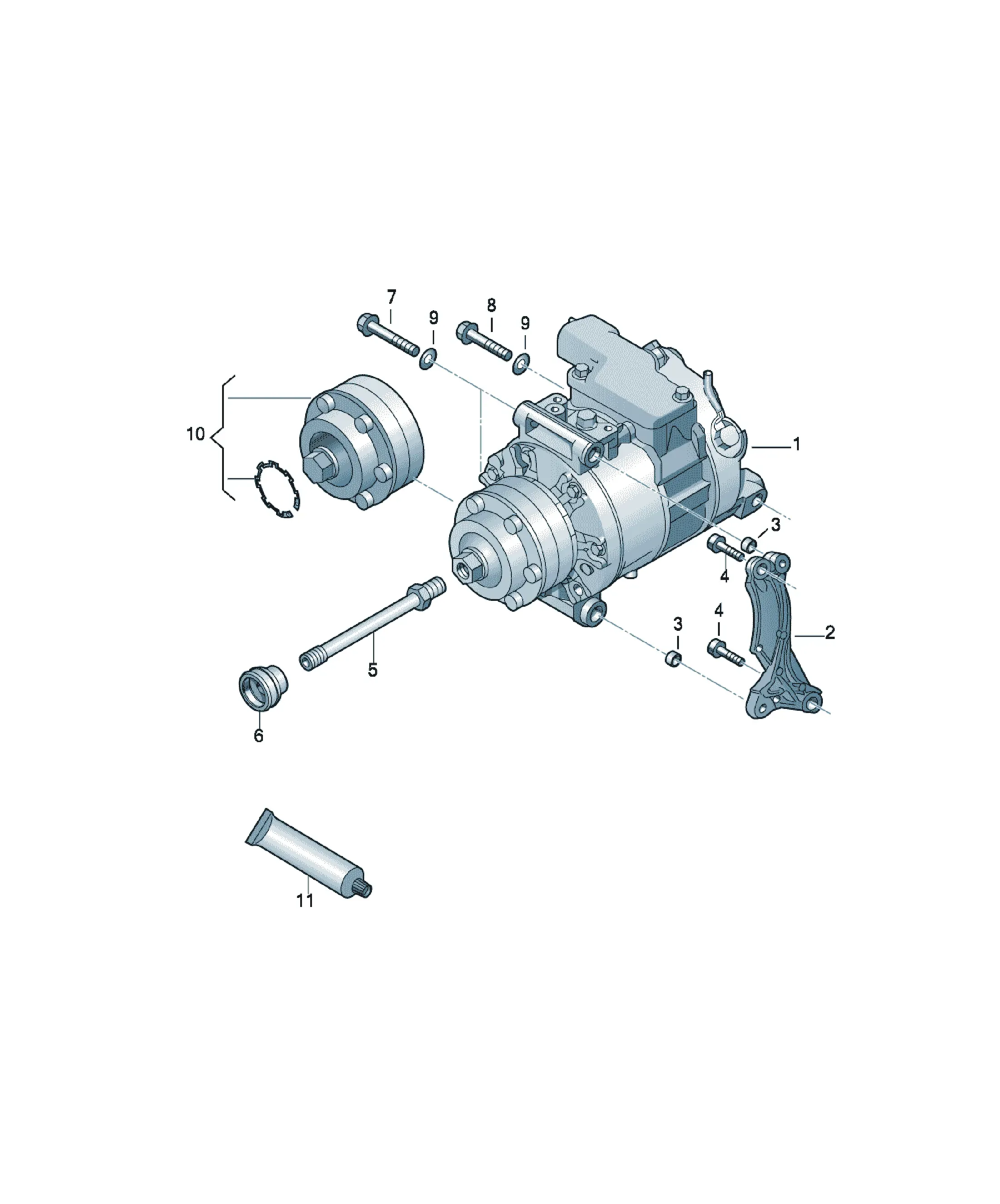

A/C compressor

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

black

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

clamp 34,6X7X0,6 1

[Name] [Note] [QTY]

Coolant compressor oil 250ML 1

[Name] [Note] [QTY]

A/C compressor DENSO 1

[Name] [Note] [QTY]

Grease for clutch plate splines 80G 1

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Centre sleeve 11,15X6,5 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X32 2

[Name] [QTY]

Input shaft 1

[Name] [QTY]

Grommet 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X90 2

[Name] [Note] [QTY]

Hexagon bolt M8X110X41 1

[Name] [Note] [QTY]

Washer 8X16X2 3
