Valves

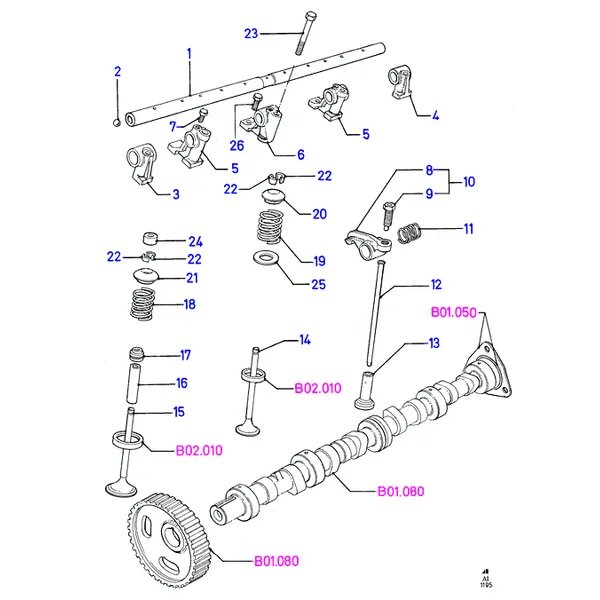

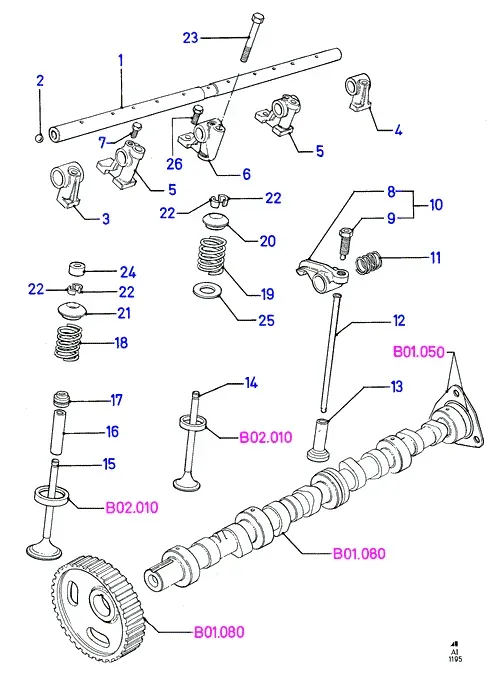

Valve train

Assembly diagrams

3 diagrams

Parts

24 parts

1645291 Offers

Engineering number: 844F 6459 AC
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Shaft - Valve Rocker Arm
1076472 Offers

Engineering number: XC1Q 6529 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Arm And Screw Assy - Valve Rocker
1745333 Offers

Engineering number: E1ADKN 6466
Date of manufacture: 01/03/1984 - 31/08/2000
: 4
description: Spring - Rocker Arm Shaft
Before ordering, please read the information in the blue envelope!
1501377 Offers

Engineering number: 715F 6565 AAB
Date of manufacture: 01/03/1984 - 30/09/1998
: AR
description: Rod - Valve Push
1464093 Offers

Engineering number: RM844F 6500 BA
Date of manufacture: 01/03/1984 - 30/09/1998
: AR
description: Tappet - Valve
6594644 Offers

Engineering number: 914F 6505 A1B
Date of manufacture: 01/06/1997 - 31/08/2000
: 4
description: Valve - Exhaust
1050570 Offers

Engineering number: 954F 6507 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: 4
description: Valve - Inlet
6121448 Offers

Engineering number: 844F 6510 CA
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Guide - Valve
6753723 Offers

Engineering number: 844F 6510 DB
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Guide - Valve
0.50MM O/S
6597036 Offers

Engineering number: 924F 6571 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Seal - Valve Stem
6923907 Offers

Engineering number: 844F 6513 AE
Date of manufacture: 01/03/1984 - 31/08/2000
: 4
description: Spring - Valve
Inlet
(2.5L Diesel (76PS) or 2.5L Diesel (70PS) or 2.5L Diesel (80PS))
3416839 Offers

Engineering number: 357966 S
Date of manufacture: 01/03/1984 - 31/08/2000
: 2
description: Plug - Valve Rocker Arm Shaft
1053657 Offers

Engineering number: 954F 6514 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: 4
description: Retainer - Valve Spring
Exhaust
1105227 Offers

Engineering number: 844F 6518 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: 16
description: Collet - Valve Spring Retainer
6129792 Offers

Engineering number: E800895 S200
Date of manufacture: 01/03/1984 - 31/08/2000
: 5
description: Bolt - Hex.Head
6118506 Offers

Engineering number: 844F 6K500 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: 8
description: Cap - Valve Stem
6129793 Offers

Engineering number: E800896 S200
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Bolt - Hex.Head
6125700 Offers

Engineering number: 844F 6531 AB
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Pedestal - Rocker Valve
6125702 Offers

Engineering number: 844F 6535 AB
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Pedestal - Rocker Valve
6125701 Offers

Engineering number: 844F 6532 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: 2
description: Pedestal - Rocker Valve
6094868 Offers

Engineering number: 844F 6536 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Pedestal - Rocker Valve
4380670 Offers

Engineering number: W500013 S437
Date of manufacture: 01/03/1984 - 31/08/2000
: 4
description: Bolt - Hex.Head
Engineering number:
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Arm Assy - Valve Rocker
1043194 Offers

Engineering number: 954F 6549 AA
Date of manufacture: 01/03/1984 - 30/09/1998
: AR
description: Screw - Rocker Arm Adjusting
