Valves

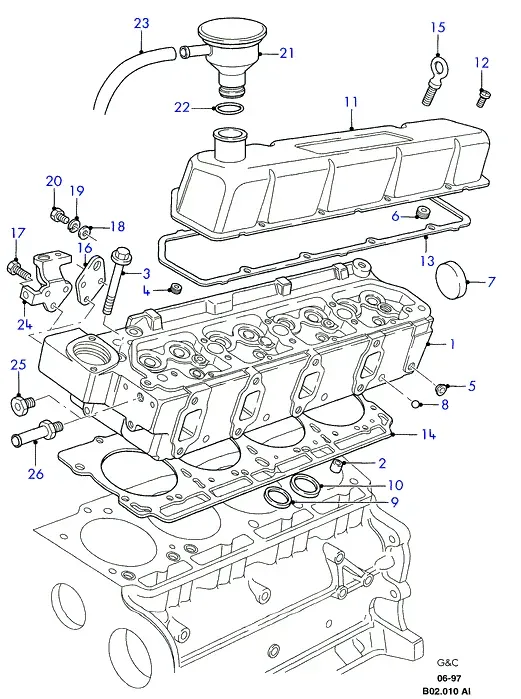

Cylinder head

Assembly diagrams

3 diagrams

Parts

27 parts

6686103 Offers

Engineering number: 924F 6050 AB
Date of manufacture: 01/08/1991 - 31/08/2000
: 1
description: Head Assy - Cylinder - Less Valves
Exchange Part (New For Old)
When Stanadyne Slim Tip Pencil Nozzle Injectors Are Fitted
2.5L DI Diesel
6093962 Offers

Engineering number: 844F 6057 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Insert - Valve Seat
Valve - Inlet
6200587 Offers

Engineering number: 904F 6582 AA
Date of manufacture: 01/09/1997 - 31/08/2000
: 1
description: Cover - Cylinder Head
(2.5L Diesel (76PS) or 2.5L Diesel (70PS))
4513508 Offers

Engineering number: W500011 S437
Date of manufacture: 01/04/1990 - 31/08/2000
: 9
description: Screw - Round Head
M6 x 12MM
6201251 Offers

Engineering number: 904F 6584 CA
Date of manufacture: 01/08/1989 - 31/08/2000
: 1
description: Gasket - Valve Rocker Arm Cover
6518302 Offers

Engineering number: 924F 6051 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Gasket - Cylinder Head
STD
6796401 Offers

Engineering number: 924F 6051 BA
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Gasket - Cylinder Head
O/S
1524342 Offers

Engineering number: 715F 17A084 AAA
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Eye Bolt
6124739 Offers

Engineering number: 844F 6A008 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: 2
description: Sleeve - Guide
1018555 Offers

Engineering number: 974F 6A785 BA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Separator Assy - Oil
(2.5L Diesel (70PS) or 2.5L Diesel (76PS))
6022371 Offers

Engineering number: E854054 S
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: "O" Ring
6767195 Offers

Engineering number: 924F 6A886 BA
Date of manufacture: 01/05/1992 - 31/08/2000
: 1
description: Hose Assy
(2.5L Diesel T or 2.5L Diesel (76PS) or 2.5L Diesel (80PS))
1657004 Offers

Engineering number: 894F 9K496 BA
Date of manufacture: 01/03/1989 - 31/08/2000
: 1
description: Hose Assy
SVO 7697
GB
SVO
1709150 Offers

Engineering number: W715121 S300
Date of manufacture: 01/08/1991 - 31/08/2000
: 1
description: Connector
6093964 Offers

Engineering number: 844F 6065 AA
Date of manufacture: 01/03/1984 - 31/08/2000
: 18
description: Bolt - Hex.Head
M12 x 90MM
3321602 Offers

Engineering number: 87650 S
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Plug - Blanking - Threaded
1450261 Offers

Engineering number: W702402 S446
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Plug - Blanking - Threaded
1/8" NPTF
1503089 Offers

Engineering number: E650413 S72
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Plug - Blanking - Threaded
3/8" x 18
1503090 Offers

Engineering number: E650414 S72
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Plug - Blanking - Threaded
1/2" x 14 Front/Rear of cyl Block
1657017 Offers

Engineering number: E857220 S
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Plug - Expansion
48.00 x 7.50
1657003 Offers

Engineering number: E857099 S
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Plug - Expansion
40.25 x 7.5MM
1657019 Offers

Engineering number: E857222 S
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Plug - Expansion
49.00 x 7.50
6182523 Offers

Engineering number: E857097 S
Date of manufacture: 01/03/1984 - 31/08/2000
: 6
description: Plug - Expansion
39.25 x 7.5MM
1657002 Offers

Engineering number: E857098 S
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Plug - Expansion
39.75 x 7.5MM
1657018 Offers

Engineering number: E857221 S
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Plug - Expansion
48.50 x 7.50
1478790 Offers

Engineering number: E890025 S
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Ball
O 12MM
6093963 Offers

Engineering number: 844F 6057 BA
Date of manufacture: 01/03/1984 - 31/08/2000
: AR
description: Insert - Valve Seat
Valve - Exhaust
Before ordering, please read the information in the blue envelope!
