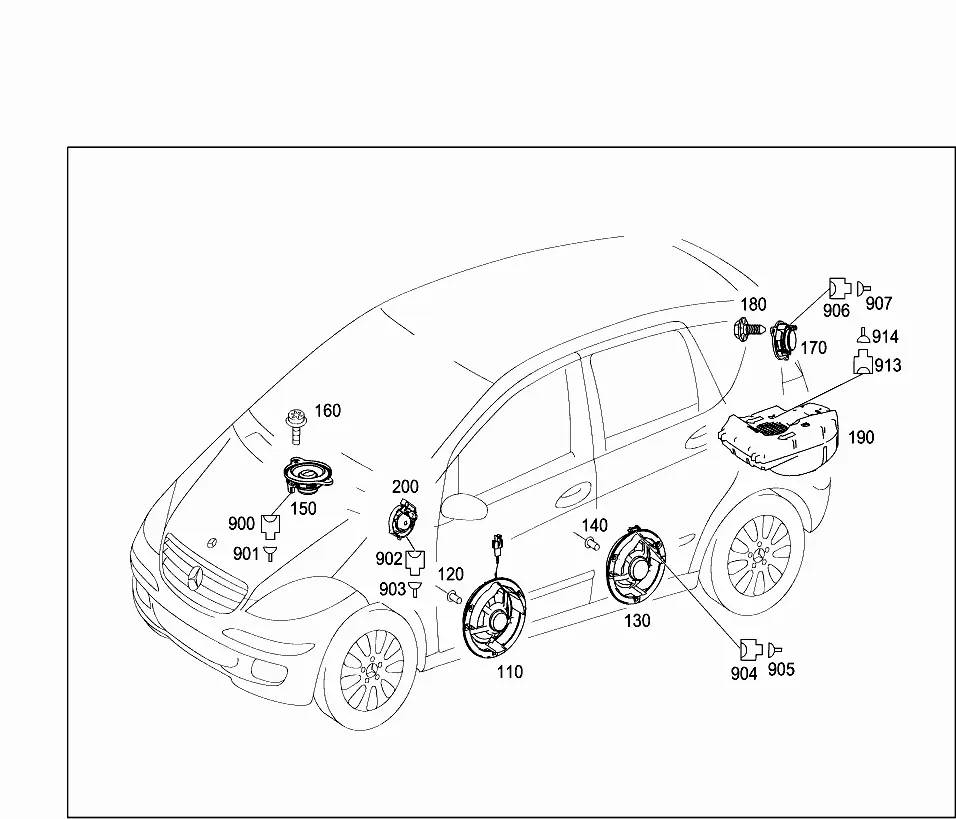

Loudspeaker

LEFT FRONT DOOR

QTY: 001

or

RIGHT FRONT DOOR

QTY: 001

SPEAKER FASTENING, FRONT DOOR

QTY: 006

or

SPEAKER FASTENING, REAR DOOR

QTY: 006

LEFT REAR DOOR

009: From Chassis: J 530922

009: From Date: 10.09.2007

Except for the model year808

QTY: 001

or

RIGHT REAR DOOR

009: From Chassis: J 530922

009: From Date: 10.09.2007

Except for the model year808

QTY: 001

LEFT AND RIGHT FRONT TWEETER

QTY: 002

CENTERFILL SPEAKER

2-PIN MQS;H4/27

QTY: 001

CENTERFILL SPEAKER

0.25-0.5 MM2 MQS;H4/27

LEFT AND RIGHT FRONT TWEETER

2-PIN MQS;H4/34 H4/33

QTY: 002

or

REAR SURROUND SPEAKER

2-PIN MQS;H4/54 H4/57

QTY: 002

LEFT AND RIGHT FRONT TWEETER

0.75 MM2 MQS;H4/34 H4/33

030: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

030: SEE WIS FOR REPAIR INSTRUCTIONS.

030: =================================================================================================

030: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

030: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

030: A 002 546 00 41 RED 2.0 - 4.0 MM2

030: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

030: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

030: BUTT JOINT:

030: A 002 546 13 41 0.5 MM2

030: A 002 546 14 41 0.8 MM2

030: A 002 546 15 41 1.3 MM2

030: A 002 546 16 41 2.0 MM2

030: ===================================================================================================

or

REAR SURROUND SPEAKER

0.75 MM2 MQS;H4/54 H4/57

030: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

030: SEE WIS FOR REPAIR INSTRUCTIONS.

030: =================================================================================================

030: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

030: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

030: A 002 546 00 41 RED 2.0 - 4.0 MM2

030: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

030: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

030: BUTT JOINT:

030: A 002 546 13 41 0.5 MM2

030: A 002 546 14 41 0.8 MM2

030: A 002 546 15 41 1.3 MM2

030: A 002 546 16 41 2.0 MM2

030: ===================================================================================================

LEFT OR RIGHT REAR DOOR SPEAKER

2-PIN JPT;H4/3 H4/4

QTY: 002

LEFT OR RIGHT REAR DOOR SPEAKER

0.5-1.0 MM2 JPT;H4/3 H4/4

SUBWOOFER SPEAKER

2-PIN SLK2.8;H4/29

QTY: 001

BASS-BOX SPEAKER

12-PIN MCP2.8;H4/17

QTY: 001

SUBWOOFER SPEAKER

2.5 MM2 SLK;H4/29

030: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

030: SEE WIS FOR REPAIR INSTRUCTIONS.

030: =================================================================================================

030: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

030: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

030: A 002 546 00 41 RED 2.0 - 4.0 MM2

030: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

030: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

030: BUTT JOINT:

030: A 002 546 13 41 0.5 MM2

030: A 002 546 14 41 0.8 MM2

030: A 002 546 15 41 1.3 MM2

030: A 002 546 16 41 2.0 MM2

030: ===================================================================================================

BASS-BOX SPEAKER

0.5-1.0 MM2 MCP2.8;H4/17

BASS-BOX SPEAKER

1.5-2.5 MM2 MCP2.8;H4/17
