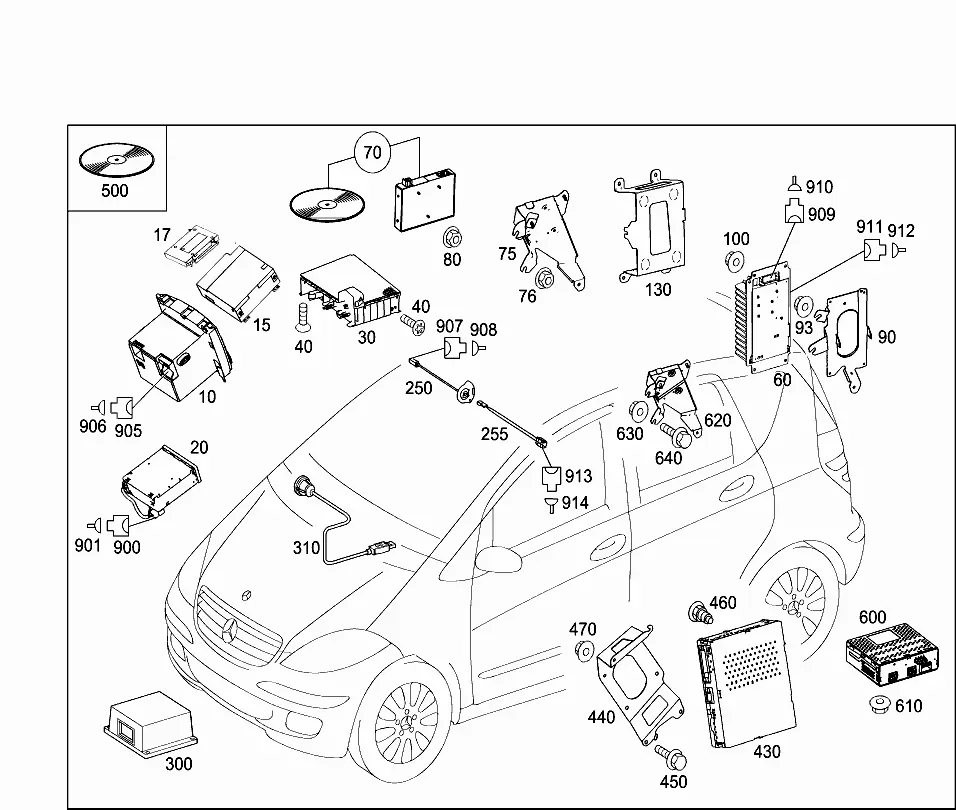

Audio control elements

AUDIO 5

Replaced by A 1699002900

035: From Chassis: J 530922

035: From Date: 31.08.2007

Except for the model year808

525: NOTE COND. RETURN VIA SYREK SETTLEMENT IN GERMANY. PLEASE ALSO ORDER AS REPLACEMENT PART.

697: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART

520: RADIO ICU ALPINE WITH TRAFFIC/TRANSMITTER INFO

QTY: 001

AUDIO 5

035: From Chassis: J 530922

035: From Date: 31.08.2007

Except for the model year808

520: RADIO ICU ALPINE WITH TRAFFIC/TRANSMITTER INFO

QTY: 001

CD CHANGER

3-PIN MQS;A2/6

QTY: 001

CD CHANGER

0.25-0.5 MM2 MQS;A2/6

or

RADIO OR COMAND

0.25-0.5 MM2 MQS;A40/3

or

CONTROL UNIT, SOUND AMPLIFIER

0.25-0.5 MM2 MQS;N40/3

CD CHANGER

0.75 MM2 MQS;A2/6

030: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

030: SEE WIS FOR REPAIR INSTRUCTIONS.

030: =================================================================================================

030: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

030: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

030: A 002 546 00 41 RED 2.0 - 4.0 MM2

030: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

030: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

030: BUTT JOINT:

030: A 002 546 13 41 0.5 MM2

030: A 002 546 14 41 0.8 MM2

030: A 002 546 15 41 1.3 MM2

030: A 002 546 16 41 2.0 MM2

030: ===================================================================================================

CONTACT PROTECTION

TO A 003 545 30 40

or

CONTACT PROTECTION

TO A 001 545 15 30

ANTENNA PLUG, BEIGE

2-PIN;A40/3 (FE2)

QTY: 001

ANTENNA PLUG, WHITE

2-PIN;A40/3 (AM/FM)

QTY: 001

ANTENNA PLUG, BLUE

2-PIN;A40/3 (GPS)

QTY: 001

RADIO SET

2X8-PIN JPT;A2

520: RADIO ICU ALPINE WITH TRAFFIC/TRANSMITTER INFO

QTY: 001

ANTENNA PLUG, GREEN

2-PIN;A40/3 (VC)

QTY: 001

SPEAKER, BROWN

8-PIN MCP2.8;A40/3

QTY: 001

A40/3; COMAND/AUDIO; CONNECTOR:

12-PIN MQS

QTY: 001

12-PIN MQS;TO A 001 545 15 30

QTY: 001

or

12-PIN MQS;TO A 001 545 13 30

QTY: 001

BASIC CARRIER AND POWER SUPPLY

8-PIN MCP2.8;A40/3

QTY: 001

RADIO SET

0.5-1.0 MM2 JPT;A2

RADIO SET

1.5-2.5 MM2 JPT;A2

RADIO OR COMAND

0.5-1.0 MM2 MCP2.8;A40/3

or

CONTROL UNIT, SOUND AMPLIFIER

0.5-1.0 MM2 MCP2.8;N40/3

RADIO OR COMAND

1.5-2.5 MM2 MCP2.8;A40/3

or

CONTROL UNIT, SOUND AMPLIFIER

1.5-2.5 MM2 MCP2.8;N40/3

CONTROL UNIT, SOUND AMPLIFIER

4-PIN MQS;N40/3

QTY: 001

CONTROL UNIT, SOUND AMPLIFIER

6-PIN MQS, MOST;N40/3

QTY: 001

CONTROL UNIT, SOUND AMPLIFIER

21 PIN SLK;N40/3

QTY: 001
