Cooling

Battery cooling system

Assembly diagrams

3 diagrams

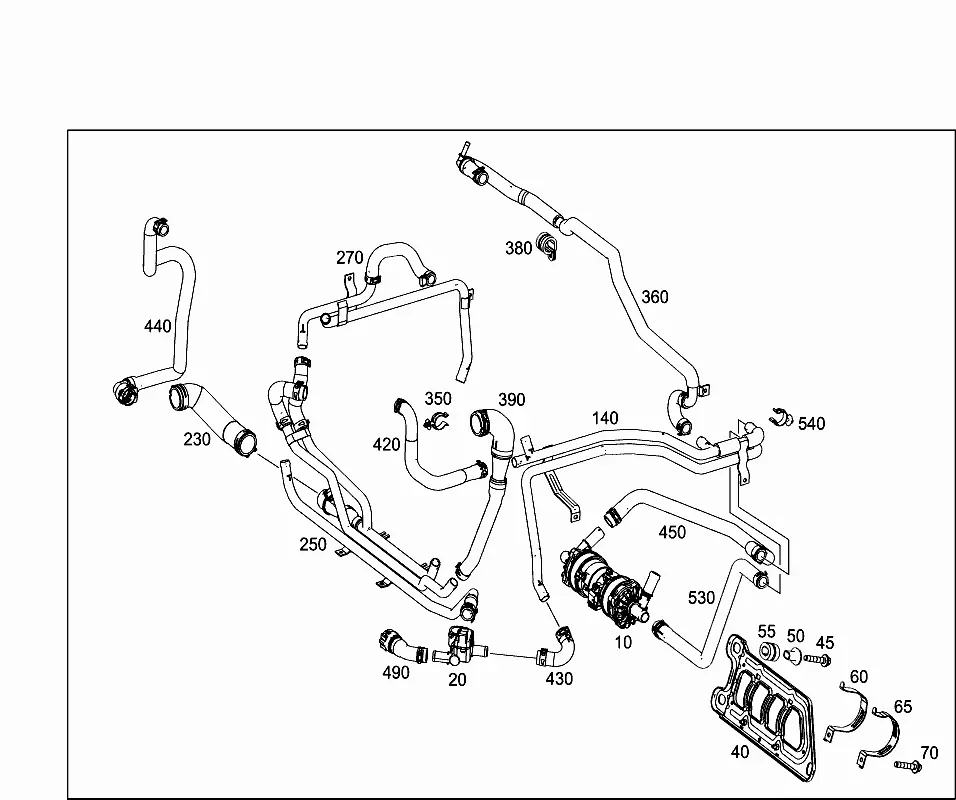

Battery cooling system diagram

Parts

23 parts

A0005000486 Offers

BATTERY COOLING SYSTEM CIRCUIT
697: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
A1695010158 Offers

LOW-TEMPERATURE COOLER AT TOP AND BOTTOM
A0005001940 Offers

ON RADIATOR,TOP
A1695011982 Offers

RADIATOR TOP
A1695010358 Offers

TO SWITCHOVER VALVE AND COOLANT PUMP
A1695010058 Offers

TO ELECTRIC MOTOR
A0029957977 Offers

COOLING WATER HOSE
A1695010258 Offers

TO EVAPORATOR
N000000000324 Offers

COOLING WATER HOSE
A1695012682 Offers

RADIATOR BOTTOM
A1695040740 Offers

COOLING WATER HOSE
A1695012782 Offers

LOW TEMPERATURE RADIATOR
A1695012882 Offers

LOW-TEMPERATURE COOLER AT BOTTOM LEFT
A1695012482 Offers

LOW TEMPERATURE RADIATOR
N910143008005 Offers

BRACKET
M8X40
A1695012982 Offers

COOLING WATER PUMP
A1695013082 Offers

AT CHANGE-OVER VALVE
A1709920005 Offers

SPACER
A1695013482 Offers

COOLING WATER PUMP
A1689971681 Offers

SPACER
A1695040940 Offers

TO PUMP
A1695041040 Offers

TO PUMP
N910142006001 Offers

AT BRACKET
M6X16
