Cooling

Battery cooling system

Assembly diagrams

3 diagrams

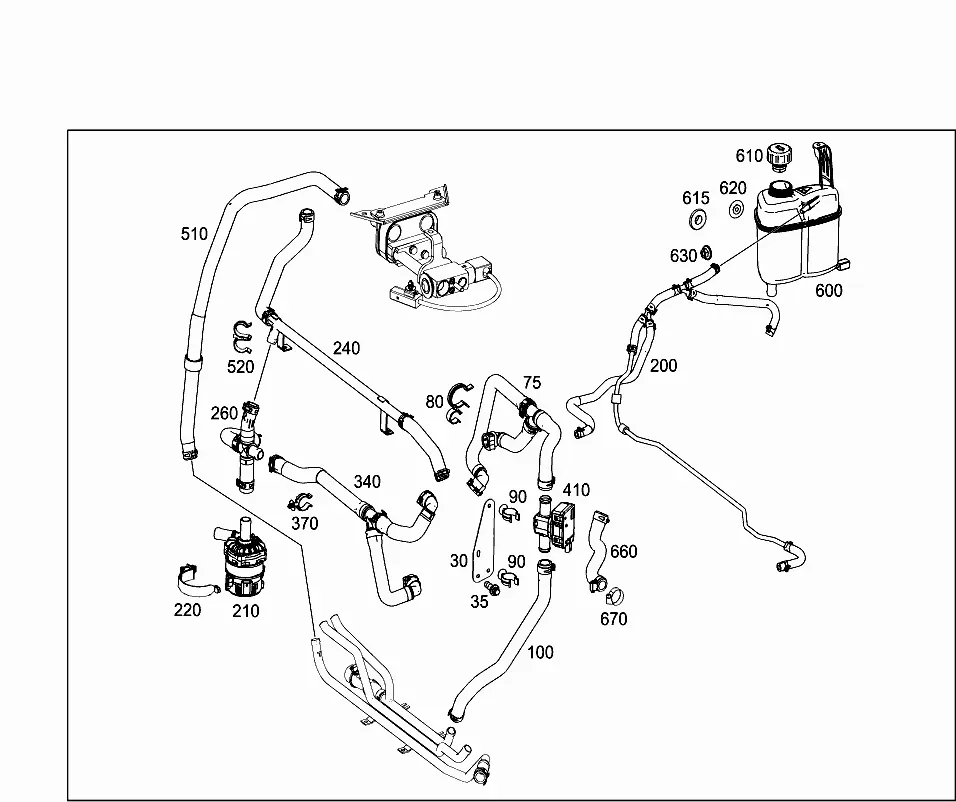

Battery cooling system diagram

Parts

22 parts

A1695012282 Offers

TO SHUTOFF VALVE
A1695011625 Offers

ON EXPANSION RESERVOIR
A0035000086 Offers

697: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
A1695040640 Offers

COOLING WATER PUMP
A1695014282 Offers

ON EXPANSION RESERVOIR
A1695013782 Offers

DISTRIBUTOR FROM COOLANT PUMP
A1695040840 Offers

CHANGE-OVER VALVE
A1695012582 Offers

CHARGER AT COOLER
N910142006001 Offers

VALVE TO BRACKET
M6X16
A1698300884 Offers
A1695013382 Offers

TO EVAPORATOR
A0009959675 Offers

COOLING WATER HOSE
A1695000049 Offers

COOLING WATER
A1645010015 Offers

EXPANSION TANK
A2035040212 Offers

EXPANSION RESERVOIR TO BRACKET
A0039975586 Offers

EXPANSION TANK
20 MM
N910104006001 Offers

EXPANSION RESERVOIR TO BRACKET
M6
A1695012082 Offers

TO ELECTRIC MOTOR
N000000000667 Offers

COOLING WATER HOSE
23-30 MM
A1695014182 Offers

TO SHUTOFF VALVE
A0009956375 Offers

COOLING WATER HOSE
A0029957977 Offers

COOLING WATER HOSE
or
COOLING WATER LINE
