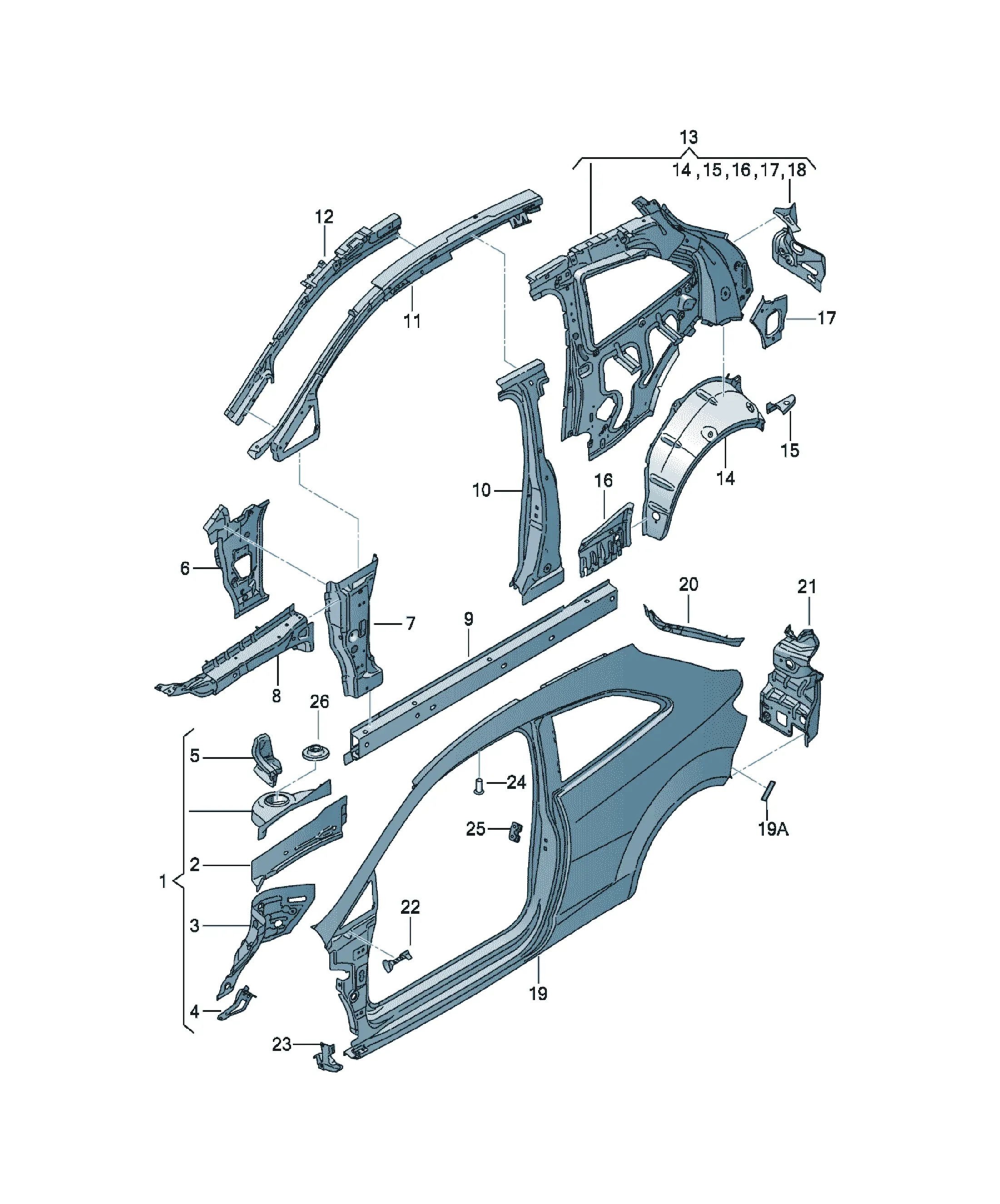

Body side panel

[Name] [Note] [QTY]

threaded pin M6X23 1

left

[Name] [Note] [QTY]

Protective film (self-adhesive) 130X20MM 1

to be used for item: 8

only for: right

[Name] [Note] [QTY]

Wheel housing left front 1

Rework if necessary

see workshop manual

D >> - 26.05.2014

[Name] [Note] [QTY]

Wheel housing right front 1

Rework if necessary

see workshop manual

[Name] [Note] [QTY]

Wheel housing left front 1

Rework if necessary

see workshop manual

D - 26.05.2014>>

[Name] [Note] [QTY]

outrigger, b-pillar right outer 1

[Name] [Note] [QTY]

outrigger, b-pillar left outer 1

[Name] [Note] [QTY]

outrigger, a-pillar right upper 1

[Name] [Note] [QTY]

outrigger, a-pillar left upper 1

[Name] [Note] [QTY]

a-pillar, inner right upper 1

D >> - 29.07.2013

[Name] [Note] [QTY]

a-pillar, inner left upper 1

D >> - 29.07.2013

[Name] [Note] [QTY]

a-pillar, inner right upper 1

D - 29.07.2013>>

[Name] [Note] [QTY]

a-pillar, inner left upper 1

D - 29.07.2013>>

[Name] [Note] [QTY]

side panel with wheel housing outer right rear 1

use if required: N 106 185 01

Accompanying details: N 10618501

[Name] [Note] [QTY]

side panel with wheel housing outer left rear 1

use if required: N 106 185 01

Accompanying details: N 10618501

[Name] [Note] [QTY]

Wheel housing liner right rear 1

outer

[Name] [Note] [QTY]

Wheel housing liner left rear 1

outer

[Name] [Note] [QTY]

wheel housing length extension right 1

[Name] [Note] [QTY]

wheel housing length extension left 1

[Name] [Note] [QTY]

Reinforcement for pillar C - wheel housing right lower 1

[Name] [Note] [QTY]

Reinforcement for pillar C - wheel housing left lower 1

[Name] [Note] [QTY]

Extension for side part rear 1

only for: left

[Name] [Note] [QTY]

Support plate right rear 1

[Name] [Note] [QTY]

Support plate left rear 1

[Name] [Note] [QTY]

Side part left outer 1

also use: 8D0 805 521 A 1

lower rear

Accompanying details: 8D0805521A

[Name] [Note] [QTY]

Side part right outer 1

also use: 8D0 805 521 A 1

lower rear

Accompanying details: 8D0805521A

[Name] [Note] [QTY]

Protective film (self-adhesive) left a. right X

130X20MM

shorten to: 56X18MM

[Name] [Note] [QTY]

Side member upper section right inner 1

[Name] [Note] [QTY]

Side member upper section left inner 1

[Name] [Note] [QTY]

Sealing channel left 1

[Name] [Note] [QTY]

Sealing channel right 1

[Name] [Note]

Mounting for tail light left a. right

see illustration: 813-000

[Name] [Note] [QTY]

bracket for wheel cover right upper 1

[Name] [Note] [QTY]

bracket for wheel cover left upper 1

[Name] [Note] [QTY]

Closing element right lower 1

[Name] [Note] [QTY]

Closing element left lower 1

[Name] [Note] [QTY]

rivetted cap nut M6/1-4-F 2

Securing element

Roof carrier

[Name] [QTY]

Threaded plate 2

[Name] [QTY]

Bracket 2

suspension strut dome

see workshop manual

repair set

1J0809127B Bracket

1J0809127B STR without finish 1

[Name] [Note] [QTY]

Wheel housing right front 1

[Name] [Note] [QTY]

Wheel housing left front 1

repair set

6Q0809105F Wheel housing

6Q0809105F STR without finish 1

[Name] [Note] [QTY]

bracket - fender left 1

and

Fluid reservoir

D >> - 26.05.2014

[Name]

bracket - fender

and

Fluid reservoir

Not for this model

D - 26.05.2014>>

[Name] [Note] [QTY]

Closing element left upper 1

[Name] [Note] [QTY]

Closing element right upper 1

[Name] [Note]

a-pillar, inner lower

see illustration, item: 803-015,11

[Name] [Note] [QTY]

a-pillar, inner left front 1

[Name] [Note] [QTY]

a-pillar, inner right front 1

[Name] [Note] [QTY]

Side member left upper 1

[Name] [Note] [QTY]

Side member right upper 1

Part Requires marking with chassis number

D >> - 02.12.2013

[Name] [Note] [QTY]

Side member right upper 1

Part Requires marking with chassis number

D - 02.12.2013>>

[Name] [Note] [QTY]

side member left outer 1

[Name] [Note] [QTY]

side member right outer 1
