Side panel

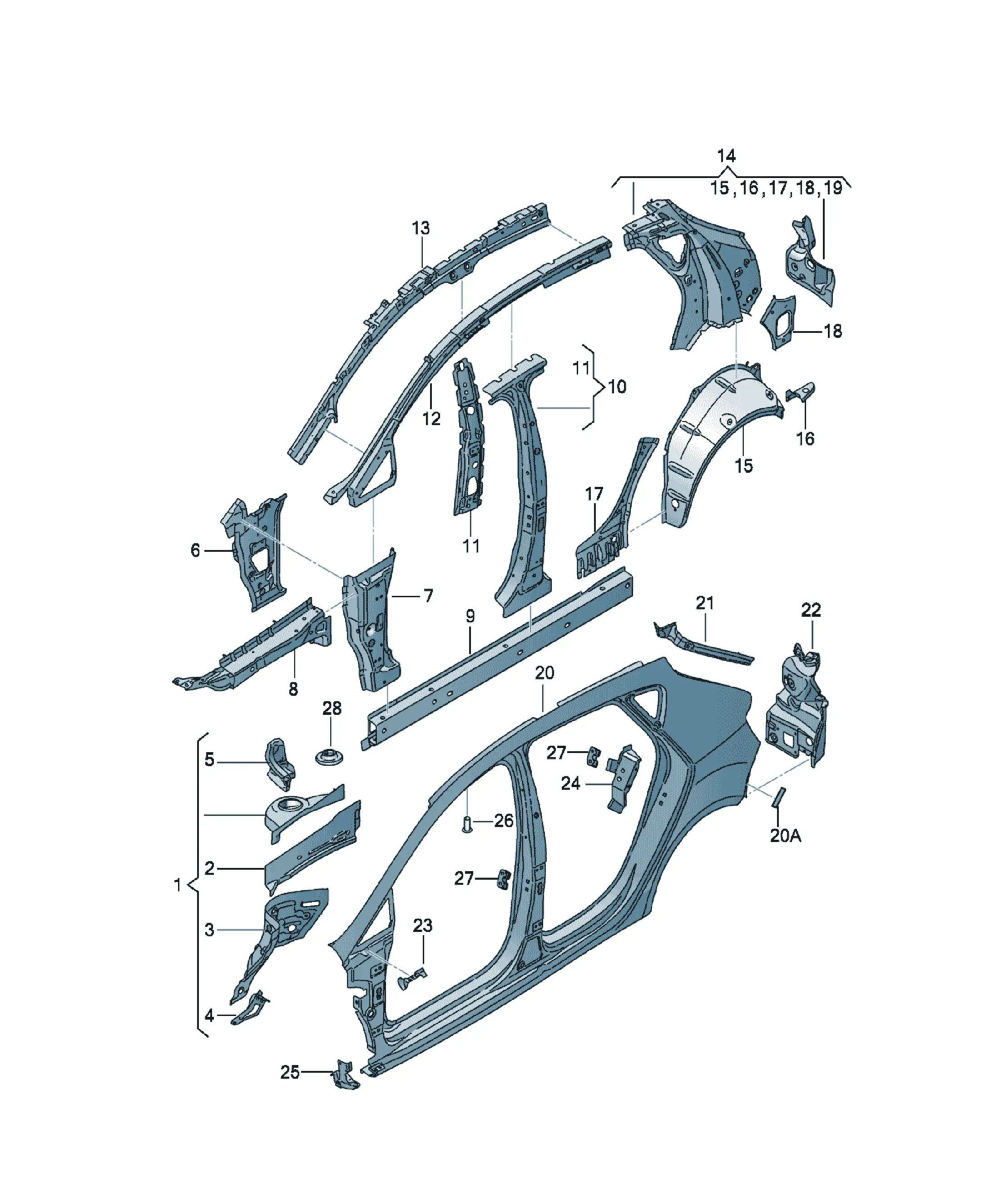

Body side panel

Assembly diagrams

6 diagrams

Parts

63 parts

Шпилька
N90987602 Offers

[Name] [Note] [QTY]
threaded pin M6X23 1
left
Защитная плёнка (самоклеящаяся)
8D0805521A Offers

[Name] [Note] [QTY]
Protective film (self-adhesive) 130X20MM 1
to be used for item: 8
only for: right
6J0805115A Offers

[Name] [Note] [QTY]
Wheel housing left front 1
Rework if necessary
see workshop manual
D >> - 20.01.2014
6P0805115 Offers

[Name] [Note] [QTY]
Wheel housing left front 1
Rework if necessary
see workshop manual
D - 20.01.2014>>
6J0805116A Offers

[Name] [Note] [QTY]
Wheel housing right front 1
Rework if necessary
see workshop manual
6J4809607C Offers

[Name] [Note] [QTY]
outrigger, b-pillar left outer 1
D - 24.06.2013>>
6J4809608C Offers

[Name] [Note] [QTY]
outrigger, b-pillar right outer 1
D - 24.06.2013>>
6J4809608B Offers

[Name] [Note] [QTY]
outrigger, b-pillar right outer 1
D >> - 24.06.2013
6J4809607B Offers

[Name] [Note] [QTY]
outrigger, b-pillar left outer 1
D >> - 24.06.2013
6J4809223B Offers

[Name] [Note] [QTY]
b-pillar, inner left 1
D - 24.06.2013>>
6J4809224B Offers

[Name] [Note] [QTY]
b-pillar, inner right 1
D - 24.06.2013>>
6J4809224A Offers

[Name] [Note] [QTY]
b-pillar, inner right 1
D >> - 24.06.2013
6J4809223A Offers

[Name] [Note] [QTY]
b-pillar, inner left 1
D >> - 24.06.2013
6J4810184C Offers

[Name] [Note] [QTY]
outrigger, a-pillar right upper 1
6J4810183C Offers

[Name] [Note] [QTY]
outrigger, a-pillar left upper 1
6J4809428B Offers

[Name] [Note] [QTY]
a-pillar, inner right upper 1
D >> - 29.07.2013
6J4809427C Offers

[Name] [Note] [QTY]
a-pillar, inner left upper 1
6J4809428C Offers

[Name] [Note] [QTY]
a-pillar, inner right upper 1
D - 29.07.2013>>
6J4809402B Offers

[Name] [Note] [QTY]
side panel with wheel housing outer right rear 1
6J4809401B Offers

[Name] [Note] [QTY]
side panel with wheel housing outer left rear 1
6J0809412B Offers

[Name] [Note] [QTY]
Wheel housing liner right rear 1
outer
6J0809411A Offers

[Name] [Note] [QTY]
Wheel housing liner left rear 1
outer
6J0813227 Offers

[Name] [Note] [QTY]
wheel housing length extension left 1
6J0813228 Offers

[Name] [Note] [QTY]
wheel housing length extension right 1
6J0809582 Offers

[Name] [Note] [QTY]
Reinforcement for pillar C - wheel housing right lower 1
6J0809581 Offers

[Name] [Note] [QTY]
Reinforcement for pillar C - wheel housing left lower 1
[Name] [Note] [QTY]
Extension for side part rear 1
only for: left
6J4809439A Offers

[Name] [Note] [QTY]
Support plate left rear 1
6J4809440A Offers

[Name] [Note] [QTY]
Support plate right rear 1
6J0810157 Offers

[Name] [Note] [QTY]
Side member upper section left upper 1
6J0810158 Offers

[Name] [Note] [QTY]
Side member upper section right upper 1
6J4809605C Offers

[Name] [Note] [QTY]
Side part left outer 1
D - 13.04.2015>>
also use: 8D0 805 521 A 1
lower rear
Accompanying details: 8D0805521A
6J4809605B Offers

[Name] [Note] [QTY]
Side part left outer 1
D >> - 13.04.2015
also use: 8D0 805 521 A 1
lower rear
Accompanying details: 8D0805521A
6J4809606B Offers

[Name] [Note] [QTY]
Side part right outer 1
D >> - 13.04.2015
also use: 8D0 805 521 A 1
lower rear
Accompanying details: 8D0805521A
6J4809606C Offers

[Name] [Note] [QTY]
Side part right outer 1
D - 13.04.2015>>
also use: 8D0 805 521 A 1
lower rear
Accompanying details: 8D0805521A
8D0805521A Offers

[Name] [Note] [QTY]
Protective film (self-adhesive) left a. right X
130X20MM
shorten to: 56X18MM
6J4809642A Offers

[Name] [Note] [QTY]
Sealing channel right 1
6J4809641A Offers

[Name] [Note] [QTY]
Sealing channel left 1
[Name] [Note]
Mounting for tail light left a. right
see illustration: 813-000
6J0809619 Offers

[Name] [Note] [QTY]
bracket for wheel cover left upper 1
6J0809620 Offers

[Name] [Note] [QTY]
bracket for wheel cover right upper 1
6J4809611A Offers

[Name] [Note] [QTY]
Reinforcement for C-pillar for cotter pin left 1
contains additional positions: 27
6J4809612A Offers

[Name] [Note] [QTY]
Reinforcement for C-pillar for cotter pin right 1
contains additional positions: 27
6J0810221A Offers

[Name] [Note] [QTY]
Closing element left lower 1
6J0810222A Offers

[Name] [Note] [QTY]
Closing element right lower 1
6L0809864 Offers

[Name] [Note] [QTY]
rivetted cap nut M6/1-4-F 2
Securing element
Roof carrier
6R0810681 Offers

[Name] [Note] [QTY]
Threaded plate rear 2
Included in position: 24
6R0810681 Offers

[Name] [Note] [QTY]
Threaded plate front 2
1J0809127B Offers

[Name] [QTY]
Bracket 2
suspension strut dome
see workshop manual
repair set
1J0809127B Bracket
1J0809127B STR without finish 1
6Q0809106G Offers

[Name] [Note] [QTY]
Wheel housing right front 1
6Q0809105F Offers

[Name] [Note] [QTY]
Wheel housing left front 1
repair set
6Q0809105F Wheel housing
6Q0809105F STR without finish 1
6Q0810679E Offers

[Name] [Note] [QTY]
bracket - fender left 1
and
Fluid reservoir
D >> - 26.05.2014
[Name]
bracket - fender
and
Fluid reservoir
Not for this model
D - 26.05.2014>>
6J0805029 Offers

[Name] [Note] [QTY]
Closing element left upper 1
water box outer
6J0805030 Offers

[Name] [Note] [QTY]
Closing element right upper 1
water box outer
[Name] [Note]
a-pillar, inner lower
see illustration, item: 803-015,11
6J0809204 Offers

[Name] [Note] [QTY]
a-pillar, inner right front 1
6J0809203 Offers

[Name] [Note] [QTY]
a-pillar, inner left front 1
6J0810136B Offers

[Name] [Note] [QTY]
Side member right upper 1
Part Requires marking with chassis number
D - 02.12.2013>>
6J0810135B Offers

[Name] [Note] [QTY]
Side member left upper 1
6J0810136A Offers

[Name] [Note] [QTY]
Side member right upper 1
Part Requires marking with chassis number
D >> - 02.12.2013
6J0809071 Offers

[Name] [Note] [QTY]
side member left 1
6J0809072 Offers

[Name] [Note] [QTY]
side member right 1
