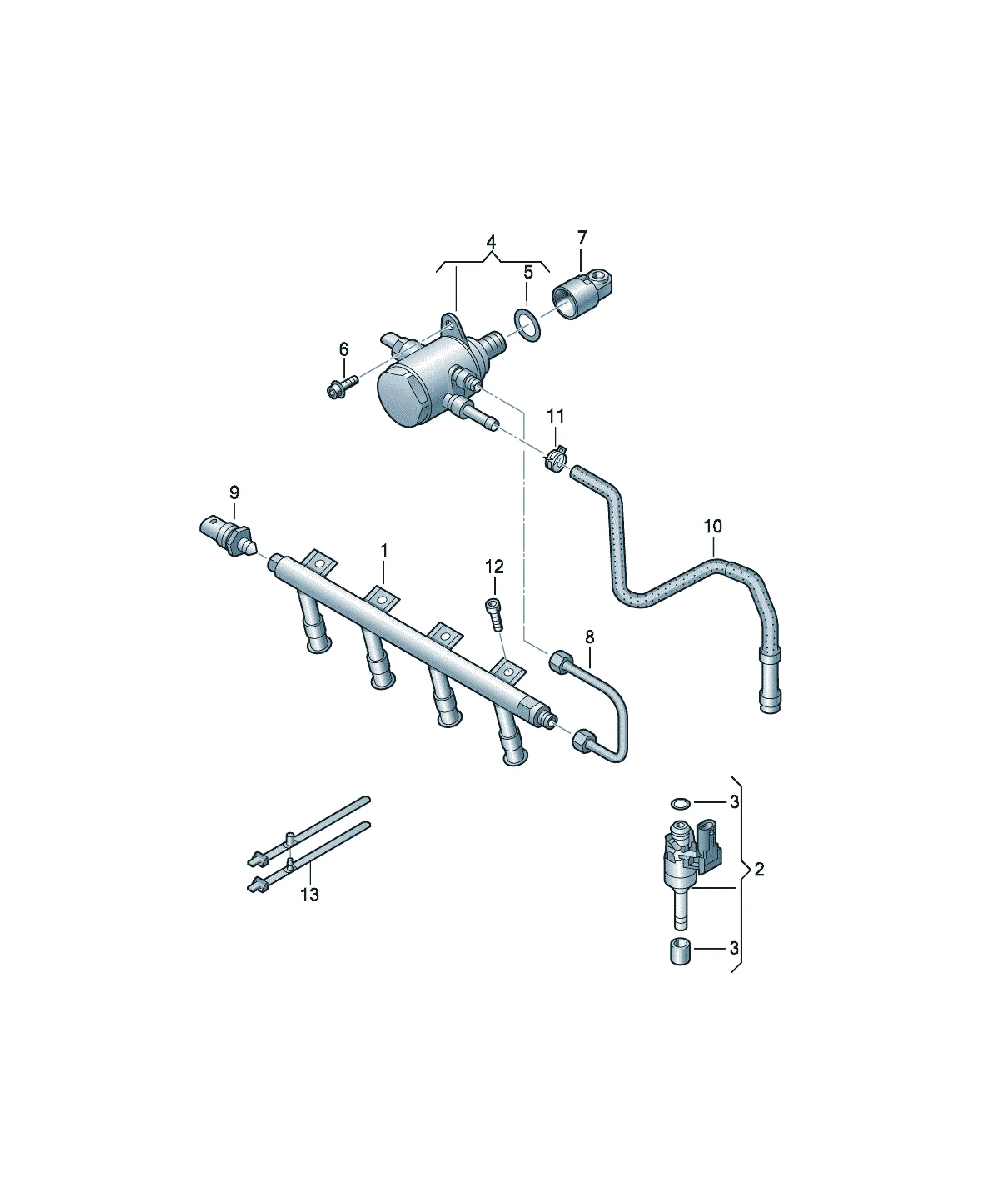

Fuel rail

[Name] [QTY]

Fuel rail 1

[Name] [QTY]

Fuel hose 1

[Name] [Note] [QTY]

Spring band clamp 14,5X12 X

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X20 4

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [QTY]

Injection valve 4

mating connector

4H0973702A Flat contact housing 2 pin 1

[Name] [QTY]

Gasket set for injector valve 4

repair set

seal ring 7,6X2,62 1

seal ring 1

support washer 1

WHT 010 164

Spring clip 1

03H 906 038

[Name] [QTY]

Fuel pump 1

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

Injection valve

[Name] [Note] [QTY]

O-ring 31,5X2 1

[Name] [Note] [QTY]

Screw with int. serrations M8X20 2

[Name] [QTY]

Tappets 1

[Name] [QTY]

pressure pipe 1

[Name] [QTY]

Pressure sensor 1

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black
