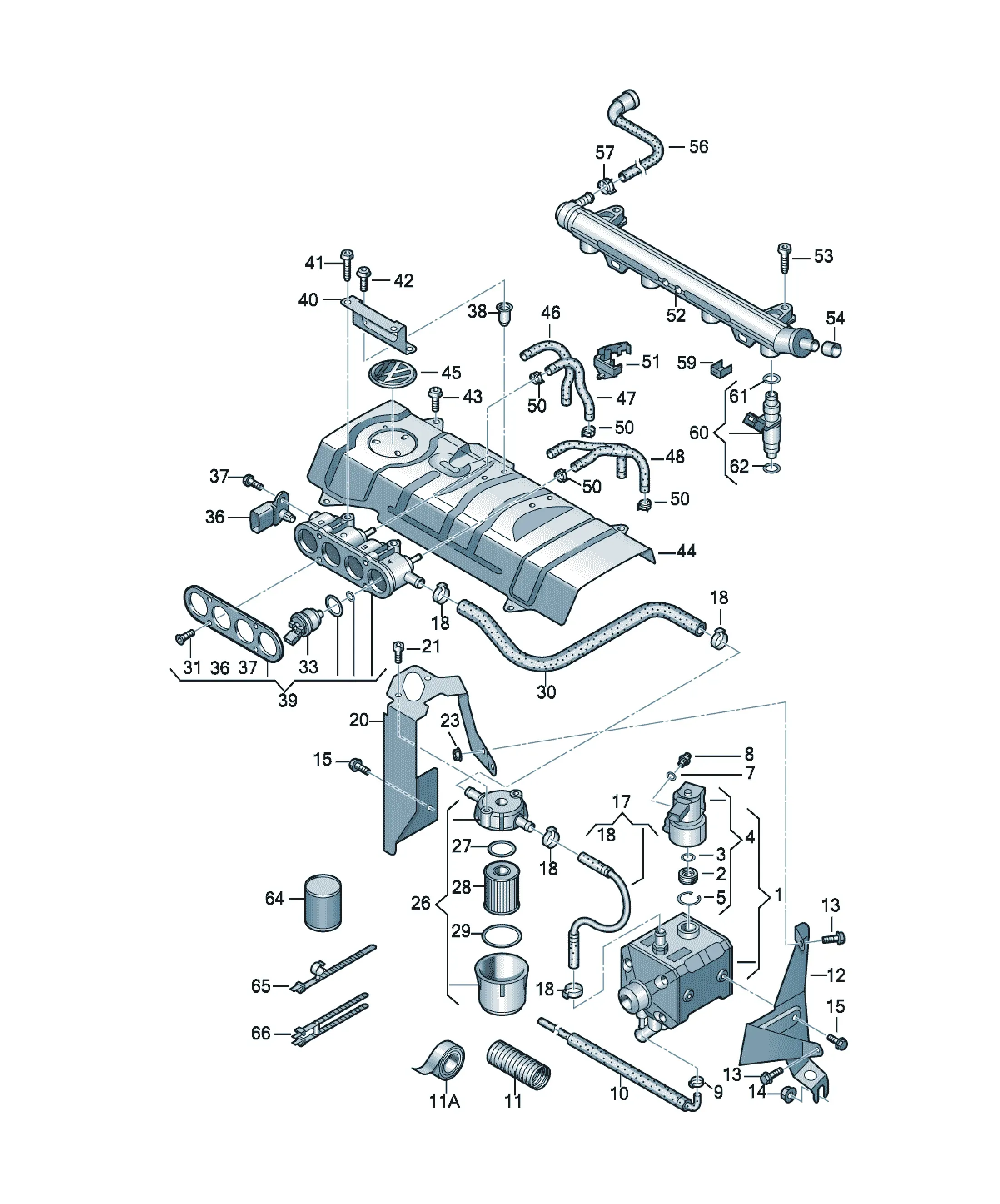

Fuel rail

[Name] [QTY]

evaporator 1

For vehicles with liquid gas operation (LPG)

[Name] [QTY]

Vacuum hose 1

[Name] [Note]

shorten to: 100MM

[Name] [Note] [QTY]

webbing adhesive tape 0,30X19X25000 1

[Name] [QTY]

Bracket for evaporator 1

For vehicles with liquid gas operation (LPG)

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

[Name] [Note] [QTY]

Hexagon collar nut M8 X

[Name] [Note] [QTY]

Hex collared bolt M6X12 1

[Name] [Note] [QTY]

Fuel hose 1

contains: POS.18 2

[Name] [Note] [QTY]

Clamp 22,6X7X0,60 4

[Name] [QTY]

filter element 1

[Name] [QTY]

Bracket for evaporator 1

For vehicles with liquid gas operation (LPG)

[Name] [Note] [QTY]

Hexagon socket oval head bolt, self-locking M6X12 2

[Name] [QTY]

Hexagon nut 1

[Name] [QTY]

Fuel filter 1

[Name] [QTY]

O-ring 1

[Name] [QTY]

filter element 1

[Name] [QTY]

O-ring 1

[Name] [Note] [QTY]

O-ring 37,77X2,62 1

[Name] [QTY]

Fuel hose 1

[Name] [Note] [QTY]

Hexagon bolt M6X10 4

[Name] [QTY]

Injection valve 4

For vehicles with liquid gas operation (LPG)

mating connector

6R0973999B Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Temperature and pressure sensor for gas fuel rail 1

Temperature sensor

For vehicles with liquid gas operation (LPG)

mating connector

6R0973999A Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [Note] [QTY]

Hexagon bolt M6X16 2

[Name] [QTY]

rivetted cap nut 4

[Name] [QTY]

Fuel rail 1

For vehicles with liquid gas operation (LPG)

[Name] [QTY]

Solenoid valve 1

evaporator

mating connector

6R0972999B Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Retaining plate 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X60 2

[Name] [Note] [QTY]

Hex socket oval head collared M6X20 2

[Name] [Note] [QTY]

Hex socket oval head collared M6X20 2

[Name] [Note] [QTY]

Retaining plate 1

also use: 1J0 201 969 1

Accompanying details: 1J0201969

[Name] [QTY]

SEAT emblem 1

[Name] [Note] [QTY]

Gas line 226MM 1

For vehicles with liquid gas operation (LPG) cylinder 1

[Name] [Note] [QTY]

Gas line 226MM 1

For vehicles with liquid gas operation (LPG) cylinder 2

[Name] [Note] [QTY]

Gas line 193MM 1

For vehicles with liquid gas operation (LPG) cylinders 3,4

[Name] [Note] [QTY]

Securing ring 40X1,75 1

[Name] [Note] [QTY]

Spring band clamp B11,5X8,4 8

[Name] [Note] [QTY]

Bracket 2 point 1

[Name] [QTY]

Fuel rail 1

[Name] [Note] [QTY]

Locating bolt 6X30X15 2

[Name] [Note] [QTY]

Cap closure blue 1

[Name] [Note] [QTY]

Fuel line feed 1

[Name] [Note] [QTY]

Spring band clamp 14X12 1

[Name] [QTY]

Retaining clip 4

[Name] [QTY]

Injection valve 4

mating connector

06A973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

O-ring 7,52X3,53 4

[Name] [Note] [QTY]

O-ring 8,54X3,1 4

[Name] [Note] [QTY]

Sealing compound paste 200ML 1

[Name] [Note] [QTY]

Cable tie with hose retainer 7,0X213,5/23 X

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

seal ring D=10,2X1,5 1

[Name] [QTY]

Pipe insert 1

[Name] [Note] [QTY]

Clamp 9,5X5X0,5 1
