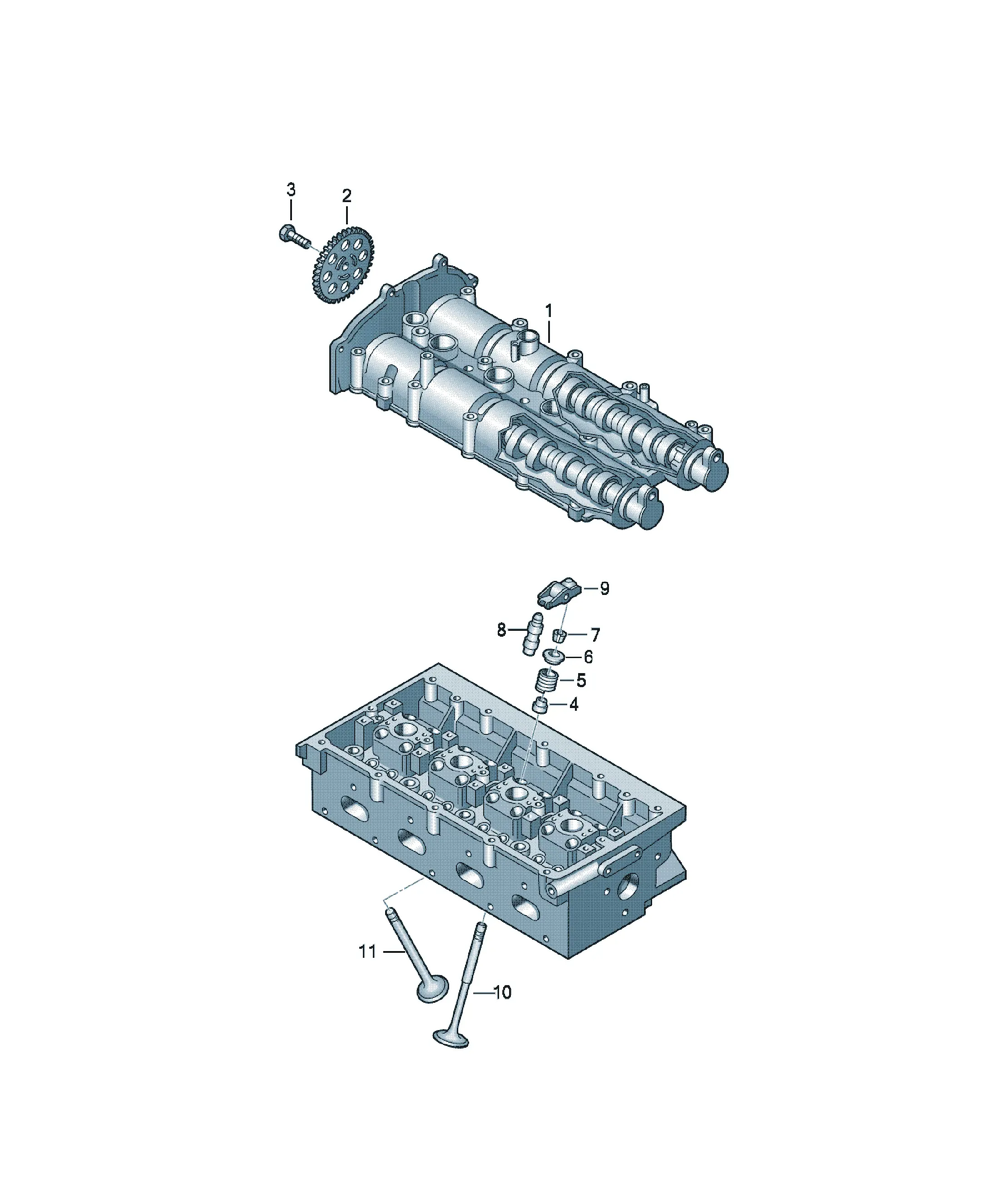

Valvetrain diagram

Parts

12 parts

[Name] [Note]
cylinder-head cover with camshaft
see illustration, item: 103-042,9
03C109601L Offers

[Name] [Note] [QTY]
Inlet valve 100,6 8
03C109611Q Offers

[Name] [Note] [QTY]
exhaust valve 100,6 8
03C109571F Offers

[Name] [QTY]
Chain sprocket 2
N90256202 Offers

[Name] [Note] [QTY]
Hexagon bolt M10X1,25X30 2
036109675A Offers

[Name] [Note] [QTY]
Valve stem seal Inlet 8
03C109675B Offers

[Name] [Note] [QTY]
Valve stem seal Outlet 8
036109623N Offers

[Name] [QTY]
Valve spring 16
036109641B Offers

[Name] [Note] [QTY]
spring disc upper 16
036109651A Offers

[Name] [QTY]
cotter, split 32
030109423 Offers

[Name] [QTY]
equalizing element, hydraulic 16
036109411K Offers

[Name] [QTY]
roller rocker arm 16
