Valves

Valve train

Assembly diagrams

9 diagrams

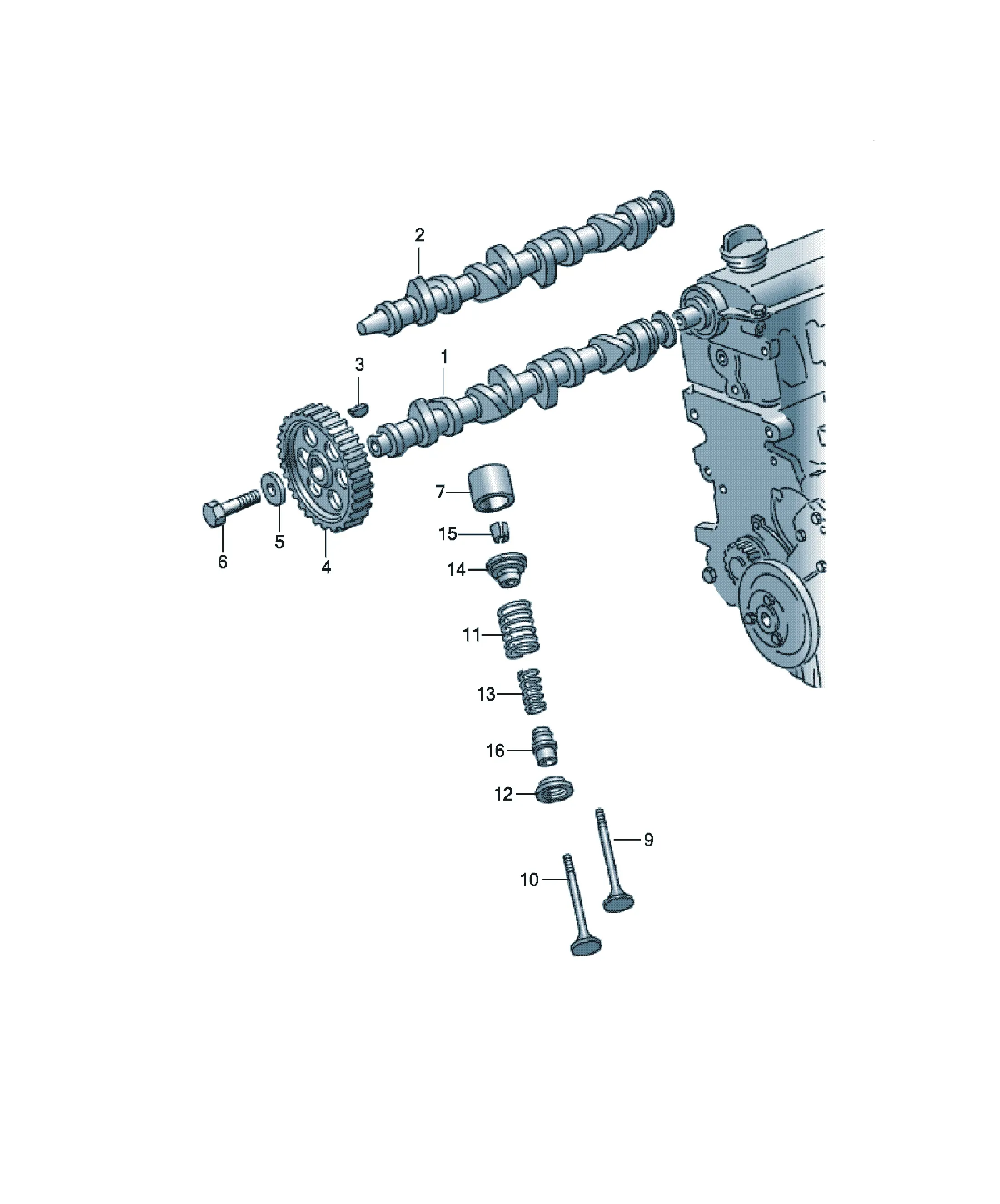

Valve train diagram

Parts

15 parts

050109101P Offers

[Name] [QTY]
Camshaft 1
048109611B Offers

[Name] [Note] [QTY]
exhaust valve 91,15 4
078109623C Offers

[Name] [QTY]
Valve spring 8
[Name]
Not for this model
[Name]
Not for this model
078109641C Offers

[Name] [Note] [QTY]
spring disc upper 8
021109651 Offers

[Name] [QTY]
cotter, split 16
027109675 Offers

[Name] [Note] [QTY]
Valve stem seal 7MM 8
[Name]
Not for this model
N0127082 Offers

[Name] [Note] [QTY]
woodruff key 4X5 1
06A109105D Offers

[Name] [QTY]
toothed belt pulley 1
[Name]
Not for this model
N90634001 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M12X1,5X30 1
050109309H Offers

[Name] [QTY]
Tappets 8
078109601E Offers

[Name] [Note] [QTY]
Inlet valve 91,9 4
