Dryer

A/C condenser

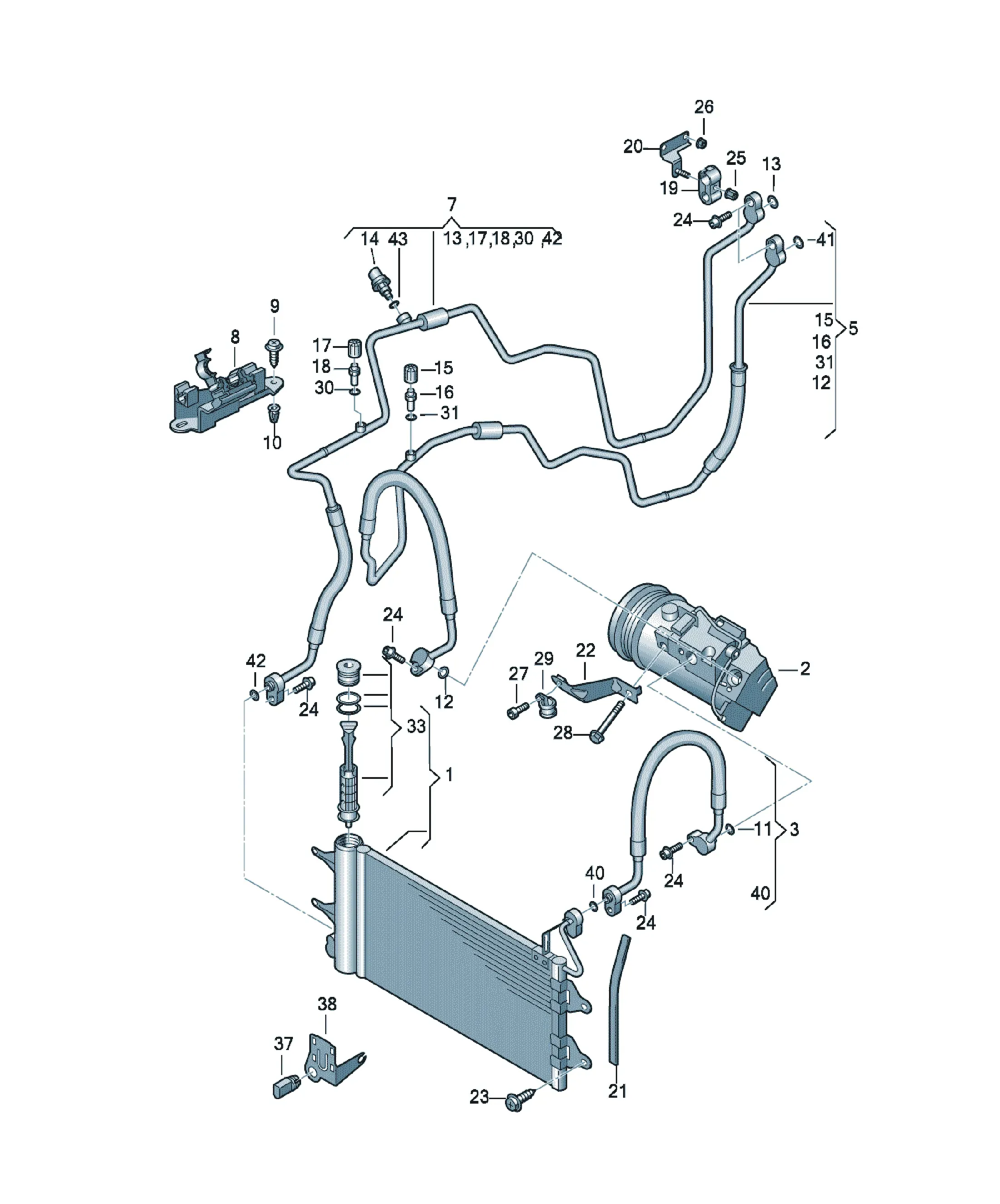

Assembly diagrams

3 diagrams

Parts

82 parts

Фиксатор
6R0820055A Offers

[Name] [Note] [QTY]
Clip lhd 2
Датчик наружной температуры
8Z0820535 Offers

[Name] [Note] [QTY]
External temperature sensor 9,5X2,5 1
mating connector
1J0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
8K0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
6R0820411T Offers

[Name] [Note] [QTY]
A/C condenser with dryer MODINE 1
6R0820411Q Offers

[Name] [QTY]
A/C condenser with dryer 1
6R0820411Q Offers

[Name] [Note] [QTY]
A/C condenser with dryer BEHR 1
MAHLE
811807577C Offers

[Name] [Note] [QTY]
insert nut 5X16 1
811807577C Offers

[Name] [QTY]
insert nut 2
4E0260749A Offers

[Name] [Note] [Model info] [QTY]
seal ring 11X2,5 PR:TF0,TF3 1
8E0260749 Offers

[Name] [Note] [QTY]
O-ring 10,8X1,82 1
8E0260749 Offers

[Name] [Note] [Model info] [QTY]
O-ring 10,8X1,82 PR:T18,T70, 1
TF4,TG0,TT0,
TT1
8E0260749C Offers

[Name] [Note] [QTY]
seal ring 23,8X2,4 1
8E0260749 Offers

[Name] [Note] [QTY]
O-ring 10,8X1,82 1
5K0959126 Offers

[Name] [QTY]
Pressure sensor 1
for vehicles with air condit.
mating connector
8K0973703 Flat contact housing with contact locking mechanism 3 pin 1
black
5K0959126 Offers

[Name] [QTY]
Pressure sensor 1
mating connector
8K0973703 Flat contact housing with contact locking mechanism 3 pin 1
black
3C0820231 Offers

[Name] [QTY]
Protective cap 1
8E0820855 Offers

[Name] [QTY]
Evacuating and charging valve 1
3C0820581 Offers

[Name] [QTY]
Protective cap 1
8E0820855 Offers

[Name] [QTY]
Evacuating and charging valve 1
6R0820055A Offers

[Name] [QTY]
Clip 1
6R0820055A Offers

[Name] [Note] [QTY]
Clip lhd 2
[Name] [Note] [Model info]
see illustration: 260-010 BTS,CNKA,
CEKA,VAVE,
CAVF
260-012 CGPA,CGPB
260-014 CGGB
260-015 CAYC,CAYB,
CLNA
6R0816811 Offers

[Name] [QTY]
bracket for refrigerant hose 1
6R0816811 Offers

[Name] [Note] [QTY]
bracket for refrigerant hose lhd 1
321820061D Offers

[Name] [Note] [QTY]
Seal 1220X12X10 2
321820061D Offers

[Name] [Note] [QTY]
Seal 1220X12X10 1
6Q0820769D Offers

[Name] [QTY]
bracket for refrigerant pipe 1
N90817003 Offers

[Name] [Note] [QTY]
Hexagon socket head panel bolt 6X17 4
N10414402 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M8X28 X
N90455301 Offers

[Name] [Note] [QTY]
Hexagon collar nut 5 X
N10115307 Offers

[Name] [Note] [QTY]
Socket head bolt M6X12 1
N10115307 Offers

[Name] [Note] [QTY]
Socket head bolt M6X12 X
N90707502 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X100X41 1
N90707502 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X100X41 X
N0206474 Offers

[Name] [Note] [QTY]
Clamp 24X15 1
N0206474 Offers

[Name] [Note] [QTY]
Clamp D1-24X15 X
6R0820721E Offers

[Name] [Model info] [QTY]
Refrigerant line CGPA,CGPB 1
6R0820721T Offers

[Name] [QTY]
Refrigerant line 1
(A/C compressor > A/C condenser)
6R0820721 Offers

[Name] [Model info] [QTY]
Refrigerant line CAYC,CYAB, 1
6R0820721J Offers

[Name] [QTY]
Refrigerant line 1
6R0820721H Offers

[Name] [Model info] [QTY]
Refrigerant line CAVE,CAVF, 1
CTFH,CTJB,
CNUB,CTHE
6J0820721A Offers

[Name] [Model info] [QTY]
Refrigerant hose PR:CEKA+9AK 1
(A/C compressor > A/C condenser) 9AB
6R0820721C Offers

[Name] [Model info] [QTY]
Refrigerant line BTS,CNKA 1
(A/C compressor > A/C condenser)
7H0820898 Offers

[Name] [Note] [QTY]
O-ring 14,3X2,4 1
8E0260749 Offers

[Name] [Note] [QTY]
O-ring 10,8X1,82 1
6R0898191 Offers

[Name] [Note] [QTY]
Dryer insert with attachment parts BEHR 1
MAHLE
only to be used for: 6R0 820 411 Q
repair set
Drier 1
sealing plug 1
seal ring 2
8X0898191 Offers

[Name] [Note] [QTY]
Dryer insert with attachment parts MODINE 1
only to be used for: 6R0 820 411 T
repair set
Cover cap aluminium 1
Securing ring 1
catch 1
Drier 1
filter element 1
seal ring 2
6R0898191 Offers

[Name] [QTY]
Dryer insert with attachment parts 1
repair set
Drier 1
sealing plug 1
seal ring 2
8Z0820535 Offers

[Name] [QTY]
External temperature sensor 1
mating connector
1J0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
8K0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
8Z0820535 Offers

[Name] [Note] [QTY]
External temperature sensor 9,5X2,5 1
mating connector
1J0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
8K0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
5M0820536A Offers

[Name] [QTY]
Bracket for external temperature sensor 1
4E0260749A Offers

[Name] [Note] [QTY]
seal ring 11X2,5 1
7H0820898 Offers

[Name] [Note] [QTY]
O-ring 14,3X2,4 1
3D0260749C Offers

[Name] [Note] [QTY]
seal ring 9,5X2,5 1
8E0260749 Offers

[Name] [Note] [QTY]
O-ring 10,8X1,82 1
6R1820743AH Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line lhd
(Expansion valve > A/C compressor > A/C condenser)
CGPA,CGPB 1
6R1820743AB Offers

[Name] [Note] [Model info] [QTY]
Refrigerant hose lhd CAVE,CAVF, 1
(Expansion valve > A/C compressor > A/C condenser) CTFH,CTJB,
CNUB,CTHE
6R1820743J Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line lhd CAYB,CAYC, 1
(Expansion valve > A/C compressor > A/C condenser) CLNA
6J1820743A Offers

[Name] [Note] [Model info] [QTY]
Refrigerant hose lhd CEKA 1
(Expansion valve > A/C compressor > A/C condenser)
6R2820743AG Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line rhd BTS,CKNA 1
(Expansion valve > A/C compressor > A/C condenser)
6R1820743AF Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line lhd
(Expansion valve > A/C compressor > A/C condenser)
D - 06.03.2012>> BTS,CNKA 1
6R2820743AR Offers

[Name] [Note] [Model info] [QTY]
Refrigerant hose rhd CAVE,CAVF, 1
(Expansion valve > A/C compressor > A/C condenser) CTHF,CTJB,
CNUB
6R2820743AF Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line rhd CAYC,CAYB, 1
(Expansion valve > A/C compressor > A/C condenser) CLNA
6R2820743T Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line rhd CGPA,CGPB 1
(Expansion valve > A/C compressor > A/C condenser)
6R2820743AE Offers

[Name] [Note] [QTY]
Refrigerant line rhd 1
(Expansion valve > A/C compressor > A/C condenser)
6R1820743K Offers

[Name] [Note] [QTY]
Refrigerant line lhd 1
(Expansion valve > A/C compressor > A/C condenser)
6R1820743C Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line lhd
(Expansion valve > A/C compressor > A/C condenser)
D >> - 05.03.2012 BTS,CNKA 1
6R2820743S Offers

[Name] [Note] [QTY]
Refrigerant line rhd 1
(Expansion valve > A/C compressor)
6R1820743AG Offers

[Name] [Note] [QTY]
Refrigerant line lhd
(Expansion valve > A/C compressor)
6R1820741P Offers

[Name] [Note] [QTY]
Refrigerant line lhd 1
(Expansion valve > A/C condenser)
6R1820741P Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line lhd BTS,CNKA, 1
(Expansion valve > A/C compressor) CGPB,CGPA
6R1820741N Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line lhd CAYB,CAYC, 1
(Expansion valve > A/C compressor) CLNA
6R2820741AA Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line rhd BTS,CNKA, 1
(Expansion valve > A/C compressor) CGPB,CGPA,
6R2820741AC Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line rhd CAVE,CAVF, 1
(Expansion valve > A/C compressor) CTHF,CTJB,
CNUB
6R2820741T Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line rhd CAYC,CAYB, 1
(Expansion valve > A/C compressor) CLNA
6J1820741D Offers

[Name] [Note] [Model info] [QTY]
Refrigerant hose lhd CEKA 1
(Expansion valve > A/C compressor)
6R1820741R Offers

[Name] [Note] [Model info] [QTY]
Refrigerant line lhd CAVE,CAVF, 1
(Expansion valve > A/C compressor) CTHF,CTJB,
CNUB,CTHE
6R2820741AA Offers

[Name] [Note] [QTY]
Refrigerant line rhd 1
(Expansion valve > A/C condenser)
6R2820741T Offers

[Name] [Note] [QTY]
Refrigerant line rhd 1
(Expansion valve > A/C compressor)
6R1820741N Offers

[Name] [Note] [QTY]
Refrigerant line lhd 1
(Expansion valve > A/C compressor)
6Q0820771B Offers

[Name] [QTY]
bracket for refrigerant hose 1
N90974701 Offers

[Name] [Note] [QTY]
Hexagon socket head panel bolt 5X16 1
N01396921 Offers

[Name] [Note] [QTY]
oval head panel screw 4,8X16 2
