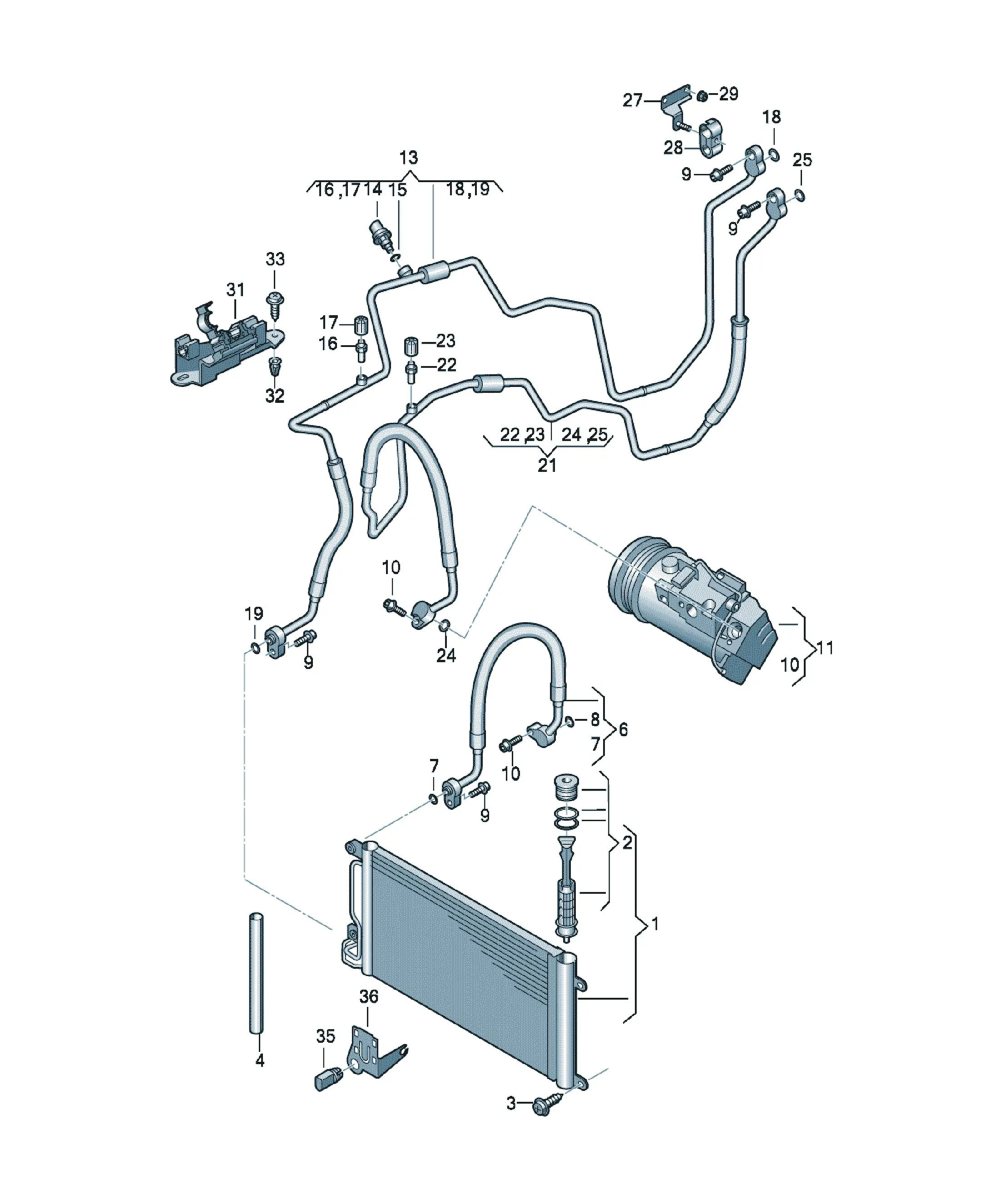

A/C condenser

[Name] [QTY]

A/C condenser with dryer 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M8X28 4

[Name] [Note] [Model info] [QTY]

A/C compressor 4-cylinder+ 1

see illustration, item: 260-017,1 Petr. engine

[Name] [Note] [Model info] [QTY]

Refrigerant line rhd PR:TK8,TW0 1

(Expansion valve > A/C condenser)

[Name] [Note] [Model info] [QTY]

Refrigerant line lhd PR:TK8,TW0 1

(Expansion valve > A/C condenser)

[Name] [QTY]

Pressure sensor 1

for vehicles with air condit.

mating connector

8K0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

O-ring 10,8X1,82 1

[Name] [QTY]

Evacuating and charging valve 1

[Name] [Note] [QTY]

Protective cap M10 1

[Name] [Note] [QTY]

Protective cap M8 X

[Name] [Note] [QTY]

O-ring 10,8X1,82 1

[Name] [Note] [QTY]

seal ring 9,5X2,5 X

[Name] [Note] [QTY]

Dryer insert with attachment parts BEHR 1

repair set

Drier 1

sealing plug 1

seal ring 2

[Name] [Note] [Model info] [QTY]

Refrigerant line lhd PR:TK8 1

(Expansion valve > A/C compressor)

[Name] [Note] [Model info] [QTY]

Refrigerant line rhd PR:TW0 1

(Expansion valve > A/C compressor)

[Name] [Note] [Model info] [QTY]

Refrigerant line lhd PR:TW0 1

(Expansion valve > A/C compressor)

[Name] [Note] [Model info] [QTY]

Refrigerant line rhd PR:TK8 1

(Expansion valve > A/C compressor)

[Name] [QTY]

Evacuating and charging valve 1

[Name] [QTY]

Protective cap 1

[Name] [Note] [QTY]

seal ring 23,8X2,4 X

[Name] [Note] [QTY]

O-ring 14,3X2,4 X

[Name] [QTY]

bracket for refrigerant hose 1

[Name] [QTY]

Clip 1

[Name] [Note] [QTY]

Hexagon nut M8 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X17 4

[Name] [QTY]

bracket for refrigerant hose 1

[Name] [QTY]

insert nut 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 5X16 2

[Name] [Note] [QTY]

External temperature sensor NW-8 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Bracket for external temperature sensor NW-8 1

[Name] [Note] [QTY]

Seal 1220X12X10 2

[Name] [Model info] [QTY]

Refrigerant line PR:TK8 1

(A/C compressor > A/C condenser)

[Name] [Model info] [QTY]

Refrigerant line PR:TW0 1

(A/C compressor > A/C condenser)

[Name] [Note] [QTY]

seal ring 11X2,5 1

[Name] [Note] [QTY]

seal ring 11X2,5 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M8X28 4
