Brake hoses and pipes

Brake pipe

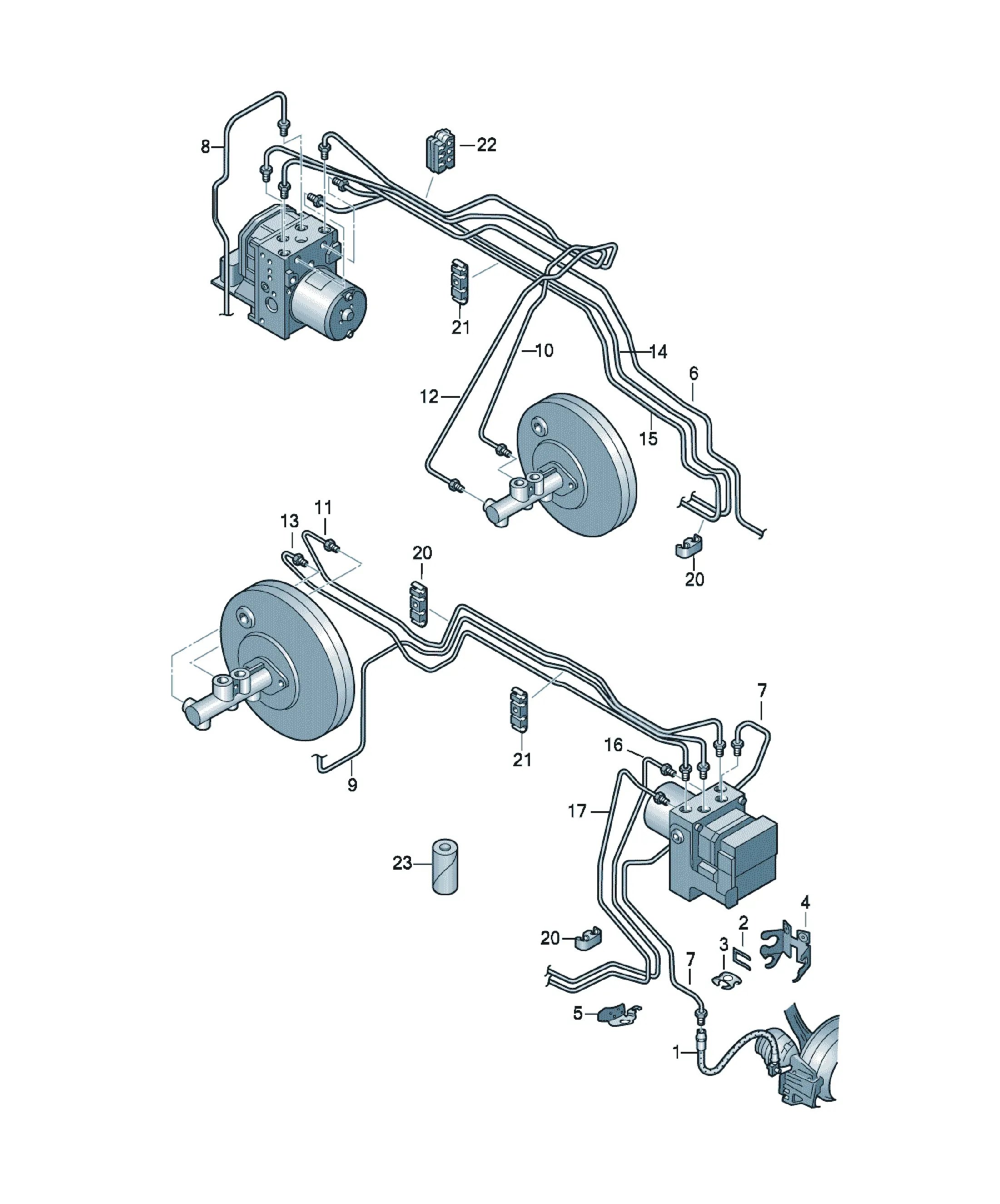

Assembly diagrams

2 diagrams

Parts

45 parts

6R0611701F Offers

[Name] [Note] [QTY]
Brake hose 540MM 2
6R1614739G Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd 1
D >> - 05.11.2012
6R1614739F Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd 1
D >> - 05.11.2012
6R1614739J Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd 1
D >> - 05.11.2012
6R1614739AB Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd 1
D - 05.11.2012>>
6R1614739H Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd 1
D >> - 05.11.2012
6R1614739AA Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd 1
D - 05.11.2012>>
6R1614739AC Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd 1
D - 05.11.2012>>
6R2614739Q Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd 1
D - 05.11.2012>>
6R2614739R Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd 1
D - 05.11.2012>>
6R2614739AC Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd 1
D >> - 05.11.2012
6R2614739AB Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd 1
6R1614740AB Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd PR:1AC 1
D - 05.11.2012>>
6R1614740AC Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd PR:1AT 1
D - 05.11.2012>>
6R1614740F Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd PR:1AC 1
D >> - 05.11.2012
6R1614740AA Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd PR:1AC 1
D - 05.11.2012>>
6R1614740G Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd PR:1AT 1
D >> - 05.11.2012
6R1614740AA Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd PR:1AT 1
D - 05.11.2012>>
6R1614740H Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd PR:1AC 1
D >> - 05.11.2012
6R1614740J Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd PR:1AT 1
D >> - 05.11.2012
6R2614740Q Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd PR:1AC 1
D - 05.11.2012>>
6R2614740AB Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd PR:1AC 1
D >> - 05.11.2012
6R2614740R Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd PR:1AT 1
D - 05.11.2012>>
6R2614740AC Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd PR:1AT 1
D >> - 05.11.2012
6R1614741A Offers

[Name] [Note] [QTY]
Brake pipe from hydraulics to brake hose lhd 1
centre left
6R1614742A Offers

[Name] [Note] [QTY]
Brake pipe from hydraulics to brake hose lhd 1
centre right
6Q2614741K Offers

[Name] [Note] [QTY]
Brake pipe from hydraulics to brake hose rhd 1
centre right
6Q2614742L Offers

[Name] [Note] [QTY]
Brake pipe from hydraulics to brake hose rhd 1
left front
191611715 Offers

[Name] [QTY]
Hose bracket 1
8K0611797D Offers

[Name] [Note] [QTY]
Clip 2 point X
6R0611797D Offers

[Name] [Note] [QTY]
Clip 2 point X
6R0611797C Offers

[Name] [Note] [QTY]
Bracket 4 point 1
rhd
1J0611797J Offers

[Name] [Note] [QTY]
Bracket 3 point 1
rhd
8K0611797F Offers

[Name] [Note] [QTY]
Bracket 3 point X
lhd
6Q0611797L Offers

[Name] [Note] [QTY]
Bracket 6-pin X
4D0611715B Offers

[Name] [QTY]
retaining spring 6
6R0611841A Offers

[Name] [Note] [QTY]
Retainer for brake hose left a. right 1
Suspension strut pipe
6Q0611846E Offers

[Name] [Note] [QTY]
Retainer for brake hose right 1
Wheel housing
6Q0611845E Offers

[Name] [Note] [QTY]
Retainer for brake hose left 1
Wheel housing
6R1614723A Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from hydraulics to brake hose lhd PR:1AC,1AT 1
6Q2614723G Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from hydraulics to brake hose rhd PR:1AT 1
6R1614724 Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from hydraulics to brake hose PR:1AC,1AT 1
lhd
6R2614724D Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from hydraulics to brake hose rhd PR:1AC 1
D >> - 22.10.2012
6R2614724G Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from hydraulics to brake hose rhd PR:1AC 1
D - 22.10.2012>>
6Q2614724L Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from hydraulics to brake hose rhd PR:1AC,1AT 1
