Brake hoses and pipes

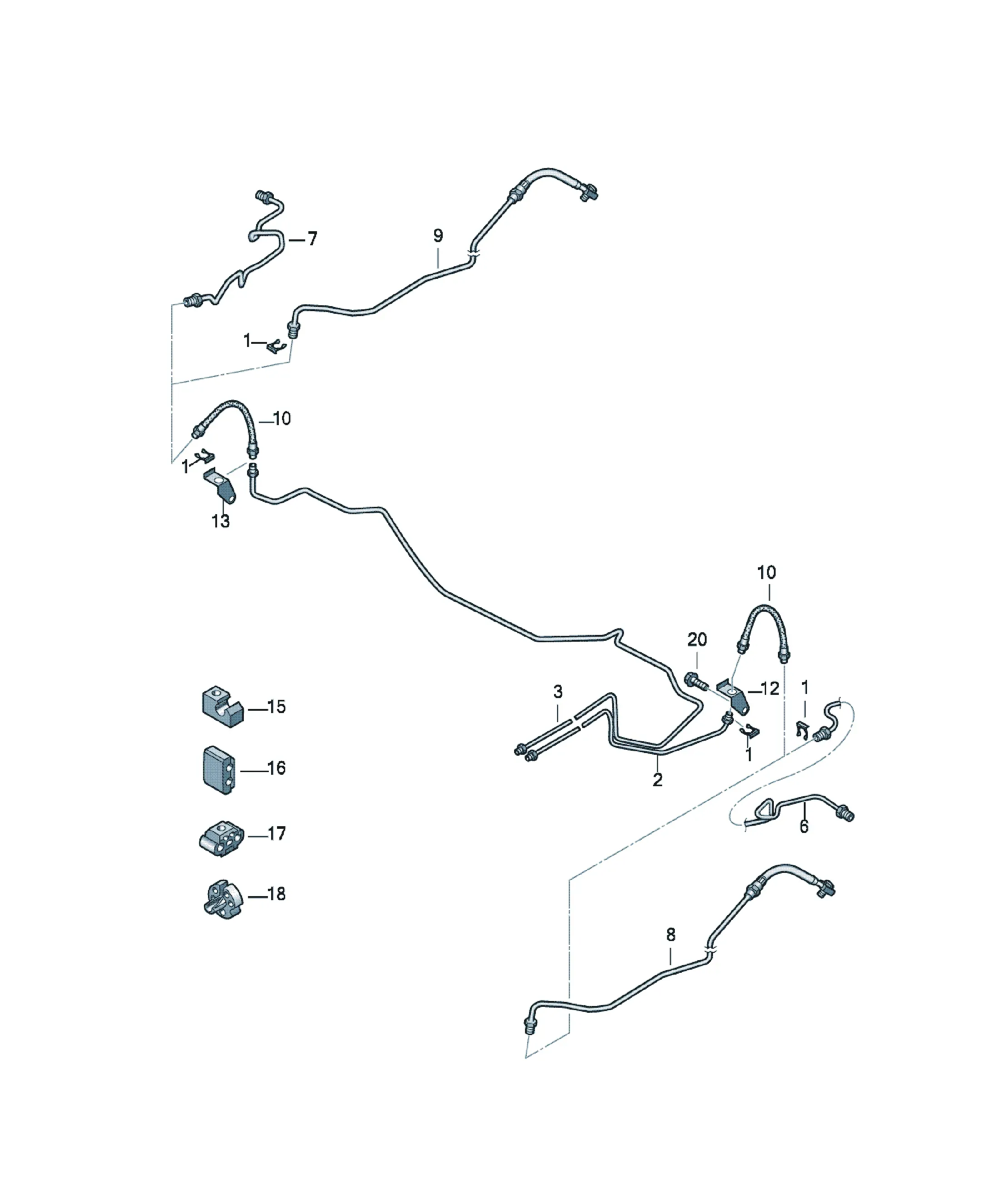

Brake line

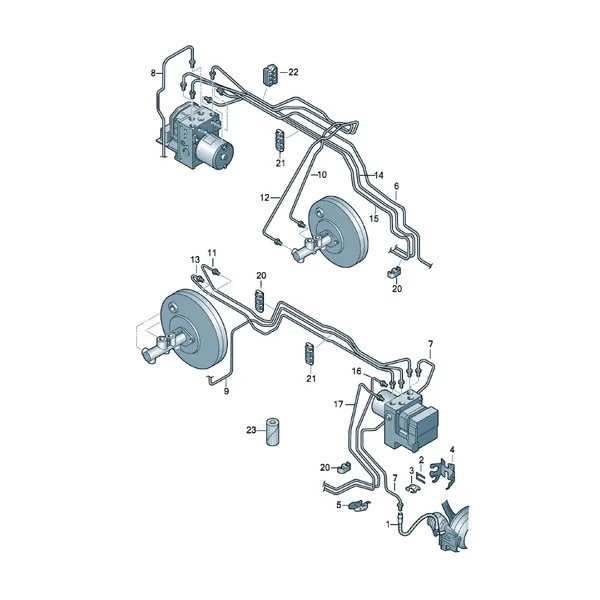

Assembly diagrams

2 diagrams

18 parts

191611715 Offers

[Name] [QTY]
Hose bracket 4
6Q0611775B Offers

[Name] [QTY]
Brake hose 2
6Q0611847E Offers

[Name] [Note] [QTY]
Retainer for brake hose left rear 1
Brake hose
6Q0611844B Offers

[Name] [Note] [QTY]
Retainer for brake hose right rear 1
Brake hose
5Q0611797B Offers

[Name] [Note] [QTY]
Retainer for brake pipe 1 point X
8K0611797D Offers

[Name] [Note] [QTY]
Clip 2 point X
1H0611797 Offers

[Name] [Note] [QTY]
Bracket 3 point X
1J0611797A Offers

[Name] [Note] [QTY]
Retainer for brake pipe 3 point X
1J0611853 Offers

[Name] [QTY]
Bracket 3
6Q2614741K Offers

[Name] [Note] [QTY]
Brake pipe from hydraulics to brake hose rhd 1
6R1614741A Offers

[Name] [Note] [QTY]
Brake pipe from hydraulics to brake hose lhd 1
N10225202 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X12 1
6Q2614742L Offers

[Name] [Note] [QTY]
Brake pipe from hydraulics to brake hose rhd 1
6R1614742A Offers

[Name] [Note] [QTY]
Brake pipe from hydraulics to brake hose lhd 1
6R0611763 Offers

[Name] [Note] [Model info] [QTY]
brake line from brake hose to wheel cylinder left rear PR:1KM 1
6R0611764 Offers

[Name] [Note] [Model info] [QTY]
brake line from brake hose to wheel cylinder right rear PR:1KM 1
6C0614749 Offers

[Name] [Model info] [QTY]
brake pipe/hose from brake hose to brake caliper housing PR:1KV,1KT 1
6C0614750 Offers

[Name] [Model info] [QTY]
brake pipe/hose from brake hose to brake caliper housing PR:1KT,1KV 1
