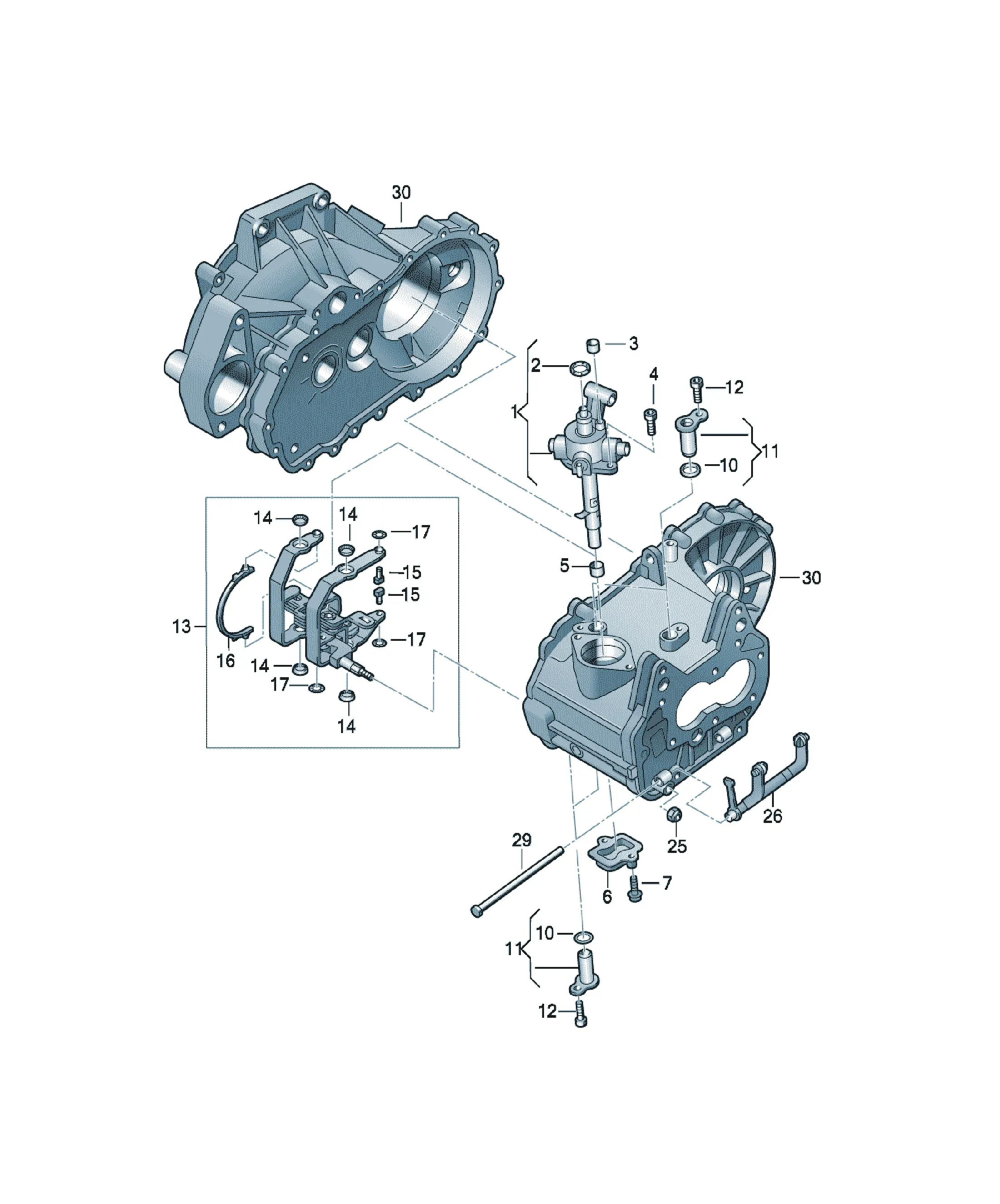

Gear selection mechanism

[Name] [QTY]

Switch unit 1

[Name] [Note] [QTY]

O-ring 14X2 4

[Name] [QTY]

Mounting pin 4

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X20,5 2

[Name] [QTY]

Selector fork group with gear- shift rail 1

[Name] [Note] [QTY]

angular ball bearing 11,8X8,5X21 4

[Name] [Note] [QTY]

shift segment 1st-4th gear 2

[Name] [Note] [QTY]

shift segment 3./4.gear 1

[Name] [Note] [QTY]

Clamping washer 7X15 4

[Name] [Note] [QTY]

Shaft oil seal 24,3X6,4 1

[Name] [Note] [QTY]

Hexagon collar nut self-locking M8 1

[Name] [Note] [QTY]

Selector fork 5-speed 1

[Name] [Note] [QTY]

bearing pin 5-speed 1

[Name] [QTY]

Cap for venting the gearbox 1

[Name] [Note]

Gear housing

see illustration: 301-033

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X20,5 2

[Name] [QTY]

bush 1

[Name] [QTY]

End cap 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M6X38 2
