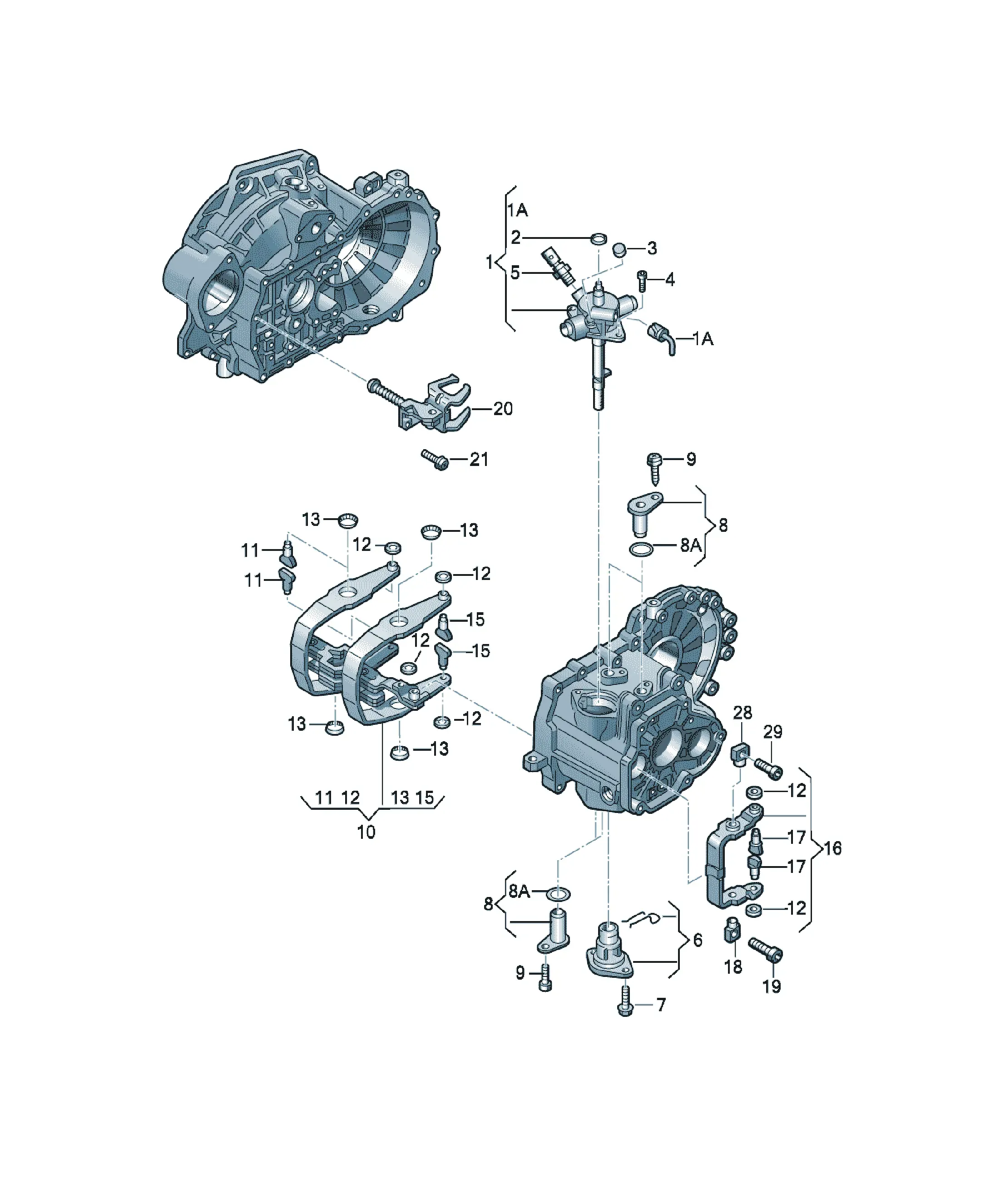

Gear selection mechanism

[Name] [QTY]

Switch unit 1

[Name] [QTY]

Selector fork group with gear- shift rail 1

D >> - 04.08.2013

[Name] [QTY]

Selector fork group with gear- shift rail 1

D - 05.08.2013>>

[Name] [Note] [QTY]

shift segment 1./2.gear 2

[Name] [Note] [QTY]

Clamping washer 7X15 6

[Name] [Note] [QTY]

angular ball bearing 11,8X8,5X21 4

[Name] [Note] [QTY]

shift segment 3./4.gear 2

[Name] [Note] [QTY]

Selector fork 5.GANG 1

[Name] [Note] [QTY]

shift segment 5-speed 2

[Name] [Note] [QTY]

bearing for selector fork 5-speed 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X35 2

[Name] [QTY]

detent pin 1

[Name] [Note] [QTY]

Shaft oil seal 24,3X6,4 1

[Name] [Note] [QTY]

Selector fork Reverse gear 1

[Name] [Note] [QTY]

Hex socket head locating bolt M8X35X24 1

[Name] [Note] [QTY]

bearing for selector fork 5-speed 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X35 2

[Name] [QTY]

Cap for venting the gearbox 1

[Name] [Note] [QTY]

Flat head multi-point socket bolt M8X25 2

[Name] [Note] [QTY]

switch for reversing light 2 pin 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

End cap 1

[Name] [Note] [QTY]

Flat head multi-point socket bolt M8X25 2

[Name] [QTY]

Mounting pin 4

[Name] [Note] [QTY]

O-ring 14X2 4

[Name] [Note] [QTY]

Oval hexagon socket head bolt M8X22 4
