Radiator, fan

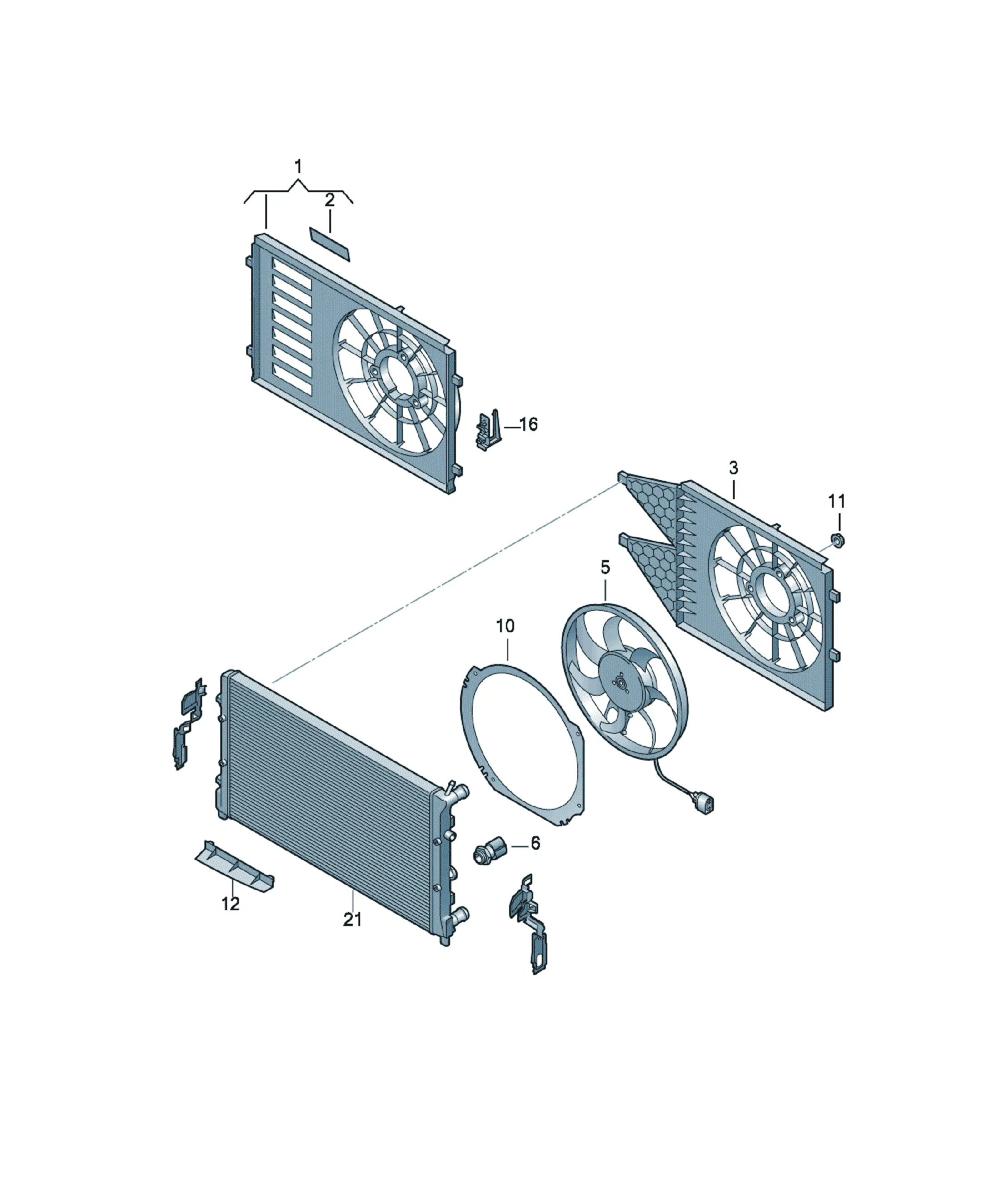

Fan diffuser

Assembly diagrams

5 diagrams

10 parts

6R0121207L Offers

[Name] [QTY]
Fan ring 1
for vehicle use in warm climates
6R0121217 Offers

[Name] [QTY]
Air duct ring 1
N02300213 Offers

[Name] [Note] [QTY]
hexagon nut, self-locking M6 1
[Name]
No replacement part
6R0971830 Offers

[Name] [QTY]
bracket for connector housing 1
Radiator fan
[Name]
No replacement part
[Name] [Note]
Cooler for coolant
see illustration, item: 121-078,8
6R0121207Q Offers

[Name] [QTY]
Fan ring 1
for vehicle use in cold and moderate climates
[Name] [Note]
Radiator fan
see illustration: 959-050
1J0959481A Offers

[Name] [Note] [QTY]
dual thermo-switch 95-84C/102-91C 1
3 pin
mating connector
1J0973203 Flat contact housing with contact locking mechanism 3 pin 1
