Radiator, fan

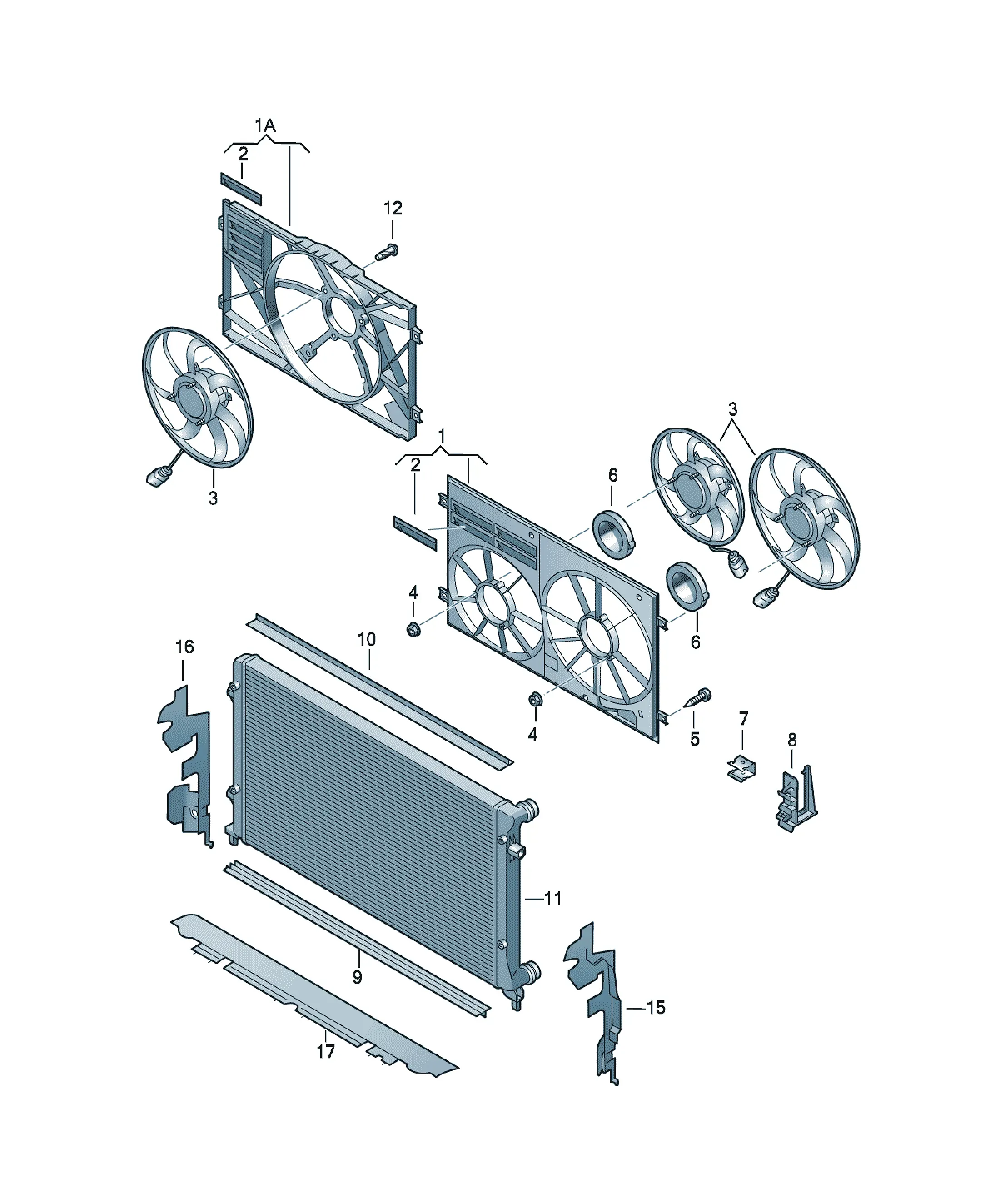

Cooling fan shroud

Assembly diagrams

5 diagrams

Parts

26 parts
  • 6C0121207A Offers

    [Name] [QTY]

    Fan ring 1

    D - 05.01.2015>>

  • 6R0121207R Offers

    [Name] [QTY]

    Twin fan ring 1

    D - 30.09.2013>> - 05.01.2015

  • 6R0121207F Offers

    [Name] [QTY]

    Twin fan ring 1

    D >> - 30.09.2013

  • [Name] [Note] [Model info]

    see illustration: 121-081 CAVE

  • [Name] [Note] [Model info]

    see illustration: 121-086 CFHD

  • 6J0121283B Offers

    [Name] [Note] [QTY]

    air duct cardboard left 1

    D >> - 20.02.2012

  • 6J0121283B Offers

    [Name] [Note] [QTY]

    air duct cardboard left 1

    D >> - 05.11.2012

  • 6J0121283E Offers

    [Name] [Note] [QTY]

    air duct cardboard left 1

    D - 05.11.2012>>

  • 6J0121283C Offers

    [Name] [Note] [QTY]

    air duct cardboard left 1

    D - 20.02.2012>>

  • 6J0121283D Offers

    [Name] [Note] [QTY]

    air duct cardboard left 1

    D - 20.02.2012>>

  • 6J0121283A Offers

    [Name] [Note] [QTY]

    air duct cardboard left 1

    D >> - 20.02.2012

  • 6J0121283C Offers

    [Name] [Note] [QTY]

    air duct cardboard left 1

  • 6J0121283D Offers

    [Name] [Note] [QTY]

    air duct cardboard left 1

  • 6J0121284B Offers

    [Name] [Note] [QTY]

    air duct cardboard right 1

    D >> - 05.11.2012

  • 6J0121284C Offers

    [Name] [Note] [QTY]

    air duct cardboard right 1

  • 6J0121284A Offers

    [Name] [Note] [QTY]

    air duct cardboard right 1

    D >> - 20.02.2012

  • 6J0121284C Offers

    [Name] [Note] [QTY]

    air duct cardboard right 1

    D - 20.02.2012>>

  • 6J0121284B Offers

    [Name] [Note] [QTY]

    air duct cardboard right 1

    D >> - 20.02.2012

  • 6J0121284D Offers

    [Name] [Note] [QTY]

    air duct cardboard right 1

    D - 20.02.2012>>

  • 6J0121284E Offers

    [Name] [Note] [QTY]

    air duct cardboard right 1

    D - 05.11.2012>>

  • 6J0121284D Offers

    [Name] [Note] [QTY]

    air duct cardboard right 1

  • [Name] [Note]

    see illustration: 959-050

  • N90887703 Offers

    [Name] [Note] [QTY]

    Hexagon flange nut, self-locking M6 3

  • N90817003 Offers

    [Name] [Note] [QTY]

    Hexagon socket head panel bolt 6X17 X

  • N91100701 Offers

    [Name] [Note] [QTY]

    Clip 15X14,2X9 X

  • 6R0971830 Offers

    [Name] [QTY]

    bracket for connector housing 1

    Radiator fan
