Shock absorbers

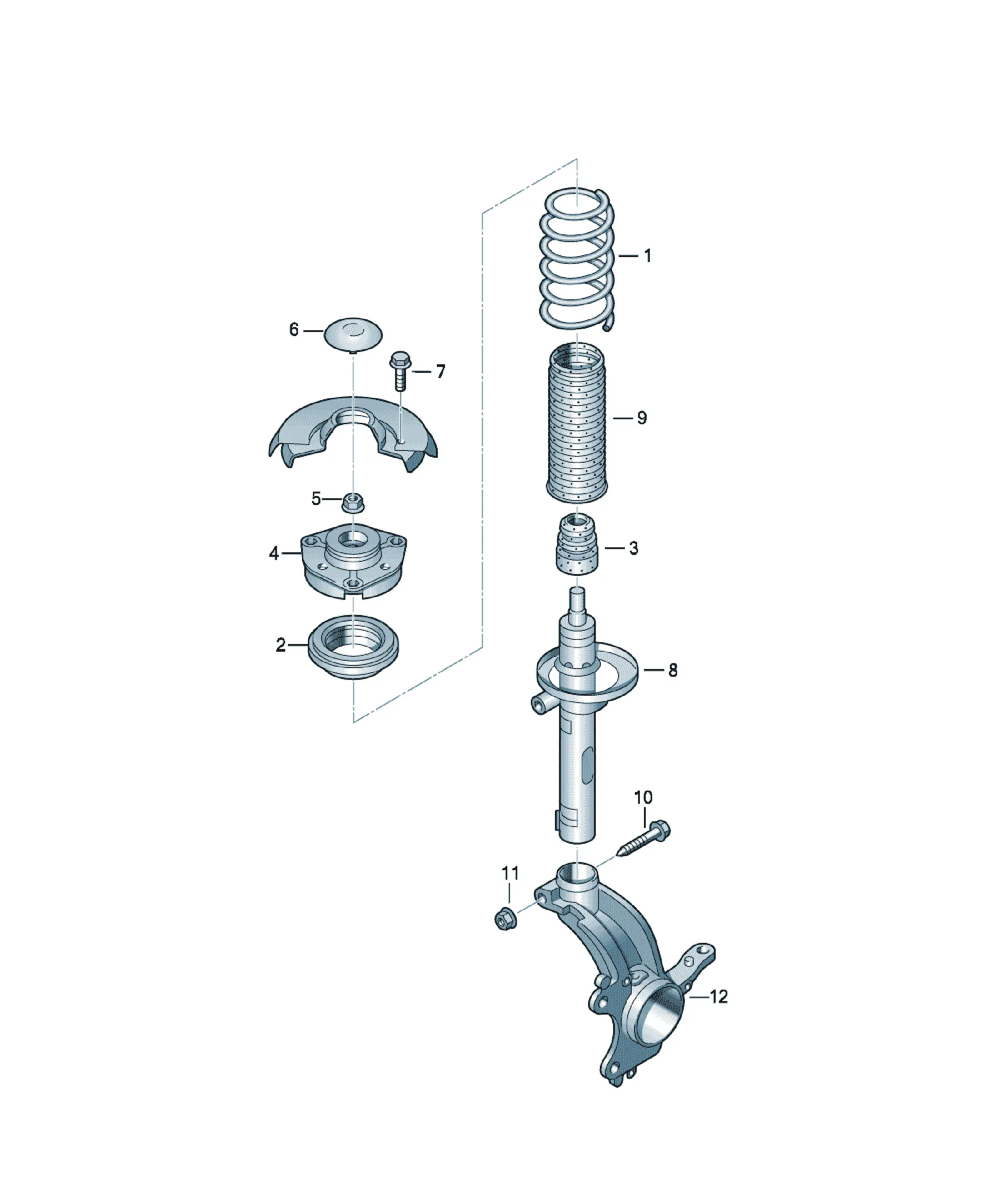

Front suspension

Assembly diagrams

4 diagrams

Parts

44 parts

1K0411105EJ Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D - 01.03.2010>> - 07.03.2011 PR:G34+L05 2
1 paint mark orange
1 paint mark white
2 paint marks green
also marked with:
4 colour strokes green
1 paint mark white
1K0411105EF Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D - 01.03.2010>> - 07.03.2011 PR:G02+L02 2
1 paint mark orange
1 paint mark white
1 paint mark blue
also marked with:
1 paint mark green
2 paint marks white
5N0411105AC Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G03+L07 2
for sports suspension
1 paint mark green
2 paint marks white
5N0411105AA Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D - 08.03.2011>> PR:G34+L05 2
1 paint mark green
3 paint marks red
5N0411105AA Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D >> - 28.02.2010 PR:G34+L05 2
1 paint mark green
3 paint marks red
5N0411105T Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G34+L04 2
1 paint mark green
2 paint marks red
5N0411105AD Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G03+L08 2
for sports suspension
1 paint mark green
3 paint marks white
5N0411105R Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D - 08.03.2011>> PR:G34+L02 2
1 paint mark green
1 paint mark red
2 paint marks white
1K0411105EF Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D - 01.03.2010>> - 07.03.2011 PR:G34+L02 2
1 paint mark orange
1 paint mark white
1 paint mark blue
also marked with:
1 paint mark green
2 paint marks white
5N0411105R Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D >> - 28.02.2010 PR:G34+L02 2
1 paint mark green
1 paint mark red
2 paint marks white
5N0411105AB Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G02+L11 2
1 paint mark green
1 paint mark white
5N0411105AA Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D - 08.03.2011>> PR:G02+L05 2
1 paint mark green
3 paint marks red
1K0411105EJ Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D - 01.03.2010>> - 07.03.2011 PR:G02+L05 2
1 paint mark orange
1 paint mark white
2 paint marks green
also marked with:
4 colour strokes green
1 paint mark white
5N0411105AA Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D >> - 28.02.2010 PR:G02+L05 2
1 paint mark green
3 paint marks red
5N0411105T Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G02+L04 2
1 paint mark green
2 paint marks red
5N0411105S Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G02+L03 2
1 paint mark green
1 paint mark red
5N0411105R Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D - 08.03.2011>> PR:G02+L02 2
1 paint mark green
1 paint mark red
2 paint marks white
1K0411105DE Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G06+L17 2
1 paint mark red
3 paint marks violet
also marked with:
3 paint marks violet
1 paint mark pink
1K0411105BM Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G06+L16 2
3 paint marks violet
1 paint mark orange
1K0411105BG Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G06+L15 2
4 colour strokes yellow
also marked with:
1 paint mark Grey
4 colour strokes brown
5N0411105R Offers

[Name] [Note] [Model info] [QTY]
Coil spring
D >> - 28.02.2010 PR:G02+L02 2
1 paint mark green
1 paint mark red
2 paint marks white
5N0411105S Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G34+L03 2
1 paint mark green
1 paint mark red
5N0411105AG Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G03+L12 2
for sports suspension
1 paint mark green
1 paint mark white
2 paint marks yellow
5N0411105AF Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G03+L10 2
for sports suspension
1 paint mark green
1 paint mark white
1 paint mark yellow
5N0411105AE Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:G03+L09 2
for sports suspension
1 paint mark green
1 paint mark white
1 paint mark blue
N90954802 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M12X1,5X80 2
N10106402 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M12X1,5 2
[Name] [Note]
Wheel bearing housing
see illustration, item: 407-000,6
407-001,6
[Name] [Note]
Wheel bearing housing
see illustration, item: 407-005,6
407-006,6
1K0412249B Offers

[Name] [Note] [QTY]
Deep groove ball thrust bearng 2
optional: 6N0 412 249 E 2
Replacements: 6N0412249E
1K0412303M Offers

[Name] [Note] [Model info] [QTY]
rubber stop for shock absorber 80MM PR:G02,G03, 2
G34
1K0412303B Offers

[Name] [Note] [Model info] [QTY]
rubber stop for shock absorber 70MM PR:G06 2
1K0412303M Offers

[Name] [Note] [QTY]
rubber stop for shock absorber 80MM 2
1K0412331B Offers

[Name] [QTY]
suspension strut storage 2
N91021601 Offers

[Name] [Note] [QTY]
Hexagon collar nut M14X1,5 2
[Name]
Cover cap
Not for this model
N10127707 Offers

[Name] [Note] [QTY]
Hex collared bolt M8X26 6
5N0413031L Offers

[Name] [Model info] [QTY]
Gas shock absorber PR:G02+L05, 2
L11
Replacements: 5N0413031BP
5N0413031T Offers

[Name] [Model info] [QTY]
Gas shock absorber PR:G03+L07, 2
for sports suspension L08,L09
Replacements: 5N0413031BQ
5N0413031AA Offers

[Name] [Model info] [QTY]
Gas shock absorber PR:G03+L10, 2
for sports suspension L12
5N0413031K Offers

[Name] [Model info] [QTY]
Gas shock absorber PR:G02+L02, 2
L03,L04
Replacements: 5N0413031BN
5N0413031AD Offers

[Name] [Model info] [QTY]
Gas shock absorber PR:G06 2
Replacements: 5N0413031BB
5N0413031AC Offers

[Name] [Model info] [QTY]
Gas shock absorber PR:G34 2
Replacements: 5N0413031AK
6N0413175A Offers

[Name] [QTY]
Bellows 2
