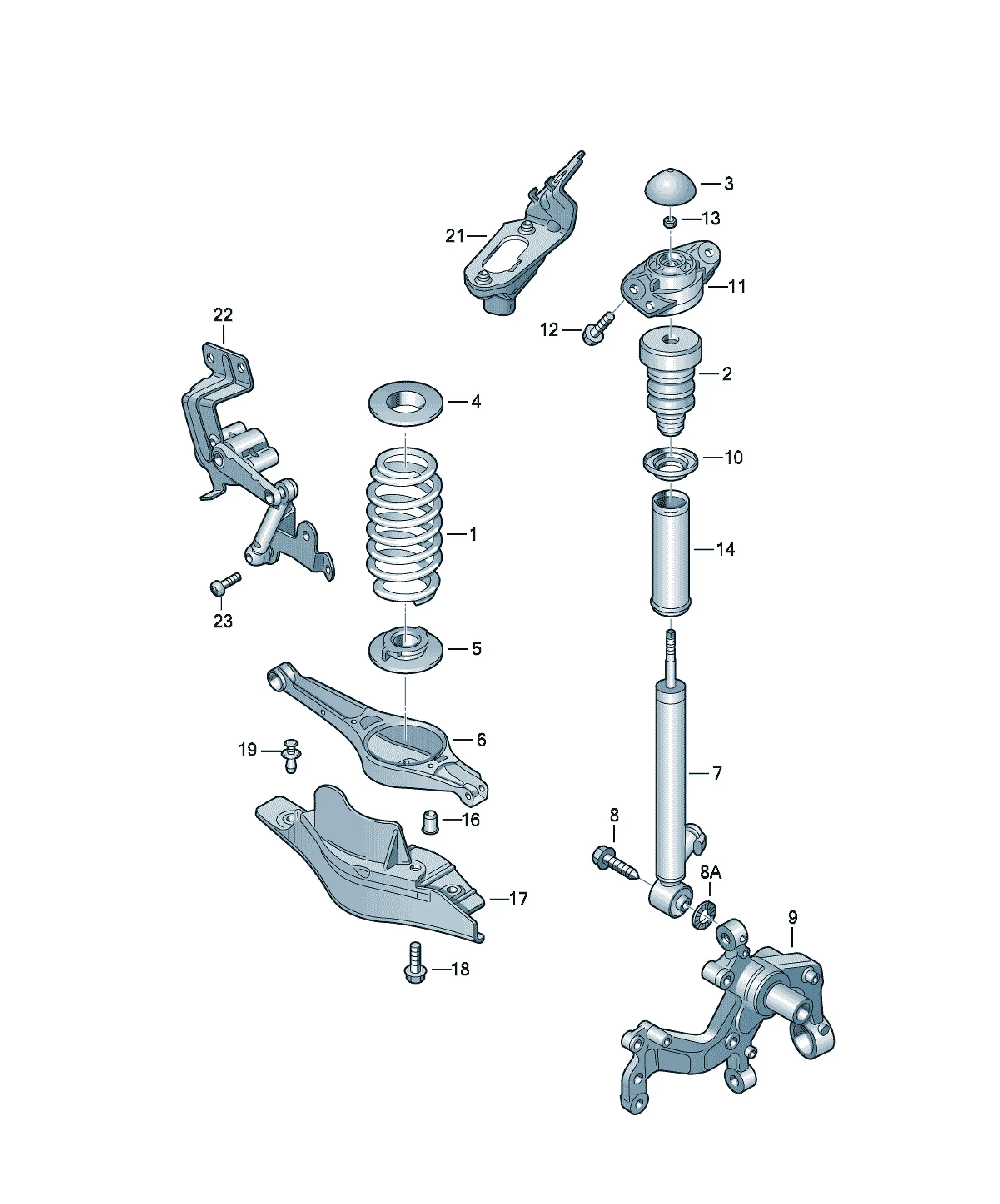

Rear suspension

[Name] [Note] [Model info] [QTY]

Coil spring rear PR:0YH 2

1 paint mark white

1 paint mark lilac

3 paint marks orange

[Name] [Note] [Model info] [QTY]

Coil spring rear PR:0YB 2

1 paint mark white

1 paint mark lilac

[Name] [Note] [Model info] [QTY]

Coil spring rear PR:0YC 2

1 paint mark white

1 paint mark lilac

1 paint mark yellow

[Name] [Note] [Model info] [QTY]

Coil spring rear PR:0YD 2

1 paint mark white

1 paint mark lilac

2 paint marks yellow

[Name] [Note] [Model info] [QTY]

Coil spring rear PR:0YE 2

1 paint mark white

1 paint mark lilac

3 paint marks yellow

[Name] [Note] [Model info] [QTY]

Coil spring rear PR:0YF 2

1 paint mark white

1 paint mark lilac

1 paint mark orange

[Name] [Note] [Model info] [QTY]

Coil spring rear PR:0YG 2

1 paint mark white

1 paint mark lilac

2 paint marks orange

[Name]

Not for this model

[Name] [Note] [QTY]

Shock absorber bearing upper 2

[Name] [Note] [QTY]

hexagon head bolt (combi) M10X35 4

[Name] [Note] [QTY]

hexagon nut, self-locking M10X1 2

[Name] [QTY]

protective pipe 2

[Name] [Note] [Model info] [QTY]

rivetted cap nut M6/0,5-3 PR:1SK,1SL 6

[Name] [Note] [Model info] [QTY]

Stone chip guard right PR:1SK,1SL 1

[Name] [Note] [Model info] [QTY]

Stone chip guard left PR:1SK,1SL 1

[Name] [Note] [Model info] [QTY]

hexagon head bolt (combi) M6X12 PR:1SK,1SL 6

[Name] [Note] [Model info] [QTY]

Spreader rivet 8MM PR:1SK,1SL 4

[Name] [Note] [Model info] [QTY]

Stop buffer 143MM PR:1JP 2

[Name] [Note] [QTY]

Accelerator sensor left 1

mating connector

4B0972883 Flat contact housing with contact locking mechanism 3 pin X

black

[Name] [Note]

Level sensor with poles

see illustration, item: 907-031,17

[Name] [Note] [QTY]

Hexagon socket flat head bolt M5X16 X

[Name] [QTY]

Protective cap 2

[Name] [Note] [QTY]

Underlay upper 2

[Name] [Note] [QTY]

Spring support lower 2

[Name] [Note]

Wishbone lower

see illustration, item: 505-010,7

505-030,7

[Name] [Note] [Model info] [QTY]

Gas shock absorber, electronically controlled left PR:1JP 1

[Name] [Note] [Model info] [QTY]

Gas shock absorber, electronically controlled right PR:1JP 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M14X1,5X85 2

use if required: WHT 000 724 2

Accompanying details: WHT000724

[Name] [Note] [QTY]

Retaining washer 14,5X30X3 2

[Name] [Note]

Wheel bearing housing

see illustration, item: 505-010,16

505-030,16
