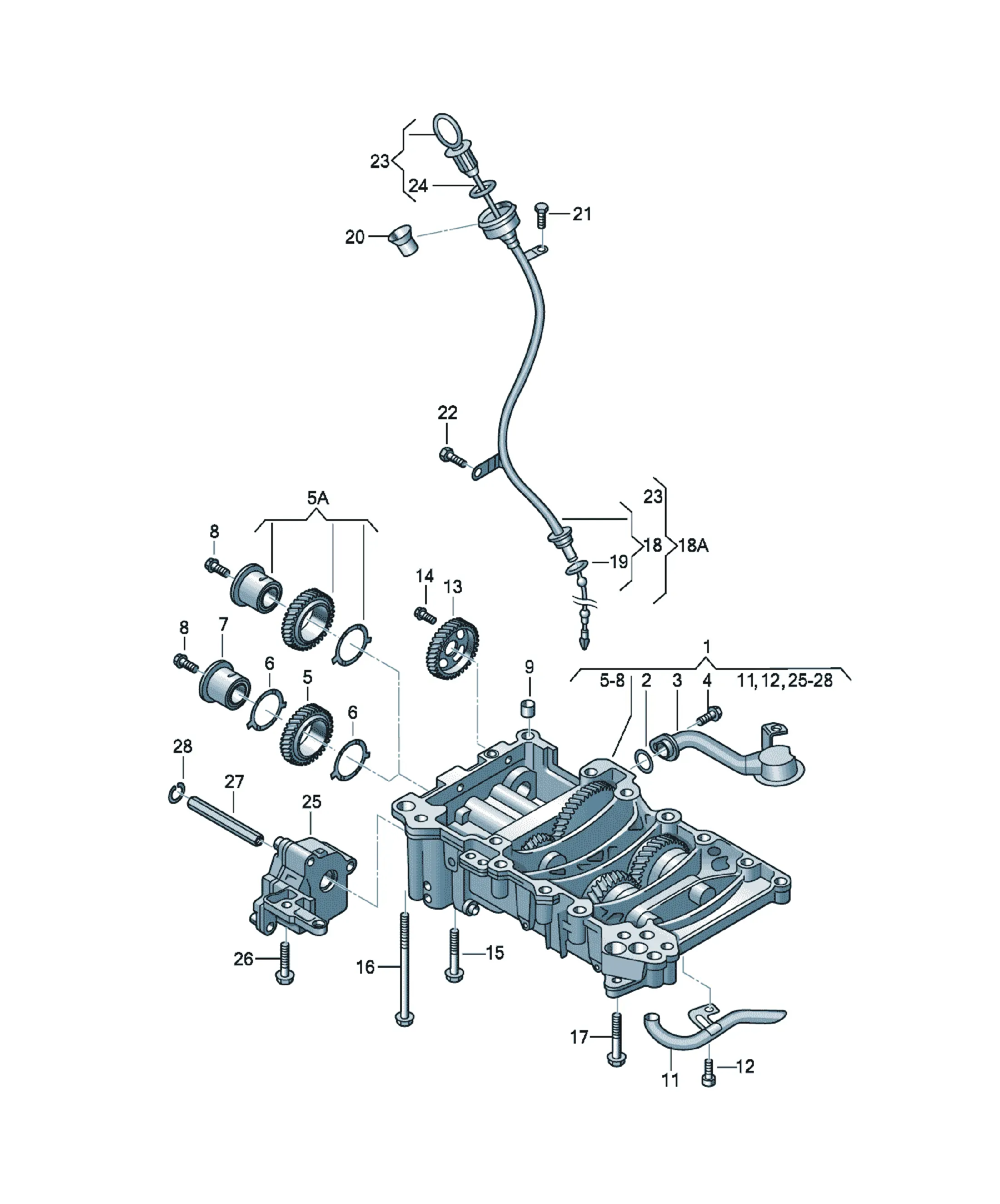

Oil pump

[Name] [Note] [QTY]

Balancer shaft module with oil pump

also use: >>D03.11.2009 1

N 106 014 02 3

N 911 234 01 1

N 909 775 02 1

N 911 046 01 1

Accompanying details: N 10601402; N 91123401; N 90977502; N 91104601

[Name] [QTY]

guide tube 1

Replacements: 03G103526E

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X20 1

[Name] [Note] [QTY]

Drive wheel Z=33 1

also use: N 911 213 01 4

Accompanying details: N 91121301

[Name] [Note] [QTY]

hexagon head bolt (combi) M7X18 4

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M8X70 5

only to be used for: 03G 103 295 K

D >> - 03.11.2009*

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M8X70 3

only to be used for: 03G 103 295 AK

D - 04.11.2009>>*

[Name] [Note] [QTY]

Hex collared bolt M7X85X70 1

only to be used for: 03G 103 295 K

03G 103 295 AK

[Name] [Note] [QTY]

multi-point socket head bolt with collar M7X105X39 1

only to be used for: 03G 103 295 K

03G 103 295 AK

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X35 1

only to be used for: 03G 103 295 AK

D - 04.11.2009>>*

[Name] [Note] [QTY]

Hex collared bolt M8X40 1

only to be used for: 03G 103 295 K

D >> - 03.11.2009*

[Name] [Note]

tube for oil dipstick

No replacement part

Use item: 18A

[Name] [QTY]

Oil dipstick with pipe 1

Replacements: 03L115607R

[Name] [Note] [QTY]

O-ring 10X2 1

[Name] [Note] [QTY]

O-ring 21X2 1

[Name]

Grommet

Not for this model

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

[Name] [Note] [QTY]

Oil dipstick 1

only to be used for: 03L 103 634

[Name] [Note] [QTY]

Oil dipstick 1

only to be used for: 03L 103 634 N

[Name] [Note] [QTY]

O-ring 9X2,2 1

[Name] [QTY]

oil pump 1

D - 04.11.2009>>*

Replacements: 03G115105H

[Name] [QTY]

oil pump 1

D >> - 03.11.2009*

Replacements: 03G115105G

[Name] [Note] [QTY]

round hd. screw M6X30 2

[Name] [Note] [QTY]

Follower 100MM 1

only to be used for: 03G 103 295 AK

D - 04.11.2009>>*

[Name] [Note] [QTY]

Follower 77MM 1

only to be used for: 03G 103 295 K

D >> - 03.11.2009*

Replacements: 03G115281F

[Name] [Note] [QTY]

Securing ring 8X0,8 1

[Name] [Note] [QTY]

suction line

only to be used for: 03G 103 295 K

D >> - 03.11.2009* 1

[Name] [Note] [QTY]

suction line

only to be used for: 03G 103 295 AK

D - 04.11.2009>>* 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X20 1

[Name] [Note] [QTY]

intermediate wheel Z=32 1

No longer available

for this use: 03L 198 488 1

[Name] [Note] [QTY]

Intermediate gear with hub Z=32 1

repair set

WHT002430 thrust washer 1

03G103580H hub 1

03G103488N intermediate wheel Z=32 1

[Name] [Note] [QTY]

thrust washer

No longer available

for this use: 03L 198 488 1

[Name] [Note] [QTY]

hub

No longer available

for this use: 03L 198 488 1

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M12X1,5X33 1

[Name] [Note] [QTY]

dowel sleeve 11X11 2
