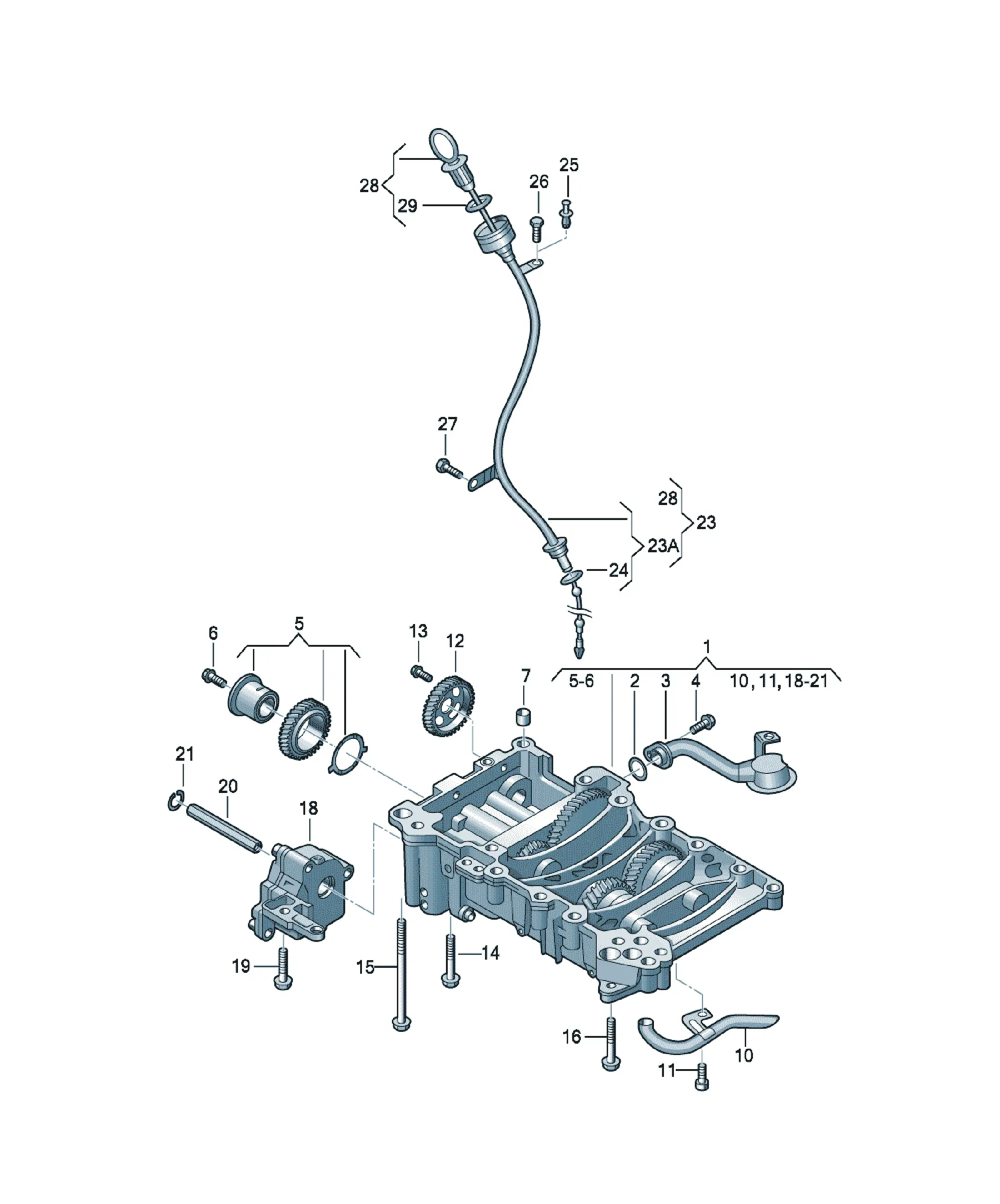

Oil pump

[Name] [QTY]

Balancer shaft module with oil pump 1

Replacements: 03L103295T

[Name] [QTY]

guide tube 1

[Name] [Note] [QTY]

Socket head bolt M6X20 1

[Name] [Note] [QTY]

Drive wheel Z=33 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M7X18 4

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M8X70 3

[Name] [Note] [QTY]

Hex collared bolt M7X85X70 1

[Name] [Note] [QTY]

multi-point socket head bolt with collar M7X105X39 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X35 1

[Name] [QTY]

oil pump 1

Replacements: 03L115105F

[Name] [Note] [QTY]

round hd. screw M6X30 2

[Name] [Note] [QTY]

O-ring 21X2 1

[Name] [QTY]

Follower 1

[Name] [Note] [QTY]

Securing ring 8X0,8 1

[Name] [Note]

Oil dipstick with pipe

No replacement part

Use item: 23A

[Name] [Note] [QTY]

tube for oil dipstick X

only to be used for: 03L 115 611 J

Replacements: 03L103634M

[Name] [Note] [QTY]

tube for oil dipstick X

only to be used for: 03L 115 611 T

[Name] [Note] [QTY]

O-ring 10X2 1

[Name] [Note] [QTY]

Spreader rivet M6X16 1

[Name]

Hexagon bolt

Not for this model

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

[Name] [Note] [QTY]

Oil dipstick X

only to be used for: 03L 103 634 J

Replacements: 03L115611T

[Name] [Note] [QTY]

Oil dipstick X

only to be used for: 03L 103 634 M

[Name] [Note] [QTY]

O-ring 9X2,2 1

[Name] [QTY]

suction line 1

[Name] [Note] [QTY]

Socket head bolt M6X20 1

[Name] [Note] [QTY]

Intermediate gear with hub Z=32 1

repair set

WHT002430 thrust washer 1

03G103580H hub 1

03G103488N intermediate wheel Z=32 1

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M12X1,5X33 1

[Name] [Note] [QTY]

dowel sleeve 11X11 2
