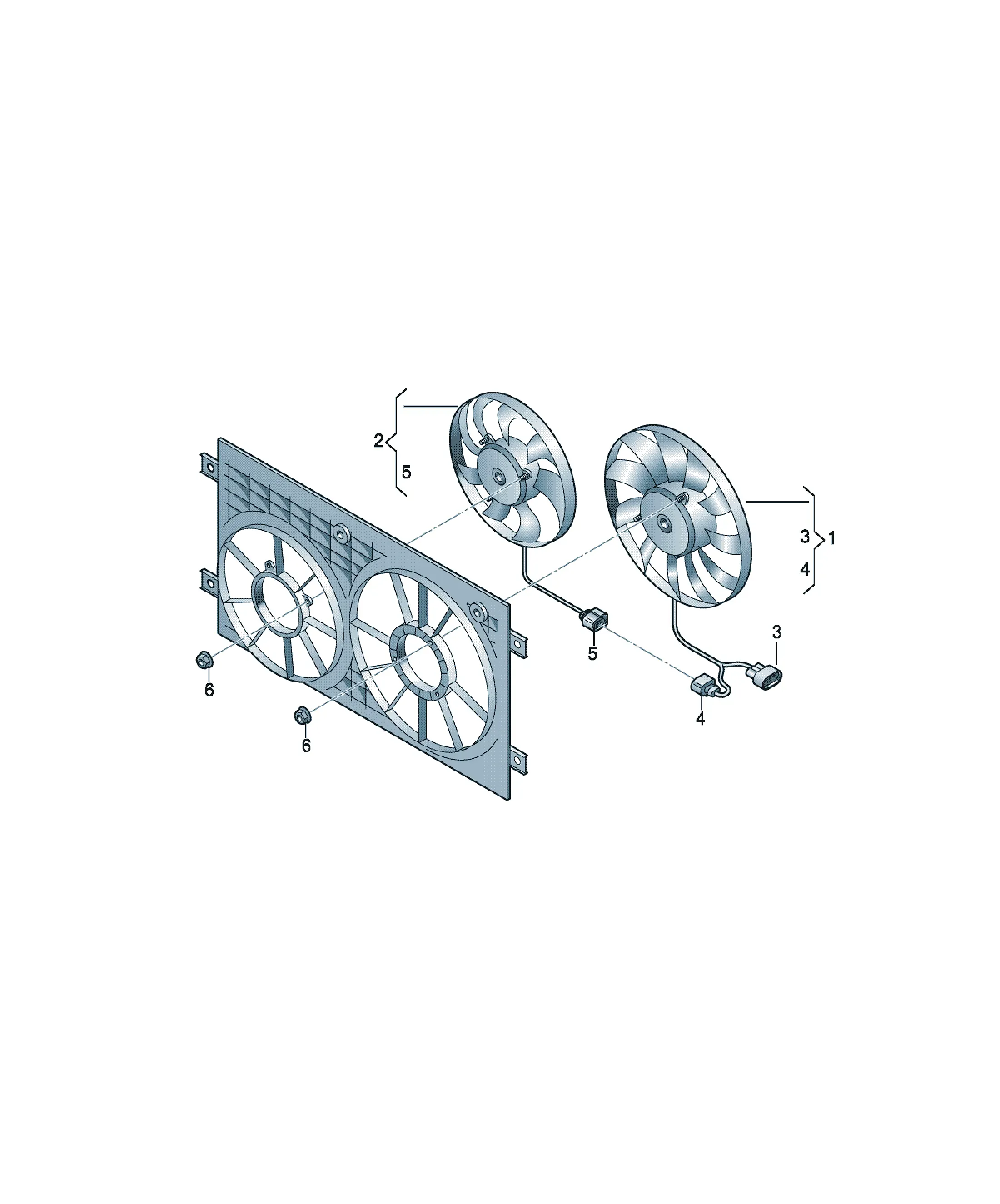

Radiator fan

[Name] [Note] [Model info] [QTY]

Radiator fan 300W 360MM CAWB,CBAA, 1

BROSE CBAB,CBBB,

CBBA,CAWA,

CCTA,CFFB,

CAXA,CCZA,

CFGB

mating connector

1J0973852 Flat connector housing with contact locking mechanism 2 pin 1

black

1J0906234 Flat contact housing 4 pin 1

[Name] [Note] [Model info] [QTY]

Radiator fan with fan ring 600W BWK,CAVA 1

460MM SIEMENS

for vehicle use in warm climates

[Name]

Satin black

Potential individual parts

5N0121207J Fan ring 1

5N0121207J 9B9 Satin black

5N0959455 Radiator fan 600W 1

460MM SIEMENS

mating connector

1J0906234 Flat contact housing 4 pin 1

black

[Name] [Note] [Model info] [QTY]

Radiator fan with fan ring 600W BWK,CAVA 1

460MM SIEMENS

for models with towing attachment and used in cold and moderate climates

[Name] [Note] [Model info] [QTY]

Radiator fan with fan ring 400W BWK,CAVA 1

410MM SIEMENS

for vehicles without trailer operation and vehicle use in cold and mild climate zones

[Name]

Satin black

mating connector

1J0906234 Flat contact housing 4 pin 1

black

[Name] [Note] [Model info] [QTY]

Radiator fan 200W 295MM CAWB,CBAA, 1

BROSE CBAB,CBBB,

CBBA,CAWA

CCTA,CFFB,

CAXA,CCZA,

CFGB

mating connector

1J0973752 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

flat connector housing 4 pin 1

For radiator fan: 1,3,4

mating connector

1J0906234 Flat contact housing 4 pin 1

black

1K0906234 Flat contact housing 4 pin 1

black

Possible single wire:

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979418E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X

-40C/+125C

with cable crosssection: 6,0

flat connector 9,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

For radiator fan: 1

mating connector

1J0973852 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

black

For radiator fan: 2

mating connector

1J0973752 Flat contact housing with contact locking mechanism 2 pin 1

black

5C6973752 Flat contact housing 2 pin 1

black

Possible single wire:

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1

-40C/+105C

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

Hexagon flange nut, self-locking M6 X
