Radiator, fan

Cooling fan

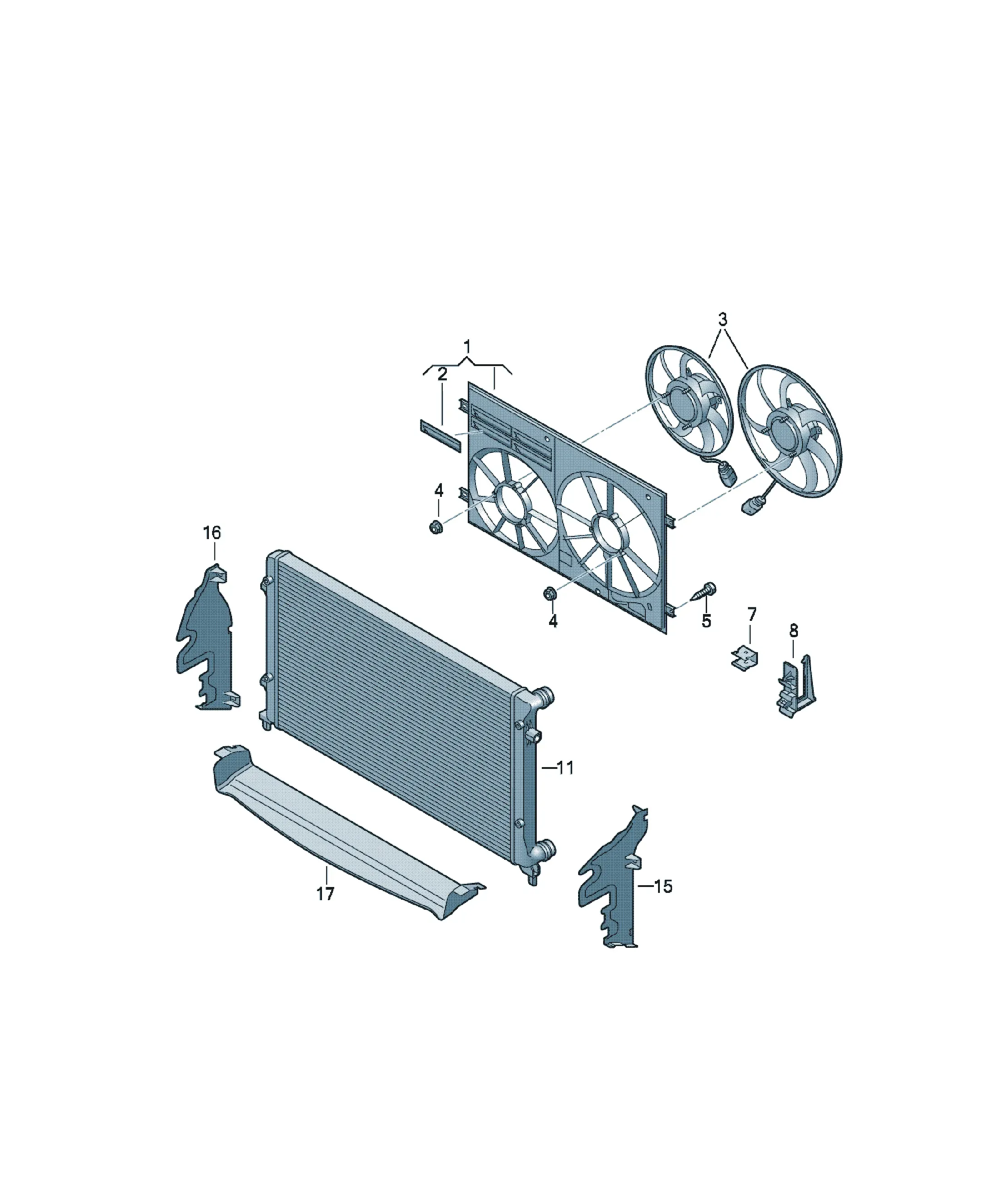

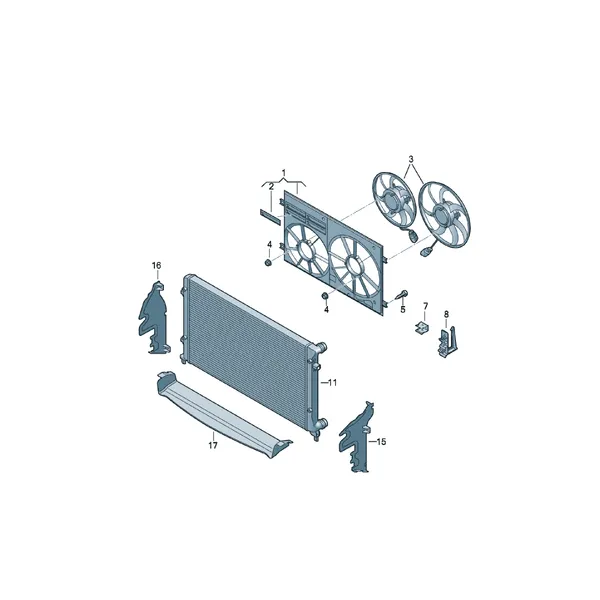

Assembly diagrams

2 diagrams

22 parts

1K0121207BB Offers

[Name] [QTY]
Twin fan ring 1
1K0121205AD9B9 Offers

[Name]
Satin black
Replacements: 1K0121205AJ9B9
1K0121205AD Offers

[Name] [QTY]
Twin fan ring 1
1K0121207BB9B9 Offers

[Name]
Satin black
[Name] [Note]
Cooler for coolant
see illustration, item: 121-082,1
[Name] [Note] [Model info]
Cooler for coolant CBAA,CBAB,
see illustration, item: 121-086,30 CBBB,CBBA
[Name] [Note] [Model info]
Cooler for coolant CFFA,CFFB,
see illustration, item: 121-088,30 CFFD,CLJA
CFGB
[Name] [Note]
Cooler for coolant
see illustration, item: 121-079,30
5N0121283A Offers

[Name] [Note] [QTY]
Air guide left 1
5N0121284 Offers

[Name] [Note] [QTY]
Air guide right 1
5N0121341A Offers

[Name] [Note] [QTY]
Cover lower 1
[Name]
air control flap
Not for this model
1K0121223 Offers

[Name] [QTY]
air control flap 4
[Name] [Note]
Radiator fan
see illustration: 959-050
[Name] [Note]
Radiator fan
see illustration, item: 959-050,1
N90887703 Offers

[Name] [Note] [QTY]
Hexagon flange nut, self-locking M6 1
N90887703 Offers

[Name] [Note] [QTY]
Hexagon flange nut, self-locking M6 X
N90817003 Offers

[Name] [Note] [QTY]
Hexagon socket head panel bolt 6X17 4
N91100701 Offers

[Name] [Note] [QTY]
Clip 15X14,2X9 X
N91100701 Offers

[Name] [Note] [QTY]
Clip 15X14,2X9 1
1J0971830H Offers

[Name] [QTY]
bracket for connector housing 1
1J0971830H Offers

[Name] [QTY]
bracket for connector housing 1
Radiator fan
