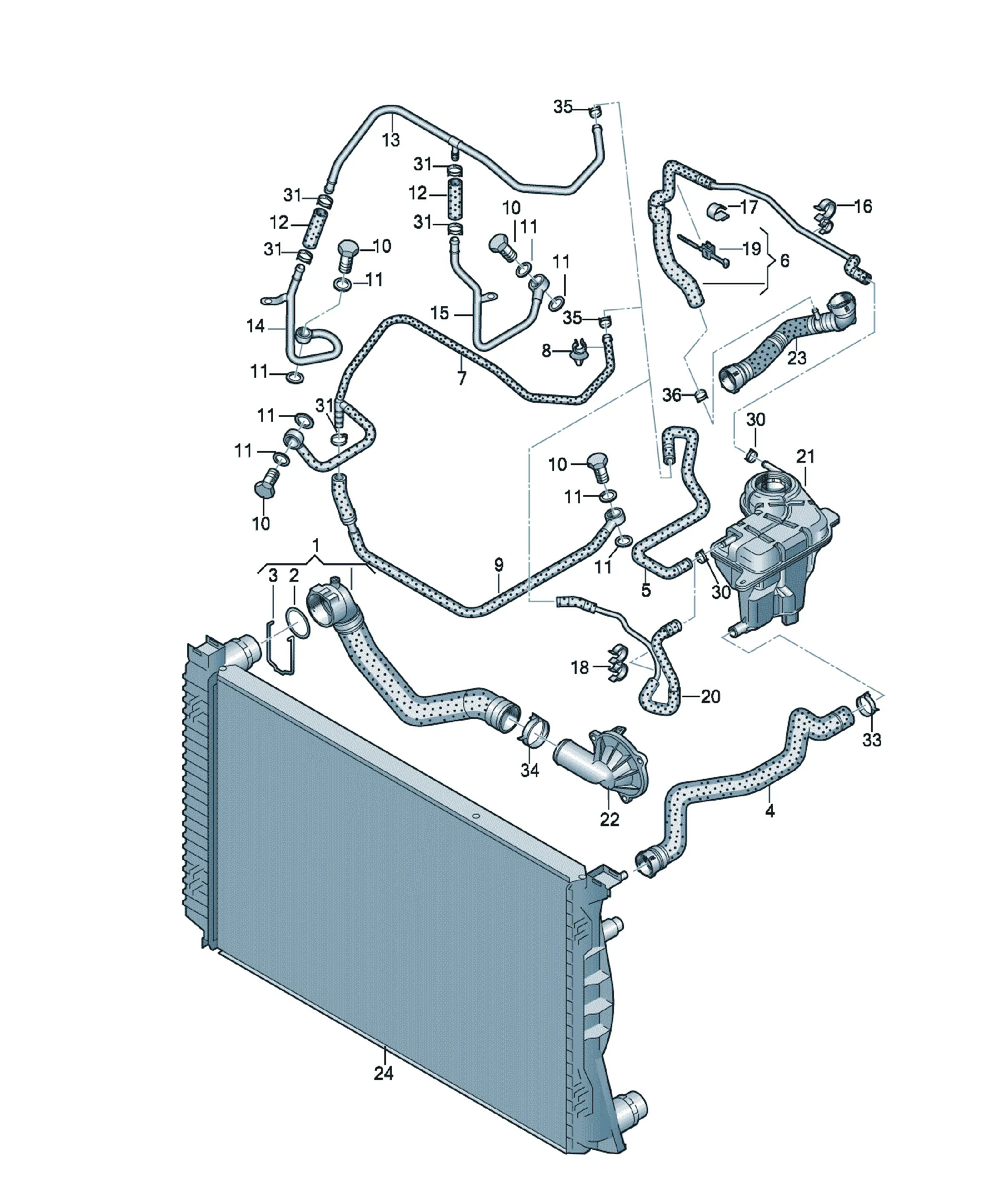

გაგრილების სისტემის შლანგები

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [Note] [QTY]

Banjo bolt 8 1

[Name] [Note] [QTY]

seal ring 8X11,5 1

[Name] [QTY]

Coolant hose 2

F 4F-5-034 801>>*

[Name] [QTY]

Coolant pipe 1

F 4F-5-034 801>>*

[Name] [Note] [QTY]

Coolant pipe right 1

F 4F-5-034 801>>*

[Name] [Note] [QTY]

Coolant pipe left 1

F 4F-5-034 801>>*

[Name] [QTY]

Hose bracket 1

[Name] [Note] [QTY]

terminal 17,5 1

[Name] [Note] [QTY]

Clip 6-7/8-9 1

[Name] [QTY]

Cable ties 1

[Name] [Note] [QTY]

O-ring 38X4 1

[Name] [QTY]

Coolant hose 1

F 4F-5-077 001>> 4F-6-175 600*

Replacements: 4F0121107AN

Items supplied

Coolant hose 2

Pipe 8X1 1

191201316A Sleeve 6X29MM 1

Spacer ring 8X18X17 1

clamping ring 2

[Name] [QTY]

Coolant hose 1

F 4F-6-175 601>>*

Items supplied

Coolant hose 2

Pipe 8X1 1

191201316A Sleeve 6X29MM 1

Spacer ring 8X18X17 1

clamping ring 2

[Name] [Note]

Reservoir

see illustration: 121-070

[Name] [Note]

Coolant regulator

see illustration: 121-004

[Name] [Note]

Coolant hose with quick release coupling rhd

Included in illustration, position:

819-063,9

[Name] [Note]

Coolant hose with quick release coupling lhd

Included in illustration, position:

819-061,10B

[Name] [Note]

Cooler for coolant

see illustration: 121-070

[Name] [Note] [QTY]

retaining spring 38MM 1

[Name] [Note] [QTY]

Spring band clamp 16X12 X

[Name] [Note] [QTY]

Ear crimp hose clamp 16,2X7X0,6 X

[Name] [Note] [QTY]

Spring band clamp 17X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 47X12 X

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 19X12 X

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [QTY]

Coolant hose 1

F >> 4F-7-042 000*

[Name] [Note] [QTY]

Hose bracket 7,5 1
