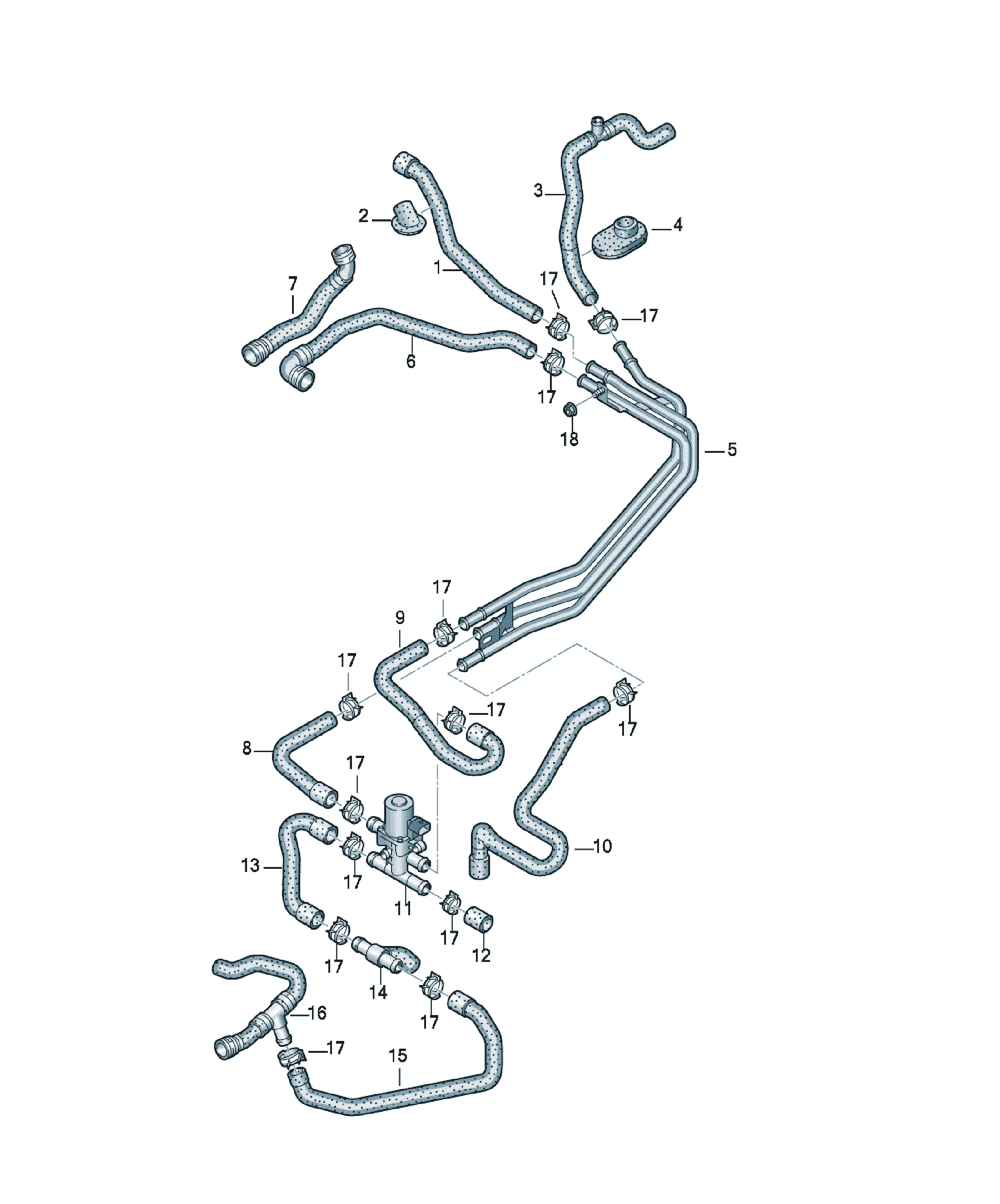

გამაგრილებელი სითხის შლანგები

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Solenoid valve 1

Replacements: 8E0820036; 8E0820607; 8J0121324; N 90687001

Items supplied

8E0820036 Solenoid valve 1

8E0820607 Sleeve 2

8J0121324 Cap closure 20X3,5 1

N 90687001 Spring band clamp 27X12 1

mating connector

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Cap closure 1

Items supplied

Quick acting coupling black 1

tension spring black 1

O-ring 22X3,5 1

Locking ring black 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Clamp 16-28X9X0,5 2

for solenoid valve

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Hexagon collar nut M6 X

Replacements: N 01508210

[Name] [QTY]

Grommet 1

[Name] [Note] [QTY]

Coolant hose return 1

[Name] [QTY]

Grommet 1

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Heating hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1
