საკონტროლო ბლოკი

კლიმატკონტროლის მართვის პანელი

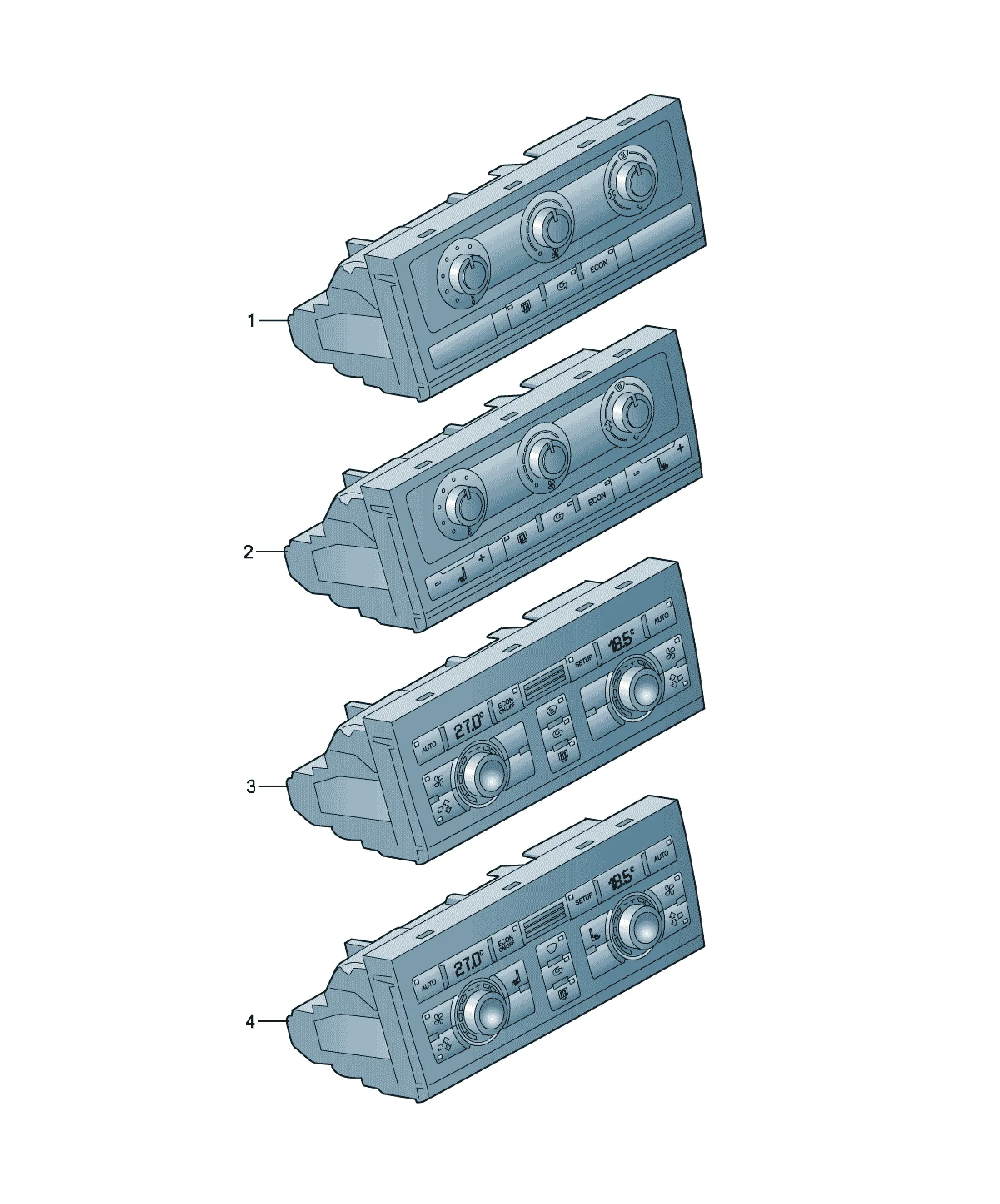

კვანძის სქემები

4 სქემა

ნაწილები

24 ნაწილი
  • 4L0820043AA შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A0 1

  • 4L0820043AD შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A0 1

  • 4L0820043ADSZD შეთავაზებები

    [Name]

    Nero/alu standard

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1

  • 4L0820043AG შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A0 1

    D >> - 05.11.2012

  • 4L0820043AGSZD შეთავაზებები

    [Name]

    Nero/alu standard

    Replacements: 4L0820043ANSZD

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1

  • 4L0820043AN შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A0 1

    D - 05.11.2012>>

  • 4L0820043ANSZD შეთავაზებები

    [Name]

    Nero/alu standard

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1

  • 4L0820043AASZD შეთავაზებები

    [Name]

    Nero/alu standard

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1

  • 4L0820043AC შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A3,4A4+ 1

    Q2J

  • 4L0820043AQ შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A3,4A4+ 1

    Q2J

    for models with seat venti- lation

    D - 05.11.2012>>

  • 4L0820043AJSZD შეთავაზებები

    [Name]

    Nero/alu standard

    Replacements: 4L0820043AQSZD

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1

  • 4L0820043AJ შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A3,4A4+ 1

    Q2J

    D >> - 05.11.2012

  • 4L0820043AFSZD შეთავაზებები

    [Name]

    Nero/alu standard

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1

  • 4L0820043AF შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A3,4A4+ 1

    Q2J

  • 4L0820043ACSZD შეთავაზებები

    [Name]

    Nero/alu standard

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1

  • 4L0820043AH შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A3,4A4+ 1

    Q1A,Q1D

    D >> - 05.11.2012

  • 4L0820043APSZD შეთავაზებები

    [Name]

    Nero/alu standard

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1

  • 4L0820043AP შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A3,4A4+ 1

    Q1A,Q1D

    for vehicles with seat and backrest heater element

    D - 05.11.2012>>

  • 4L0820043AHSZD შეთავაზებები

    [Name]

    Nero/alu standard

    Replacements: 4L0820043APSZD

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1

  • 4L0820043AESZD შეთავაზებები

    [Name]

    Nero/alu standard

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1

  • 4L0820043AE შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A3,4A4+ 1

    Q1A,Q1D

  • 4L0820043ABSZD შეთავაზებები

    [Name]

    Nero/alu standard

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1

  • 4L0820043AB შეთავაზებები

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic front center PR:4A3,4A4+ 1

    Q1A,Q1D

  • 4L0820043AQSZD შეთავაზებები

    [Name]

    Nero/alu standard

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    also to be used for: blue

    8E0972416 Flat contact housing with contact locking mechanism 16 pin 1

    brown

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    black

    1J0972753 Flat contact housing 3 pin 1
