საკონტროლო ბლოკი

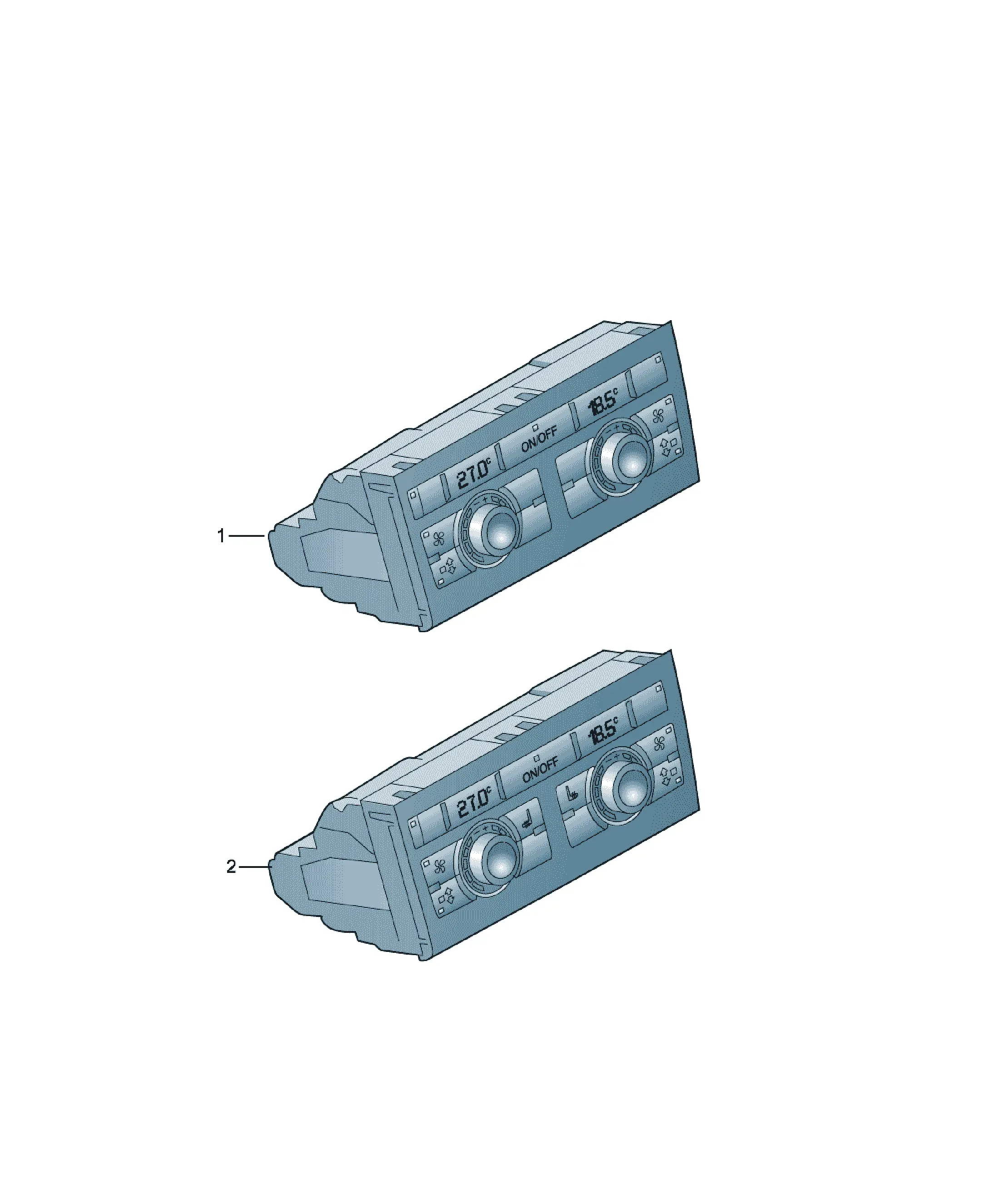

კლიმატკონტროლის მართვის პანელი

კვანძის სქემები

4 სქემა

ნაწილები

8 ნაწილი

4L0919158AA შეთავაზებები

[Name] [Note] [Model info] [QTY]
Display and control panel with CU for electronically controlled air-conditioning centre/rear PR:4A0+4A3 1
D >> - 05.11.2012
4L0919158AASZD შეთავაზებები

[Name]
Nero/alu standard
Replacements: 4L0919158ADSZD
mating connector
8E0972112 Flat contact housing 12 pin 1
black
8E0972420 Flat contact housing 20 pin 1
red
also to be used for: blue
8E0972416 Flat contact housing 16 pin 1
brown
4A0972883C Flat contact housing 16 pin 1
black
1J0972753 Flat contact housing 3 pin 1
4L0919158AD შეთავაზებები

[Name] [Note] [Model info] [QTY]
Display and control panel with CU for electronically controlled air-conditioning centre/rear PR:4A0+4A3 1
D - 05.11.2012>>
4L0919158ADSZD შეთავაზებები

[Name]
Nero/alu standard
mating connector
8E0972112 Flat contact housing with contact locking mechanism 12 pin 1
black
8E0972420 Flat contact housing with contact locking mechanism 20 pin 1
red
also to be used for: blue
8E0972416 Flat contact housing with contact locking mechanism 16 pin 1
brown
4A0972883C Flat contact housing with contact locking mechanism 16 pin 1
black
1J0972753 Flat contact housing 3 pin 1
4L0919158AB შეთავაზებები

[Name] [Model info] [QTY]
Display and control panel with CU for electronically controlled air-conditioning PR:4A4 1
D >> - 05.11.2012
4L0919158ABSZD შეთავაზებები

[Name]
Nero/alu standard
Replacements: 4L0919158AESZD
mating connector
8E0972112 Flat contact housing 12 pin 1
black
8E0972420 Flat contact housing 20 pin 1
red
also to be used for: blue
8E0972416 Flat contact housing 16 pin 1
brown
4A0972883C Flat contact housing 16 pin 1
black
1J0972753 Flat contact housing 3 pin 1
4L0919158AE შეთავაზებები

[Name] [Model info] [QTY]
Display and control panel with CU for electronically controlled air-conditioning PR:4A4 1
for vehicles with seat and backrest heater element
D - 05.11.2012>>
4L0919158AESZD შეთავაზებები

[Name]
Nero/alu standard
mating connector
8E0972112 Flat contact housing with contact locking mechanism 12 pin 1
black
8E0972420 Flat contact housing with contact locking mechanism 20 pin 1
red
also to be used for: blue
8E0972416 Flat contact housing with contact locking mechanism 16 pin 1
brown
4A0972883C Flat contact housing with contact locking mechanism 16 pin 1
black
1J0972753 Flat contact housing 3 pin 1
