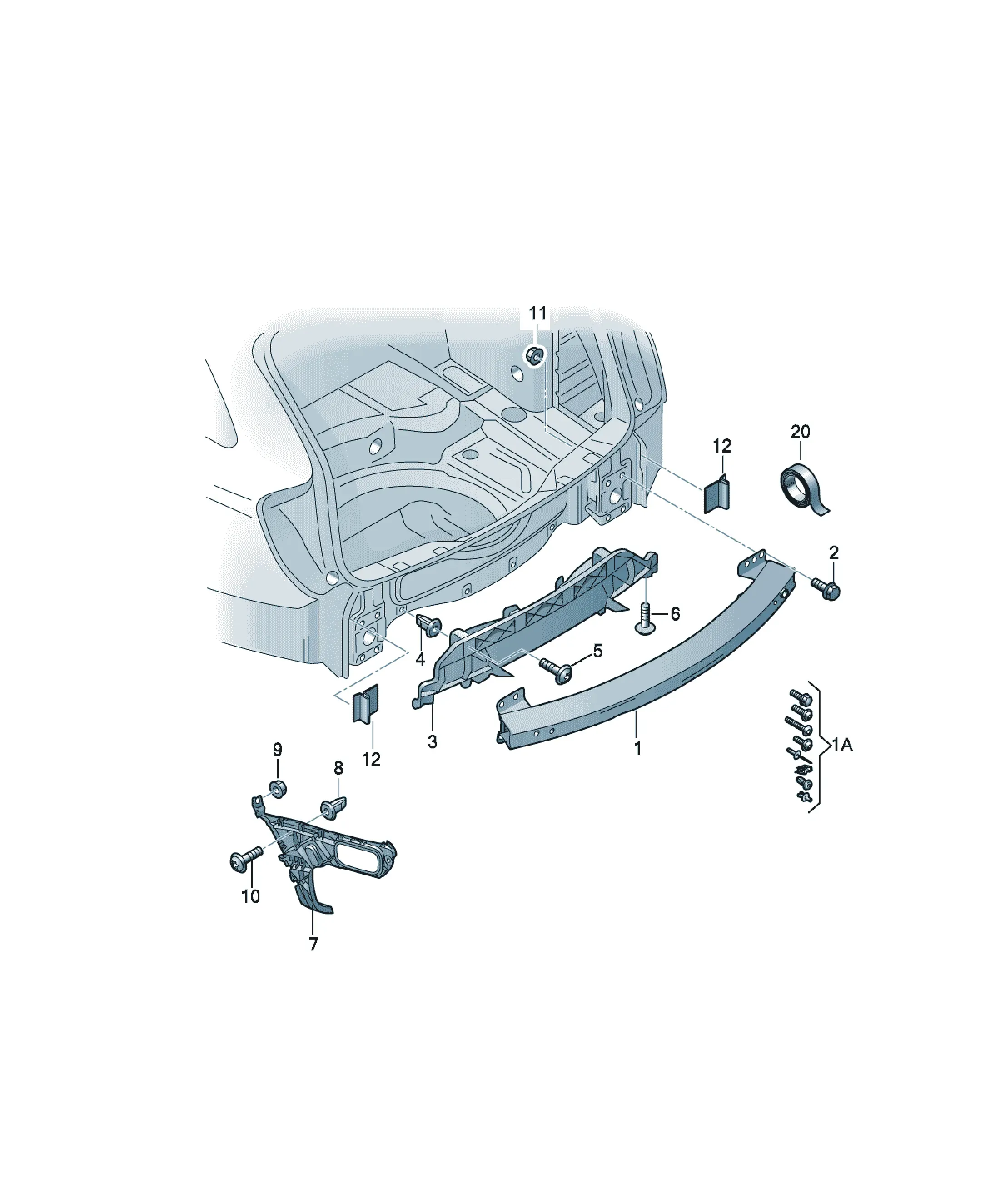

ბამპერის სამაგრი

[Name] [Note] [Model info]

Cross member PR:1D2,1D6,

see illustration: 804-050 1D9

[Name] [Model info] [QTY]

Bumper carrier PR:1D0,1D8 1

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X12 16

D >> - 23.05.2011

[Name] [Note] [QTY]

Hexagon socket flat head bolt 5X16 16

D - 23.05.2011>>

[Name] [Note] [QTY]

hex. nut with washer M6 2

[Name] [Note] [Model info] [QTY]

Foam filler piece left a. right PR:2K1,2K7, 2

VJ1,VJ2,VJ5

[Name] [QTY]

1 set fixing parts for bumper 1

repair set

N 91103802 Hex collared bolt M12X1,5X50 8

N 91029202 Hex collared bolt M12X1,5X100X49 8

N 10621301 expanding nut 5X13,2 16

WHT003954 Hexagon socket flat head bolt 5X16 16

N 90570802 hex. nut with washer M6 2

WHT003286B Washer 20X7,4X0,05 2

8T0827310A Clip 9MM 4

N 90974701 Hexagon socket head panel bolt 5X16 4

N 90488005 hex. nut with washer M6 4

N 91057001 oval head panel screw 5X16 6

N 90651304 Hexagon socket head panel bolt 4,8X22 5

N 90368203 Speed nut M5X20,8X15 8

N 90808201 Hexagon socket head panel bolt 6X18,5 3

6Q0807180 Clip 2

N 90847501 Spring clip 12X10,4 2

[Name] [Note] [QTY]

Hex collared bolt M12X1,5X50 8

[Name] [Note] [QTY]

plastic sealing strip 20X2X5000MM X

modify in workshop

[Name] [Note] [QTY]

Holding strap lower 1

[Name] [Note] [QTY]

insert nut 9MM 4

Replacements: 8T0827310

[Name] [Note] [QTY]

oval head panel screw 5X16 4

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,8X19 5

[Name] [Note] [QTY]

Guide section left 1

[Name] [Note] [QTY]

Guide section right 1

[Name] [Note] [QTY]

expanding nut 5X13,2 16

[Name] [Note] [QTY]

hex. nut with washer M6 2
