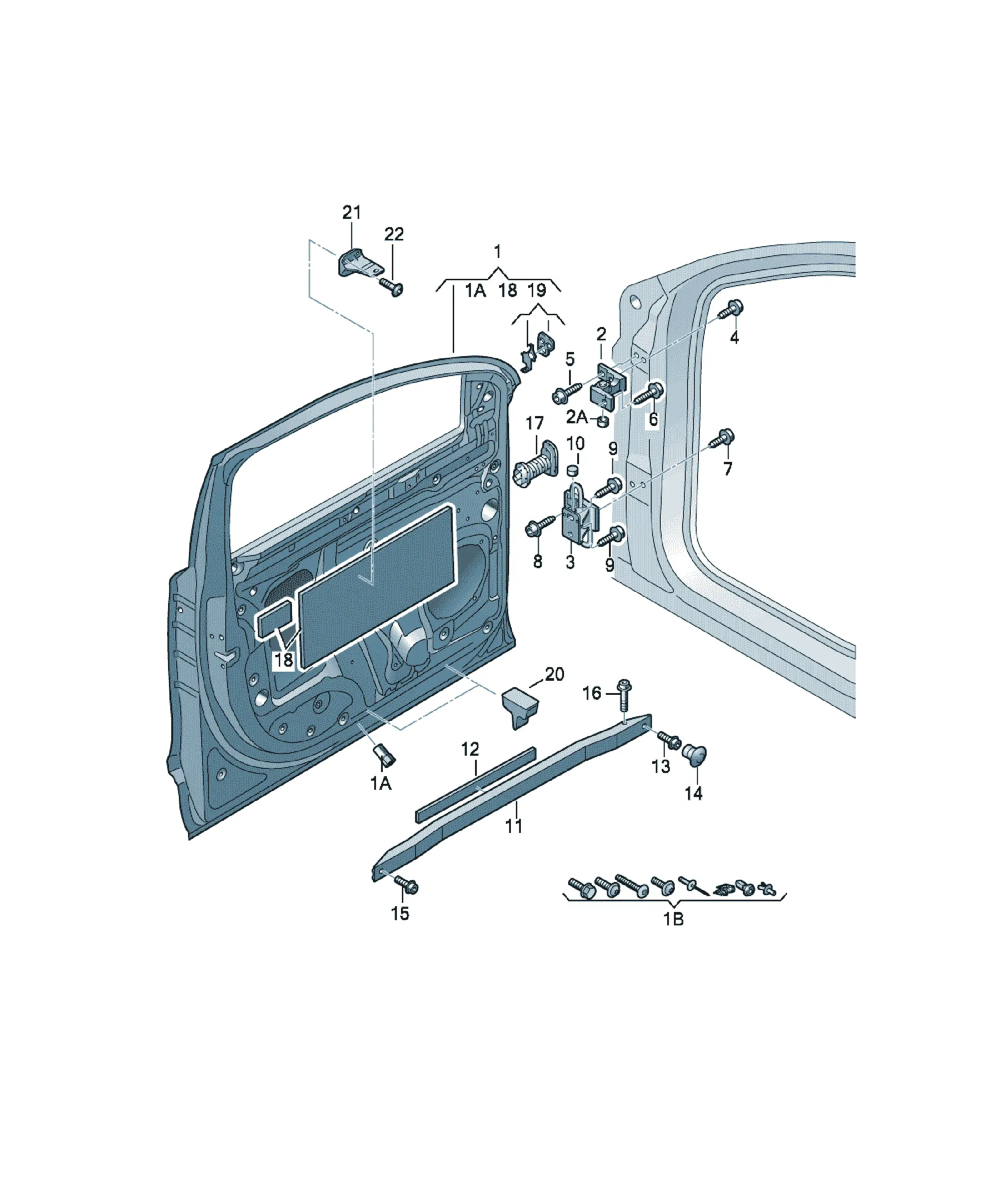

კარი

[Name] [Note] [QTY]

Distance piece upper 4

Window regulator

D >> - 18.10.2010*

[Name] [Note] [QTY]

Door left 1

also use: 4L0 837 911 1

>>4L-BD013448

>>FE-B-003994

*>>D18.10.2010

4L0 837 779 2

Accompanying details: 4L0837911; 4L0837779

[Name] [Note] [QTY]

Door right 1

also use: 4L0 837 912 1

>>4L-B-013448

>>FE-B-003994

*>>D18.10.2010

4L0 837 779 2

Accompanying details: 4L0837912; 4L0837779

[Name] [Note] [QTY]

Cover cap 2

Hinge pin lower

[Name] [Note] [QTY]

side reinforcement left a. right 2

[Name] [Note] [QTY]

Insulation strip (self-adhesive) 500X20X12 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X20 2

[Name] [QTY]

Cover cap 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M8X20 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X50 2

[Name] [Note]

Bellows

see illustration: 972-033

[Name] [Note] [QTY]

sound absorber (self-adhesive) 'order unit 6' 550X250X2 2

center

[Name] [Note] [QTY]

Insulation strip (self-adhesive) 1050X142 4

upper/lower

front center

Replacements: 4L0837818D

[Name] [Note] [QTY]

Threaded plate right upper 1

Door hinge

[Name] [Note] [QTY]

Threaded plate left upper 1

Door hinge

[Name] [Note] [QTY]

rivetted cap nut M5/0,5-3 12

door panel

(for repairs only)

[Name] [QTY]

1 set of attachment parts for door 2

repair set

WHT001417 Hex socket head locating bolt M8X13X32 1

8E0837453A Hexalobular flange screw M8X27 2

N 90403004 Cover cap 13X14 1

8L3837947 Cover cap lower 1

Hinge pin

N 91133101 Socket head bolt with inner multipoint head M8X20 1

N 91128801 Socket head bolt with inner multipoint head (Kombi) M8X20 1

4L0837491 Cover cap 1

N 10682501 Socket head bolt with inner multipoint head M8X50 1

N 10676801 Oval hexagon socket head bolt M5X25 2

7L6868307 Spreader rivet 5,8X10,8 3

4L0837995C Clip 2

Window aperture seal

N 90963202 fillister hd. bolt 5X12 1

N 10672901 Hex socket countersunk bolt M4X20 1

N 90800503 Oval head screw w/ internal serration (Combi), self-lockin M8X14 2

N 90488001 hex. nut with washer M6 4

8Z0837691C Hexagon socket head panel bolt 5X22 3

N 91140301 hexagon head bolt (combi) M6X16 3

8P0837111B Bungs 1

3B0837111 Bungs 16 1

3B0837111 B41 Satin black

[Name] [Note] [QTY]

Door hinge right upper 1

Replacements: 4L0831402B

[Name] [Note] [QTY]

Door hinge left upper 1

Replacements: 4L0831401B

[Name] [Note] [QTY]

Foam (self-adhesive) left a. right 4

inner

[Name] [Note]

Securing bracket driver side

see illustration, item: 867-000,7

[Name] [Note]

Oval hexagon socket head bolt driver side

see illustration, item: 867-000,9

[Name] [Note] [QTY]

Cover cap 13X14 2

Door hinge upper

[Name] [Note] [QTY]

Door hinge left lower 1

[Name] [Note] [QTY]

Door hinge right lower 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X22 2

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X25 2

[Name] [Note] [QTY]

Hex socket head locating bolt M8X13X32 2

[Name] [Note] [QTY]

Hexagon bolt M8X30 2

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X25 2

[Name] [Note] [QTY]

Hexalobular flange screw M8X27 4
