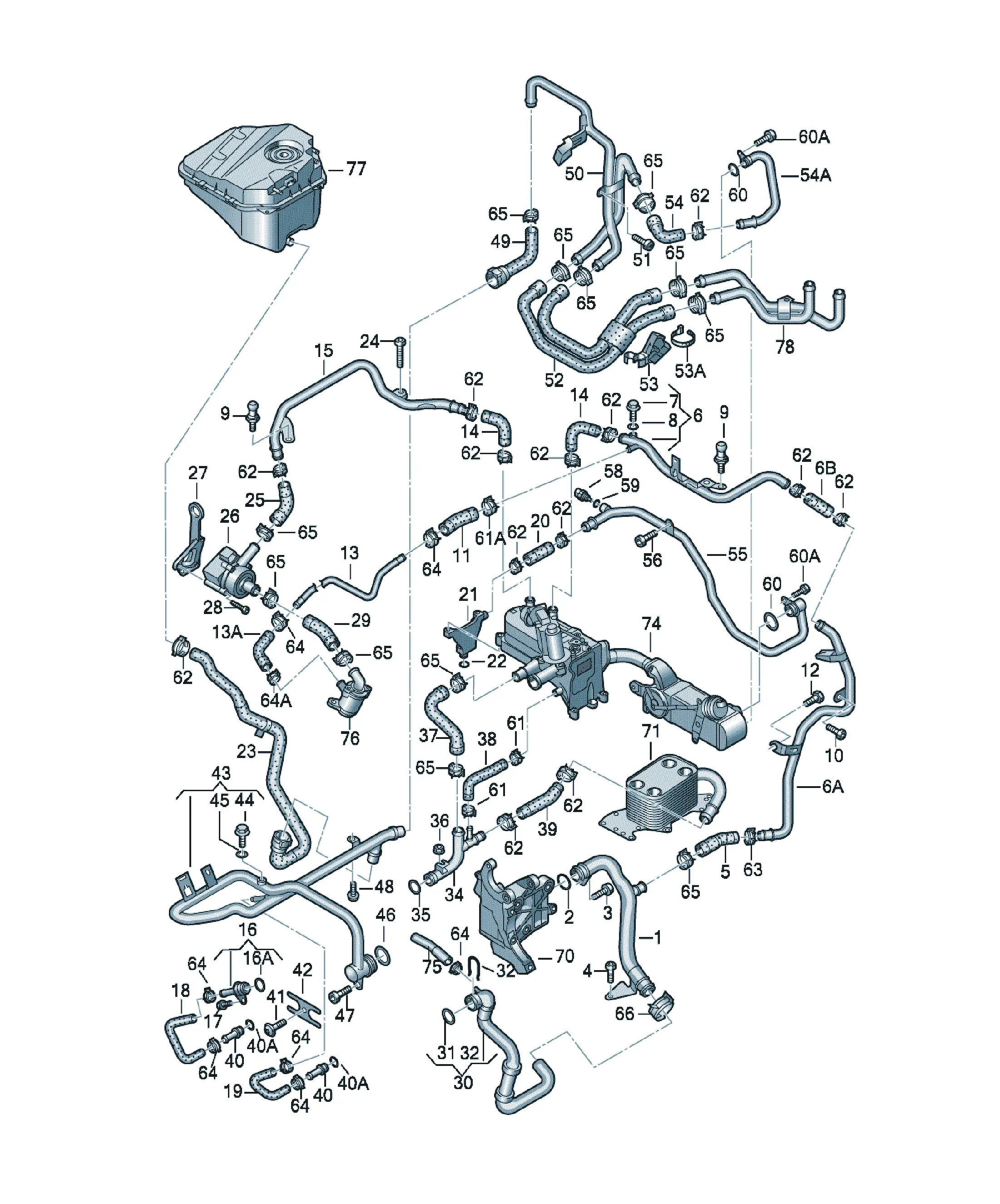

გაგრილების სისტემის დამატებითი ტუმბო

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X16 1

[Name] [Note] [QTY]

Coolant hose rear 1

D >> - 28.09.2009

[Name] [Note] [QTY]

Coolant hose rear 1

D - 28.09.2009>>

[Name] [Note] [QTY]

Hexagon bolt M6X10 1

[Name] [QTY]

Coolant pipe 1

D - 28.09.2009>>

[Name] [QTY]

Coolant pipe 1

D >> - 28.09.2009

[Name] [Note] [QTY]

Coolant hose front 1

D - 28.09.2009>>

[Name] [Note] [QTY]

Coolant hose front 1

D >> - 28.09.2009

[Name] [QTY]

Coolant hose 2

[Name] [Note] [QTY]

Coolant pipe right 1

[Name] [QTY]

Cover 1

water connection

[Name] [Note] [QTY]

O-ring 19,6X3 1

[Name] [Note] [QTY]

Hexagon bolt M6X8 1

[Name] [QTY]

Coolant hose 2

[Name] [QTY]

Coolant hose 2

[Name] [Note] [QTY]

O-ring 32X3 1

[Name] [QTY]

Coolant hose 2

[Name] [QTY]

Bracket 1

water connection

[Name] [Note] [QTY]

O-ring 16X2 1

[Name] [QTY]

Coolant hose 1

(Expansion tank > coolant pipe)

[Name] [Note] [QTY]

fillister hd. bolt M6X70 1

[Name] [QTY]

Coolant hose 2

[Name] [Note] [QTY]

Additional coolant pump PIERBURG 1

use if required: 059 103 392 AC 1

Accompanying details: 059103392AC

mating connector

4H0973703 Flat contact housing with contact locking mechanism 3 pin 1

black 0,5 X

[Name] [Note] [QTY]

Bracket for additional coolant pump 1

only to be used for: 059 121 012 B

*No 'FI' function possible BUEHLER

[Name] [Note] [QTY]

Bracket for additional coolant pump 1

only to be used for: 059 121 012 A

*No 'FI' function possible PIERBURG

[Name] [Note] [QTY]

self-tapping screw 3,5X12 3

[Name] [QTY]

Coolant hose 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 1

[Name] [QTY]

Coolant hose with quick release coupling 1

D - 15.08.2011>>

[Name] [QTY]

Coolant hose with quick release coupling 1

D - 15.03.2010>> - 31.05.2010

[Name] [QTY]

Coolant hose with quick release coupling 1

D - 31.05.2010>> - 15.08.2011

Replacements: 4L0121101

[Name] [QTY]

Coolant hose with quick release coupling 1

D >> - 15.03.2010

Replacements: 7L6122101Q

[Name] [Note] [QTY]

O-ring 38X4 1

[Name] [Note] [QTY]

retaining spring 38MM 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 20X3 1

[Name] [Note] [QTY]

hex. nut with washer M6 1

[Name] [QTY]

Coolant hose 2

[Name] [QTY]

Coolant hose 2

[Name] [QTY]

Coolant hose 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 1

[Name] [QTY]

water connection 2

[Name] [Note] [QTY]

O-ring 13,1X1,6 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X30 1

[Name] [QTY]

Bracket 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Hexagon bolt M6X8 1

[Name] [Note] [QTY]

seal ring 6X10 1

[Name] [Note] [QTY]

O-ring 23X2,6 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt, self-locking M6X12 1

[Name] [QTY]

Coolant hose 2

[Name] [QTY]

Coolant hose with valve 1

[Name] [Note] [QTY]

Coolant pipe feed/return 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M6X15 1

[Name] [QTY]

Coolant hose 2

[Name] [Note] [QTY]

Bracket 18X22X22 1

[Name] [Note] [QTY]

Cable ties 4,6X193 1

[Name] [QTY]

Coolant hose 2

[Name] [Note] [QTY]

Coolant pipe rear 1

return

only for:

Cooler for exhaust recuperation

[Name] [Note] [QTY]

Coolant pipe rear 1

feed

only for:

Cooler for exhaust recuperation

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 1

[Name] [QTY]

Temperature sensor 1

Replacements: 059919523F

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

Connection piece

thermostat

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

[Name] [Note] [QTY]

O-ring 5,6X2 1

[Name] [Note] [QTY]

Coolant pipe left rear 1

D >> - 28.09.2009

[Name] [Note] [QTY]

Coolant pipe left rear 1

D - 28.09.2009>>

[Name] [Note] [QTY]

O-ring 16X2 1

[Name] [Note] [QTY]

round hd. screw M6X10 2

[Name] [Note] [QTY]

Spring band clamp 16X12 X

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Ear crimp hose clamp 24,1X7X0,60 X

[Name] [Note] [QTY]

Spring band clamp 17X12 X

[Name] [Note] [QTY]

Spring band clamp 19X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X

[Name] [Note] [QTY]

Coolant pipe left front 1

[Name] [Note] [QTY]

Coolant hose centre left 1

[Name] [Note] [QTY]

Hexagon bolt M6X8 1

[Name] [Note]

Retainer for vane pump

see illustration: 145-075

[Name] [Note]

Oil cooler

see illustration: 115-055

[Name] [Note]

Control flap

see illustration: 131-011

[Name] [Note]

exhaust recirculation valve

see illustration: 131-011

[Name] [Note]

Cooler for exhaust recuperation

see illustration: 131-011

[Name] [Note]

Coolant hose

see illustration: 121-020

[Name] [Note]

Coolant regulator

see illustration: 121-001

[Name] [Note]

Reservoir

see illustration: 121-070

[Name] [Note]

Coolant pipe

see illustration: 819-026

819-031

819-036

[Name] [Note] [QTY]

seal ring 6X10 1

[Name] [Note] [QTY]

Ball pin M6 1
