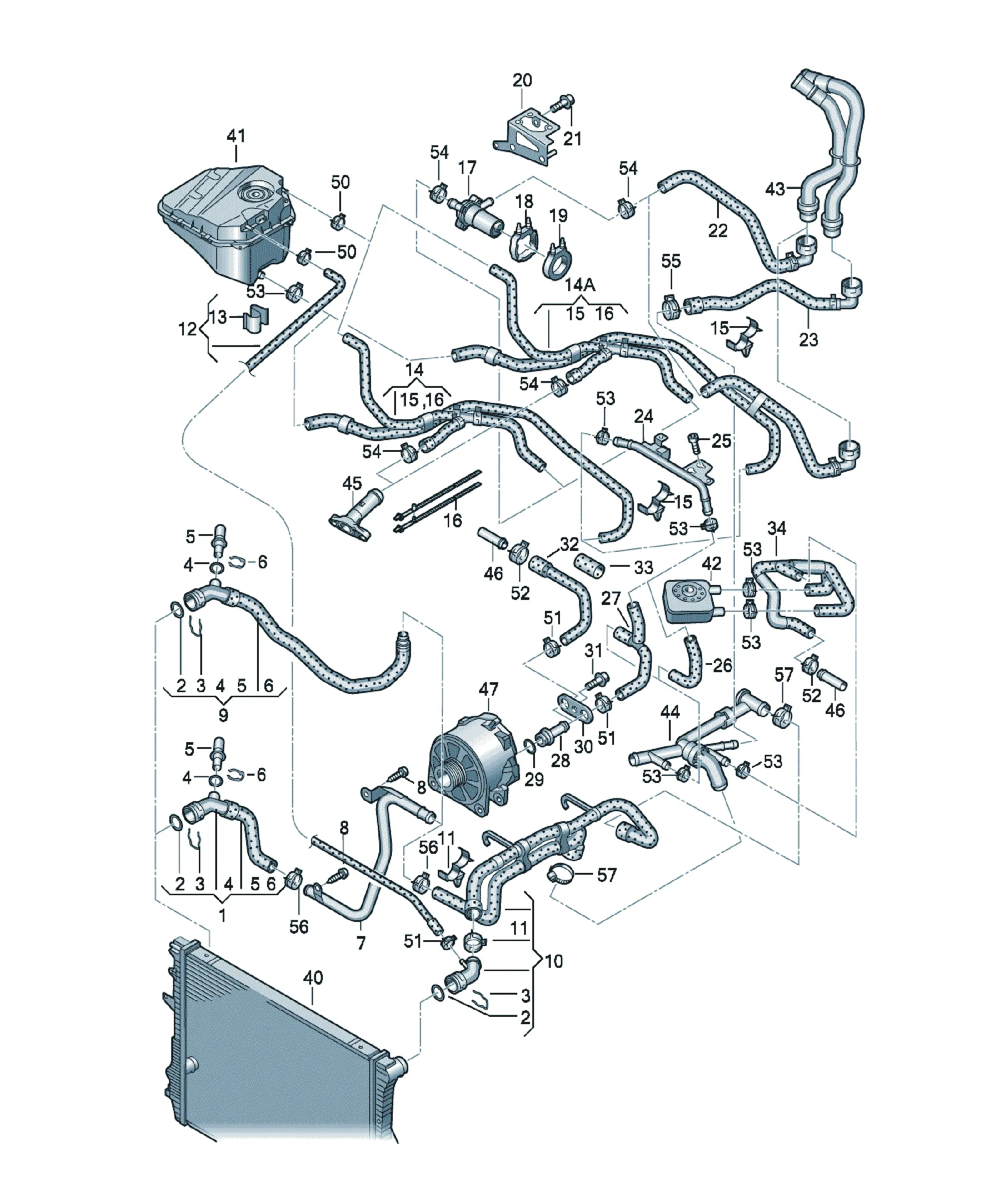

გაგრილების სისტემის დამატებითი ტუმბო

[Name] [QTY]

Coolant hose with quick release coupling 1

for models with towing facility

[Name] [Model info] [QTY]

Coolant hose with quick release coupling PR:0Y2,0Y4, 1

0Y5

for vehicles without trailers

[Name] [Model info] [QTY]

Coolant hose with quick release coupling PR:0Y1,0Y3 1

for vehicles without trailers

[Name] [QTY]

Coolant hose with quick release coupling 1

for models with towing facility

[Name] [Model info] [QTY]

Coolant hose with quick release coupling PR:0Y2,0Y4, 1

0Y5

for vehicles without trailers

[Name] [Model info] [QTY]

Clip PR:0Y1,0Y3 1

for models with towing facility 0Y5

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Retaining clip 5

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Bracket 8X23 1

[Name] [Note] [QTY]

double cable tie 7X213/140MM 1

[Name] [QTY]

Additional coolant pump 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

rubber mount.with locat.divice 1

[Name] [QTY]

Rubber bush 1

[Name] [Note] [QTY]

O-ring 38X4 2

[Name] [QTY]

Bracket for additional coolant pump 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M6X15 2

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Bracket with coolant pipe 1

[Name] [Note] [QTY]

Oval socket head bolt with hex drive 6X18 3

Replacements: N 90989902

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

water connection 2

[Name] [Note] [QTY]

O-ring 13,1X1,6 2

[Name] [Note] [QTY]

retaining spring 38MM 2

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M6X28 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Bungs 1

Replacements: 7P0121099

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Coolant temperature sender 2 pin 1

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note]

Cooler for coolant

see illustration: 121-070

[Name] [Note]

Reservoir

see illustration: 121-070

[Name] [Note]

Oil cooler

see illustration: 115-010

[Name] [Note]

Coolant pipe

see illustration: 819-016

[Name] [Note]

Coolant regulator

see illustration: 121-003

[Name] [Note]

water connection

see illustration: 121-003

[Name] [Note]

Pipe union

see illustration: 103-005

[Name] [Note]

Alternator

see illustration: 903-000

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 17X12 X

[Name] [Note] [QTY]

Spring band clamp 19X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X

[Name] [Note] [QTY]

Spring band clamp 47X12 X

[Name] [QTY]

retaining spring 1

[Name] [QTY]

Coolant pipe 1

for models with towing facility

[Name] [Model info] [QTY]

Coolant pipe PR:0Y2,0Y4, 1

for vehicles without trailers 0Y5

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X25 2

[Name] [Model info] [QTY]

Coolant hose with quick release coupling PR:0Y1,0Y3 1

for vehicles without trailers
