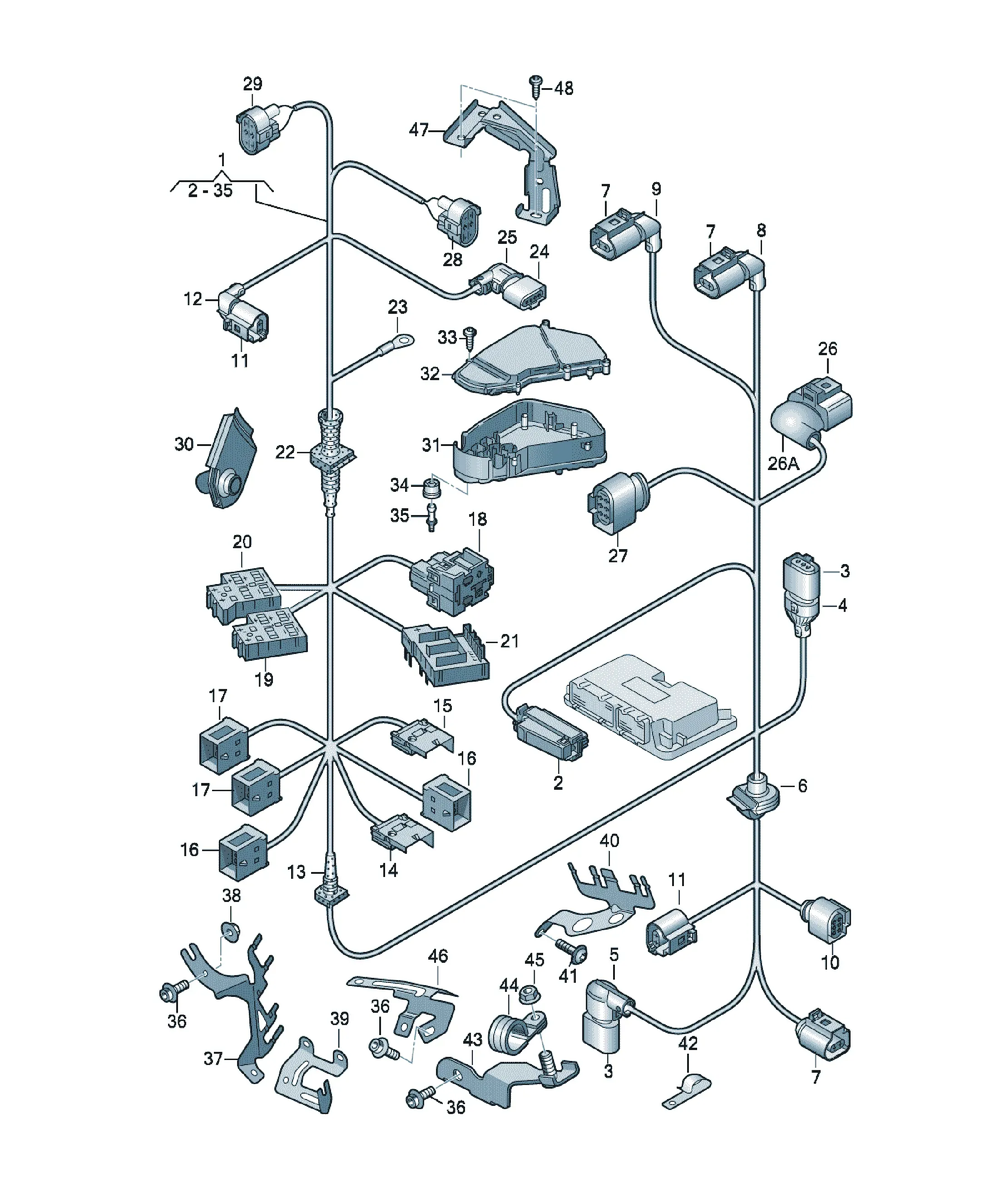

ძრავის განყოფილების ელექტროგაყვანილობა

[Name]

* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS

[Name] [Note] [QTY]

Slave start socket '+' 1

[Name] [Note]

see illustration: 971-046

[Name] [Note] [Model info] [QTY]

harness for engine compartment rhd PR:7MB,7MG 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment rhd PR:0GG 1

Replacements: 4L2971072BT

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:0Y1,0Y3+ 1

9AH+7VL

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:7MB,7MG 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:0GG 1

Replacements: 4L1971072FJ

[Name] [Note] [Model info] [QTY]

harness for engine compartment rhd PR:1D2/1D9 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment rhd PR:0Y1,0Y3+ 1

9AD

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:0Y2,0Y4, 1

0Y5+7VL

[Name] [Note] [Model info] [QTY]

harness for engine compartment rhd PR:0Y1,0Y3+ 1

9AH

[Name] [Note] [Model info] [QTY]

harness for engine compartment rhd PR:0Y2,0Y5 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:0Y1,0Y3+ 1

9AD+9M0

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:0Y2,0Y4, 1

0Y5+9M0

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:0Y1,0Y3+ 1

9AH+9M0

[Name] [Note] [Model info] [QTY]

harness for engine compartment rhd PR:1D2,1D6, 1

1D8,1D9

[Name] [Note] [Model info] [QTY]

harness for engine compartment rhd PR:1D0 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:1D2,1D6, 1

1D8,1D9

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:1D0 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:0Y1,0Y3+ 1

9AD+7VL

[Name] [Note] [QTY]

harness for engine compartment rhd 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:7VL 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:7GA,7GB 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:9M0 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:0GG,0GU, 1

0GV,7MA,7MH,

7MG,7GM

[Name] [Note] [QTY]

harness for engine compartment rhd 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:1D0,1D8+ 1

7GA,7GB

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:1D0,1D8+ 1

0GG,0GU,0GV,

7MA,7MH,7GM,

7MG

[Name] [Note] [Model info] [QTY]

harness for engine compartment rhd PR:1D0,1D8 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:1D2,1D6, 1

1D9+7GA,7GB

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:1D2,1D6, 1

1D9+0GG,0GU,

0GV,7MA,7MH,

7MG,7GM

[Name] [Note] [Model info] [QTY]

harness for engine compartment rhd PR:1D2,1D6, 1

1D9

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:1D0/1D8 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment lhd PR:1D2/1D9 1

[Name] [Note] [Model info] [QTY]

harness for engine compartment rhd PR:1D0/1D8 1

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Connection piece black

Lambda probe cylinders 1-3

(in front of catalyst)

mating connector

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Connection piece black

Lambda probe Cylinders 1-4

(in front of catalyst)

mating connector

1J0973833 Flat contact housing 6 pin 1

black

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Connection piece black

only to be used for: brown

Lambda probe cylinders 4-6

(in front of catalyst)

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Connection piece black

only to be used for: brown

Lambda probe Cylinder 5-8

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Connection piece black

Lambda probe Cylinders 1-4

mating connector

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Connection piece brown

Lambda probe Cylinder 5-8

(in front of catalyst)

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 2,8MM

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 2,8MM

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact 2,8MM

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact 2,8MM

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5QMM

flat contact 2,8MM

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5QMM

flat contact 2,8MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

brown

Connection piece

Lambda probe Cylinder 5-8

(behind catalyst)

mating connector

1K0973804A Flat contact housing with contact locking mechanism 4 pin 1

dark brown

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

black

Connection piece

Lambda probe Cylinders 1-4

(behind catalyst)

mating connector

1K0973804 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

black

Connection piece

Lambda probe cylinders 1-3

(behind catalyst)

mating connector

1K0973804 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

black

Connection piece

Charge pressure sender

mating connector

1K0973804 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

brown

Connection piece

Lambda probe cylinders 4-6

(behind catalyst)

mating connector

1K0973804A Flat contact housing with contact locking mechanism 4 pin 1

dark brown

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Grommet 13,5X19 1

Connection piece

Charge pressure sender

[Name] [QTY]

Grommet 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 1

brown

mating connector

1J0937714A Flat contact housing with contact locking mechanism 3 pin 1

brown

use if required: 1J0 937 713 A 1

only to be used for: Grey

light-green

8D0937714A Flat contact housing 3 pin 1

brown

use if required: 1J0 937 713 A X

also to be used for: Grey X

light-green

Possible single wire:

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 1

brown

only to be used for: 6 pin

also use: 1J0 937 724 A

Coupling element

wiring harness for interior

Accompanying details: 1J0937724A

mating connector

1J0937713A Flat contact housing with contact locking mechanism 3 pin 1

brown

use if required: 1J0 937 714 A 1

only to be used for: Grey

light-green

8D0937713A flat contact housing with retainer guide 3 pin 1

brown

also to be used for: Grey

use if required: 8D0 937 714 A

Possible single wire:

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 1

red

only to be used for: 6 pin

white

also use: 1J0 937 724 B

Coupling element

Wiring set for engine

Accompanying details: 1J0937724B

mating connector

1J0937713B Flat contact housing with contact locking mechanism 3 pin X

red

use if required: 1J0 937 714 B 1

only to be used for: white

khaki grey

8D0937713B flat contact housing with retainer guide 3 pin 1

red

also to be used for: white

use if required: 8D0 937 714 B

Possible single wire:

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

Flat male connector with detent lug 2,5

2,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 1

red

mating connector

1J0937714B Flat contact housing with contact locking mechanism 3 pin X

red

use if required: 1J0 937 713 B 1

also to be used for: white

khaki grey

8D0937714B flat contact housing with retainer guide 3 pin 1

red

also to be used for: white

use if required: 8D0 937 713 B

Possible single wire:

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 10 pin 2

blue

also to be used for: light pink

Coupling element

wiring harness for interior

mating connector

1J0937733D Flat contact housing with contact locking mechanism 10 pin 1

blue

only to be used for: dark brown

light pink

orange

8D0937733D Flat contact housing with contact locking mechanism 10 pin 1

blue

only to be used for: orange

dark brown

light pink

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 E

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 EA

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 10 pin 1

black

only to be used for: green

Coupling element

wiring harness for interior

mating connector

1J0937733 Flat contact housing with contact locking mechanism 10 pin 1

black

also to be used for: violet

green

1J0937733 Flat contact housing with contact locking mechanism 10 pin 1

black

violet

green

8D0937733 Flat contact housing with contact locking mechanism 10 pin 1

black

also to be used for: violet

green

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 E

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 EA

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 10 pin 2

black

also to be used for: green

Coupling element

Wiring set for engine

wiring harness for interior

mating connector

1J0937733 Flat contact housing with contact locking mechanism 10 pin 1

black

also to be used for: violet

green

1J0937733 Flat contact housing with contact locking mechanism 10 pin 1

black

violet

green

8D0937733 Flat contact housing with contact locking mechanism 10 pin 1

black

also to be used for: violet

green

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 E

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 EA

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 17-pin 1

Coupling element brown

Wiring set for engine

mating connector

8E0972483A Flat contact housing with contact locking mechanism 17-pin 1

brown

8E0972585A Flat contact housing with contact locking mechanism 17-pin X

brown

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

Flat male connector with detent lug 0,63

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 17-pin 2

black

also to be used for: white

Coupling element

Wiring set for engine

mating connector

8E0972483 Flat contact housing with contact locking mechanism 17-pin 1

black

8E0972585 Flat contact housing with contact locking mechanism 17-pin X

black

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

Flat male connector with detent lug 0,63

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 10 pin 2

blue

also to be used for: light pink

Coupling element

wiring harness for interior

mating connector

1J0937733D Flat contact housing with contact locking mechanism 10 pin 1

blue

only to be used for: dark brown

light pink

orange

8D0937733D Flat contact housing with contact locking mechanism 10 pin 1

blue

only to be used for: orange

dark brown

light pink

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 E

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 EA

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 17-pin 1

Coupling element black

Wiring set for engine

mating connector

8E0972483 Flat contact housing with contact locking mechanism 17-pin 1

black

8E0972585 Flat contact housing with contact locking mechanism 17-pin X

black

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

Flat male connector with detent lug 0,63

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

relay plate 11 pin 2

Control unit for glow plug black

Possible single wire:

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

000979406E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact 9,5

000979500R Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

[Name] [QTY]

relay plate 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979212E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat connector/sleeve with retaining lug 6,3

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

000979405E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat connector/sleeve with retaining lug 6,3

[Name] [QTY]

relay plate 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979212E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat connector/sleeve with retaining lug 6,3

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979405E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat connector/sleeve with retaining lug 6,3

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 94-pin 2

Connection piece

Engine control unit

Possible single wire:

000979030E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 0,63

000979166E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,75

flat contact with retaining lug 0,63

000979166EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,75

flat contact with retaining lug 0,63

000979246E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,5

flat contact 1,5

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

7L0971904 Sealing pin 1,5 X

7L0971904A Sealing pin 0,63 X

8K0971904 Sealing pin 0,63 X

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 91 pin 2

LHD and RHD

Connection piece

Engine control unit

Possible single wire:

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979046E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve 1,2

000979054EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5

flat connector/sleeve 1,2

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979256E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,2

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

flat contact with retaining lug 2,5

2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

4H0971904 Sealing pin 0,35-0,75 QMM X

4H0971904A Sealing pin 1,0-1,5 QMM X

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 94-pin 1

Connection piece

Engine control unit

Possible single wire:

000979030E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 0,63

000979166E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,75

flat contact with retaining lug 0,63

000979166EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,75

flat contact with retaining lug 0,63

000979246E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,5

flat contact 1,5

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

7L0971904 Sealing pin 1,5 X

7L0971904A Sealing pin 0,63 X

8K0971904 Sealing pin 0,63 X

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

black

Connection piece

Control unit for impact sound

Possible single wire:

000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 0,5

4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979421EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

flat contact 4,8-6,3MM

[Name] [QTY]

fuse holder 1

[Name] [QTY]

relay plate 1

Possible single wire:

000979405E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X

-40C/+125C

with cable crosssection: 6,0

flat connector/sleeve with retaining lug 6,3

000979212E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

flat connector/sleeve with retaining lug 6,3

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact 2,8MM

[Name] [QTY]

Grommet 1

[Name]

cable shoe

No replacement part

[Name] [Note]

cable shoe 16MM/2

No replacement part

[Name] [Note] [QTY]

Flat contact housing 5 pin 2

Connection piece

Air mass meter

mating connector

4F0973805 Flat connector housing with contact locking mechanism 5 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

Connection piece

sensor for brake servo

mating connector

1K0973804 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 5 pin 2

Connection piece

Air mass meter

mating connector

6N0973805 Flat contact housing 5 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [QTY]

Protective cap 1

Connection piece

Air mass meter

[Name] [Note] [QTY]

Protective cap 4 pin 1

Connection piece

sensor for brake servo

[Name] [QTY]

Protective cap 2

Connection piece

Air mass meter

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 5 pin 2

Connection piece

Air mass meter

Possible single wire:

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin 1

Coupling element black

Wiring set for engine

mating connector

6X0973717 Flat contact housing with contact locking mechanism 14 pin 1

black

4H0973717 Flat contact housing with contact locking mechanism 14 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 E

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 EA

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 5 pin 2

Connection piece

Air mass meter

mating connector

6N0973805 Flat contact housing 5 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [QTY]

Protective cap 2

Connection piece

Air mass meter

[Name] [Note] [QTY]

Protective cap 5 pin 2

Connection piece

Air mass meter

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin 1

black

Coupling element

Wiring set for engine

mating connector

1J0973837 Flat contact housing with contact locking mechanism 14 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin 1

black

Coupling element

Wiring set for engine

mating connector

5Q0973737 Flat contact housing with contact locking mechanism 14 pin 1

Grey

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 E

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 EA

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat contact housing 8 pin 1

Coupling element black

Wiring set for engine

mating connector

8D0973834 Flat contact housing 8 pin 1

black

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing 4 pin 2

Connection piece black

Radiator fan

Replacements: 1K0906234B

mating connector

1J0906444 flat connector housing 4 pin 1

Possible single wire:

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979417E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact housing with retainer guide 9,5

000979500AA Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

single wiring seal 1K0 972 744

000979500AB Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

000979500AC Single lead with 1 silver- plated contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

[Name] [Note] [QTY]

Flat contact housing 4 pin 2

Connection piece black

Radiator fan

mating connector

1J0906444 flat connector housing 4 pin 1

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X

-40C/+125C

with cable crosssection: 6,0

flat contact with retaining lug 4,8

000979412E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X

-40C/+125C

with cable crosssection: 6,0

flat contact 9,5

000979417E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 9,5

000979500AA Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

single wiring seal 1K0 972 744

000979500AF Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

Connection piece black

Radiator fan

Replacements: 1K0906234B

mating connector

1J0906444 flat connector housing 4 pin 1

Possible single wire:

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979417E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact housing with retainer guide 9,5

000979500AA Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

single wiring seal 1K0 972 744

000979500AB Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

000979500AC Single lead with 1 silver- plated contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

[Name] [Note] [Model info] [QTY]

Flat contact housing 4 pin PR:1D2,1D6, 1

Connection piece black 1D8,1D9

Radiator fan

Replacements: 1K0906234B

mating connector

1J0906444 flat connector housing 4 pin 1

Possible single wire:

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979417E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact housing with retainer guide 9,5

000979500AA Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

single wiring seal 1K0 972 744

000979500AB Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

000979500AC Single lead with 1 silver- plated contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

[Name] [Note] [Model info] [QTY]

Flat contact housing 4 pin PR:1D0 1

Connection piece black

Radiator fan

Replacements: 1K0906234C

mating connector

1J0906444A flat connector housing 4 pin 1

black

Possible single wire:

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 0,5

4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979417E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

flat contact 6,0

9,5

000979500AA Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

single wiring seal 1K0 972 744

[Name] [Note] [QTY]

Flat contact housing 4 pin 2

Connection piece black

Radiator fan

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

000979412E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

000979500AF Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

Connection piece black

Radiator fan

Replacements: 1K0906234C

mating connector

1J0906444A flat connector housing 4 pin 1

black

Possible single wire:

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 0,5

4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979417E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

flat contact 6,0

9,5

000979500AA Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow

single wiring seal 1K0 972 744

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 1

black

Connection piece

Pressure sensor

A/C compressor

mating connector

1J0973803 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

Connection piece

Electric vacuum pump for brake

mating connector

8D0973822 Flat connector housing with contact locking mechanism 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin X

black

Connection piece

Pressure difference sender 2

Pressure sensor 1

A/C compressor

mating connector

1J0973803 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

black

Connection piece

sensor for brake servo

mating connector

1K0973804 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name]

Grommet

water box

No replacement part

[Name] [Note] [QTY]

relay box rhd 1

[Name] [Note] [QTY]

relay box lhd 1

[Name] [QTY]

Cover 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt 6X25 4

[Name] [Note]

ball head

see illustration, item: 951-040,7

[Name] [QTY]

Protective cap X

Connection piece

Pressure difference sender 1

Pressure sensor 1

A/C compressor

[Name] [QTY]

Protective cap 1

Connection piece

Pressure sensor

A/C compressor

[Name] [QTY]

bracket for connector housing 1

Lambda probe

[Name] [QTY]

bracket for connector housing 1

Lambda probe

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 1

bracket for connector housing

Lambda probe

[Name] [QTY]

Protective cap 1

Connection piece

sensor for brake servo

[Name] [QTY]

Protective cap 1

Connection piece

Pressure difference sender

[Name]

Grommet

water box

No replacement part

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

Connection piece

Additional coolant pump

mating connector

1J0973802 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 2 pin 1

Connection piece

Actuator for impact sound

mating connector

5Q0973802 flat connector housing 2 pin 1

black

Possible single wire:

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

Connection piece

Electric vacuum pump for brake

mating connector

8D0973822 Flat connector housing with contact locking mechanism 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

Connection piece

Temperature sensor

Cooler for coolant

mating connector

1J0973802 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

Connection piece

Secondary air pump

mating connector

1J0973852 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [QTY]

Bracket protective cover 1

Connection piece

Temperature sensor

Cooler for coolant

[Name] [QTY]

Bracket protective cover X

Connection piece

Additional coolant pump 1
