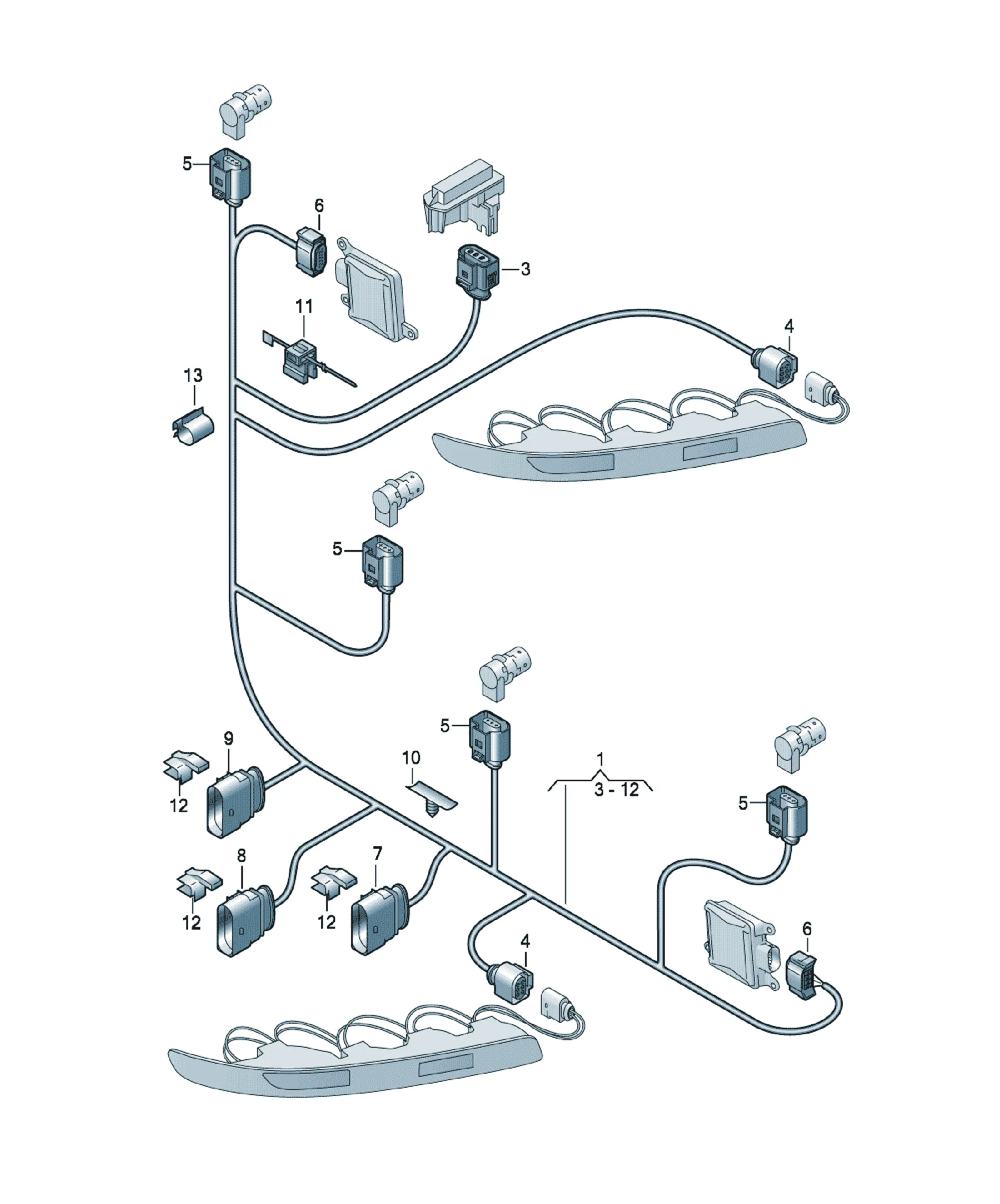

წინა ბამპერის ელექტროგაყვანილობა

[Name]

* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS

[Name] [Model info] [QTY]

Wiring set for bumper PR:A8S+VJ0, 1

VJ2,VJ3,VJ5,

2K6,2K7,2K8,

2K9

[Name] [Model info] [QTY]

Wiring set for bumper PR:A8U+VJ0, 1

VJ2,VJ3,VJ5,

2K6,2K7,2K8,

2K9

[Name] [Model info] [QTY]

Wiring set for bumper PR:A8S+VJ1, 1

VJ4,2K1,2K2

[Name] [Model info] [QTY]

Wiring set for bumper PR:A8U+VJ1, 1

VJ4,2K1,2K2

[Name] [Note] [QTY]

Bundling clip f wiring harness X

For hole/material thickness: 6,5/0,6-3MM

[Name] [Note] [QTY]

cable tie with terminal socket 4,6X200MM X

With side cable guide vertical

toothed quadrant outer

[Name] [QTY]

bracket for connector housing X

[Name] [QTY]

Clip X

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 1

black

Connection piece

Receiver for radio-wave clock

mating connector

1J0973803 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 6 pin 2

Connection piece black

Tail light

mating connector

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 5

black

Connection piece

Ultrasound sensor

Possible single wire:

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 2

black

Connection piece

Control unit for lane change assist

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin 1

Coupling element

wiring harness for interior

mating connector

1J0973737 Flat contact housing with contact locking mechanism 14 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 E

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 EA

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin 1

Coupling element brown

wiring harness for interior

mating connector

6X0973717A Flat contact housing with contact locking mechanism 14 pin 1

brown

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 E

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 EA

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin 1

Coupling element black

wiring harness for interior

mating connector

6X0973717 Flat contact housing with contact locking mechanism 14 pin 1

black

4H0973717 Flat contact housing with contact locking mechanism 14 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 E

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 EA

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5
