კომპრესორი

კონდიციონერის კომპრესორი

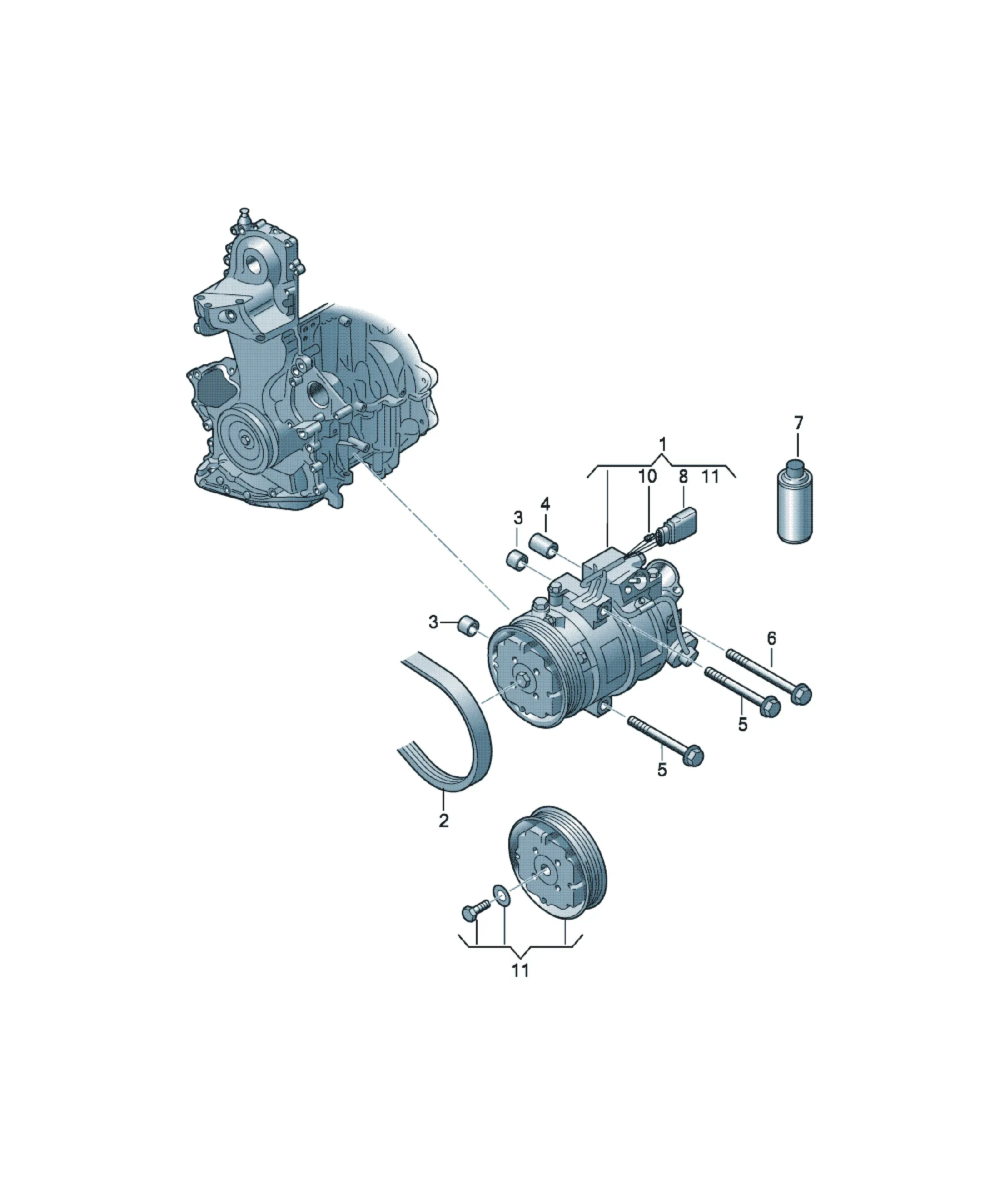

კვანძის სქემები

3 სქემა

ნაწილები

20 ნაწილი

5K0820803X შეთავაზებები

[Name] [Note] [QTY]
A/C compressor SANDEN 1
mating connector
1J0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
Old part
5K0820803 A/C compressor 1
Labelled with part number
5K0820803A A/C compressor 1
Labelled with part number
5K0820803C A/C compressor 1
Labelled with part number
5N0820803 A/C compressor 1
Labelled with part number
5N0820803A A/C compressor 1
Labelled with part number
5N0820803C A/C compressor 1
Labelled with part number
5N0820803E A/C compressor 1
Labelled with part number
5N0820803F A/C compressor 1
Labelled with part number
5N0820803H A/C compressor 1
Labelled with part number
1K0820859T A/C compressor 1
Labelled with part number
5K0820803 შეთავაზებები

[Name] [QTY]
A/C compressor 1
Exchange program parts: 5K0820803 X
6Q0820808G შეთავაზებები

[Name] [Note] [QTY]
A/C compressor DENSO 1
Exchange program parts: 6Q0820808GX
000979132E შეთავაზებები

[Name] [Note] [QTY]
1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 1
Items supplied
Single wire 5
357972740D შეთავაზებები

[Name] [Note] [QTY]
single wiring seal 3,9X7,8 X
Grey
for wire cross section: 0,5-1,0
6Q0898810 შეთავაზებები

[Name] [Note] [QTY]
Repair set for belt pulley DENSO 1
repair set
pulley 1
Damping element 1
Hexagon bolt 1
[Name]
No replacement part
[Name] [Note]
see illustration, item: 903-010,9
[Name] [Note]
see illustration: 903-050
03L260817 შეთავაზებები

[Name] [Note] [QTY]
Centre sleeve 11,15X6,5 1
03D260817A შეთავაზებები

[Name] [QTY]
Centre sleeve 2
03D103232B შეთავაზებები

[Name] [Note] [QTY]
spacer sleeve 27X20X8,5MM 1
03L260817 შეთავაზებები

[Name] [Note] [QTY]
Centre sleeve 11,15X6,5 1
N90707502 შეთავაზებები

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X100X41 1
N10562701 შეთავაზებები

[Name] [Note] [QTY]
bolt, hex. hd. with shoulder and shaft BM8X106X41-TC- 2
TM
N90707502 შეთავაზებები

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X100X41 1
N10565002 შეთავაზებები

[Name] [Note] [QTY]
bolt, hex. hd. with shoulder and shaft M8X121X41 1
G052300A2 შეთავაზებები

[Name] [Note] [QTY]
Coolant compressor oil 250ML 1
for refrigerant: R134A
G052300A2 შეთავაზებები

[Name] [Note] [QTY]
Coolant compressor oil 250ML 1
1J0973802 შეთავაზებები

[Name] [Note] [QTY]
Flat connector housing with contact locking mechanism 2 pin 1
Possible single wire: 000 979 132 E X
000 979 132 EA X
mating connector
1J0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
8K0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 1,5
000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 1,5
000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
Flat male connector with detent lug 1,5
000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
Flat male connector with detent lug 1,5
000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
Flat male connector with detent lug 1,5
