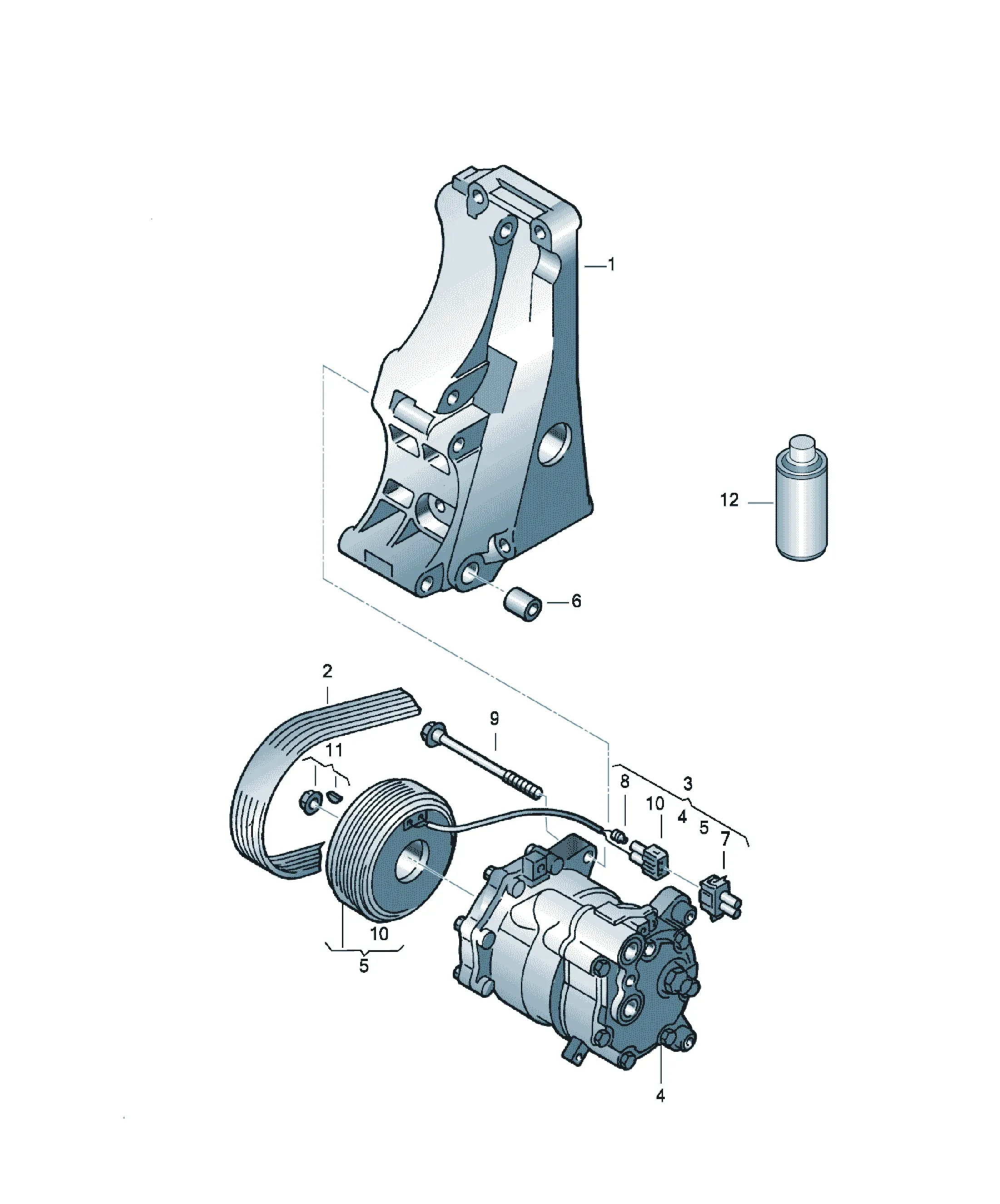

კონდიციონერის კომპრესორი

კვანძის სქემები

3 სქემა

ნაწილები

24 ნაწილი

Fastening bolt
N10665601 შეთავაზებები

[Name] [Note] [Model info] [QTY]
hexagon head bolt (combi) M10X60-ITR BTS,CNKA 1
Drive belt tensioner assembly
03C145299C შეთავაზებები

[Name] [Model info] [QTY]
Belt tensioner damper BTS,CNKA 1
Винт с 6-гр.головк.с буртиком
N0195315 შეთავაზებები

[Name] [Note] [Model info] [QTY]
Hex collared bolt M8X40 BTS,CNKA 1
[Name]
No replacement part
6QD260885 შეთავაზებები

[Name] [Model info] [QTY]
Bracket for compressor BTS,CNKA 1
[Name] [Note]
see illustration: 903-025
1J0973802 შეთავაზებები

[Name] [Note] [QTY]
Flat connector housing with contact locking mechanism 2 pin 1
Possible single wire: 000 979 132 E X
000 979 132 EA X
mating connector
1J0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
8K0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 1,5
000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 1,5
000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
Flat male connector with detent lug 1,5
000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
Flat male connector with detent lug 1,5
000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
Flat male connector with detent lug 1,5
G052300A2 შეთავაზებები

[Name] [Note] [QTY]
Coolant compressor oil 250ML 1
DENSO
G052300A2 შეთავაზებები

[Name] [Note] [QTY]
Coolant compressor oil 250ML 1
[Name] [Note] [Model info]
see illustration: 903-045 BTS,CNKA
903-070 CEKA
[Name] [Note]
see illustration: 903-025
[Name] [Note]
see illustration: 903-035
6Q0820808F შეთავაზებები

[Name] [Note] [QTY]
A/C compressor DENSO 1
Exchange program parts: 6Q0820808FX
1K0820859T შეთავაზებები

[Name] [Note] [QTY]
A/C compressor DENSO 1
Exchange program parts: 1K0820859TX
1K0820859TX შეთავაზებები

[Name] [Note] [QTY]
A/C compressor DENSO 1
Old part
8J0260805 A/C compressor 1
Labelled with part number
5N0820803 A/C compressor 1
Labelled with part number
5N0820803A A/C compressor 1
Labelled with part number
1K0820859J A/C compressor 1
Labelled with part number
1K0820859N A/C compressor 1
Labelled with part number
1K0820859T A/C compressor 1
Labelled with part number
6Q0820808FX შეთავაზებები

[Name] [Note] [QTY]
A/C compressor DENSO 1
Old part
6Q0820803J A/C compressor 1
Labelled with part number
6Q0820803P A/C compressor 1
Labelled with part number
6Q0820803R A/C compressor 1
Labelled with part number
6Q0820808 A/C compressor 1
Labelled with part number
6Q0820808B A/C compressor 1
Labelled with part number
6Q0820808D A/C compressor 1
Labelled with part number
6Q0820808F A/C compressor 1
Labelled with part number
[Name]
No replacement part
[Name]
No replacement part
03L260817 შეთავაზებები

[Name] [Note] [QTY]
Centre sleeve 11,15X6,5 2
000979132E შეთავაზებები

[Name] [Note] [QTY]
1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 2
Items supplied
Single wire 5
000979132E შეთავაზებები

[Name] [Note] [QTY]
1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 1
Items supplied
Single wire 5
[Name]
No replacement part
N90707502 შეთავაზებები

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X100X41 X
N10565002 შეთავაზებები

[Name] [Note] [QTY]
bolt, hex. hd. with shoulder and shaft M8X121X41 3
